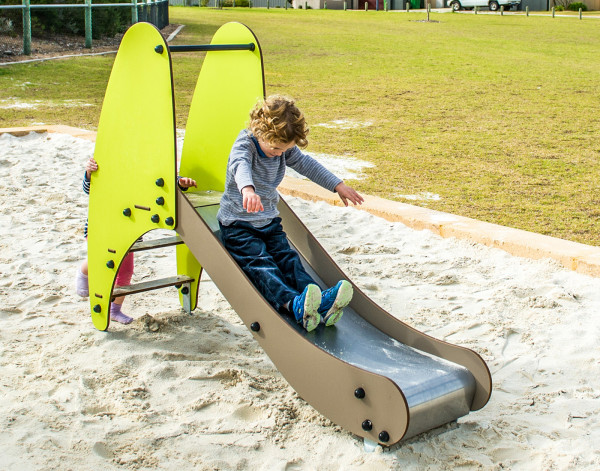

Slides - Mini Slide - stainless steel - J1012®

We have created the reference J1012® in our "Slides" range. This module is accessible from 1 year. It can accommodate up to 5 users.

The size of the module is: 1.75 m length, 0.46 m width, 1.30 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

J1012-P®

J1012-GA®

3 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	1 - 5
Number of users:	5 users
FFH :	1.00 m

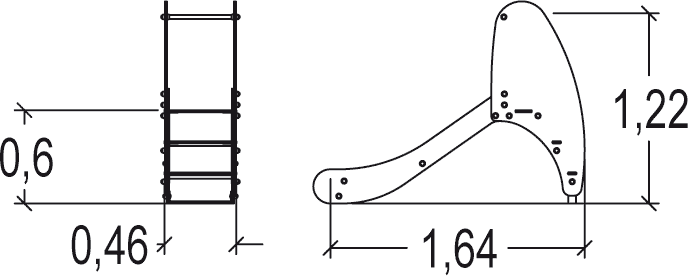

Size:	1.75 x 0.46 x 1.30 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.10 m3

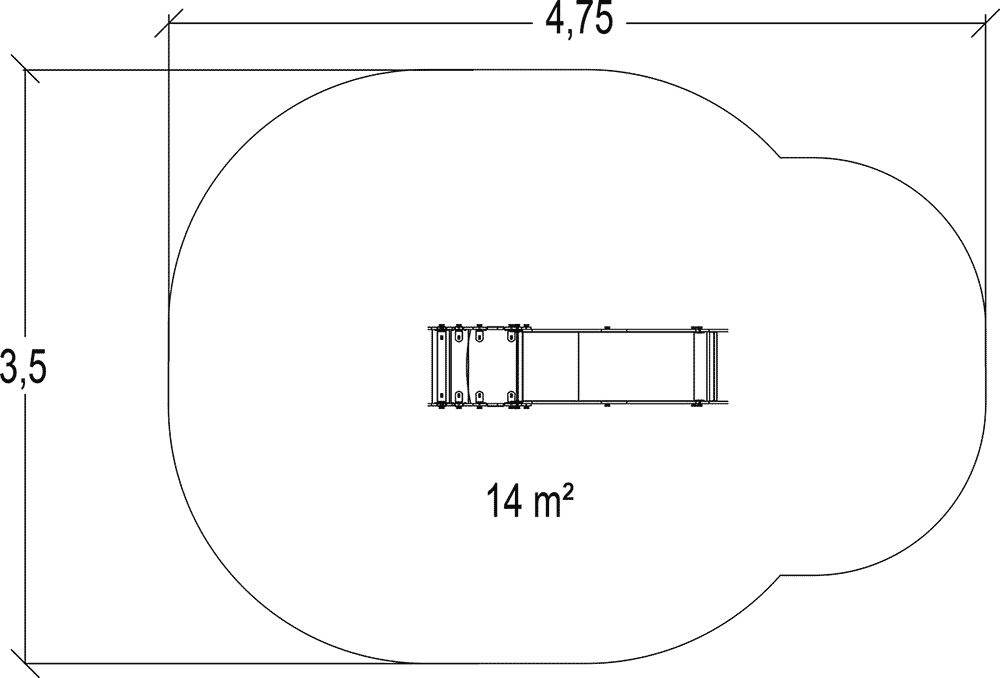

Surface:	14.00 m2
Total weight:	49.09 kg
Weight of the heaviest element:	10.17 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

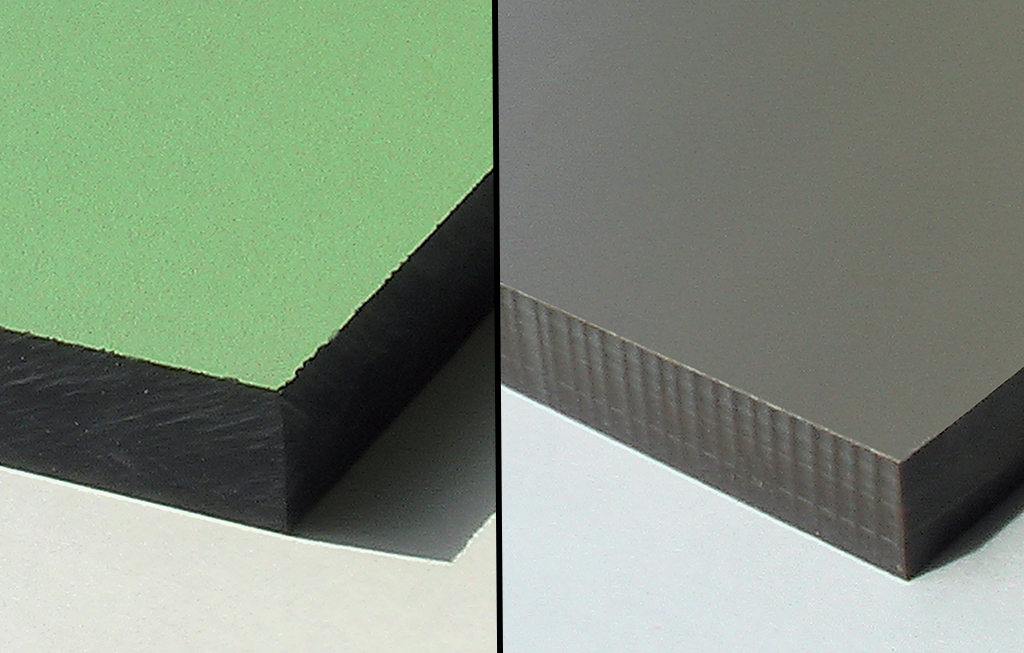

The coloured panels and the steps are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece. The sides are made from a 13mm thick compact material... (HPL). Read more
