Slides - Mini Slide - polyester - J1012-P®

We have created the reference J1012-P® in our "Slides" range. This module is accessible from 1 year. It can accommodate up to 5 users.

The size of the module is: 1.75 m length, 0.46 m width, 1.30 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

J1012-GA®

J1012®

3 play functions

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	1 - 5
Number of users:	5 users
FFH :	1.00 m
Size:	1.75 x 0.46 x 1.30 m

Equipment installation

Number of installers:	2

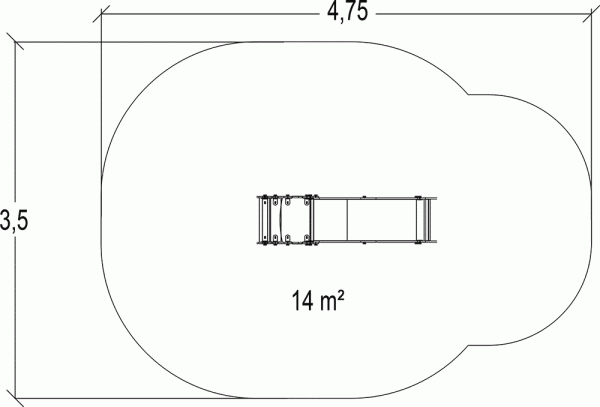

Surface:	14.00 m2
Total weight:	45.95 kg
Weight of the heaviest element:	7.90 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The sliding surface is made of polyester.

The protective bar is made of PVC.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
