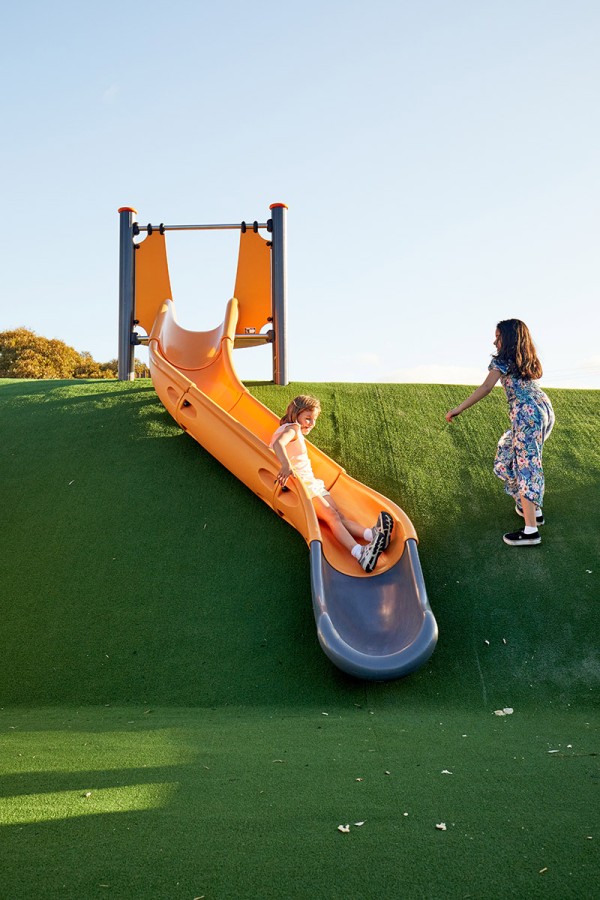

Slides - Kayak Embankment Slide - J1122

We have created the reference J1122 in our "Slides" range. This module is accessible from 2 years. It can accommodate up to 3 users.

The size of the module is: 5.12 m length, 2.05 m width, 4.30 m. high. The free fall height (FFH) is 1.00 m.

2 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Specifications

Age range:	2+
Number of users:	3 users
FFH :	1.00 m
Size:	5.12 x 2.05 x 4.30 m

Equipment installation

Number of installers:	2
Installation time:	06:00:00
Concrete volume:	0.30 m3
Surface:	22.00 m2
Total weight:	192.16 kg
Weight of the heaviest element:	20.20 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The platform is 21mm plywood panels made up of layers of birch. The surface is coated with a film of non-slip phenolic resin.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

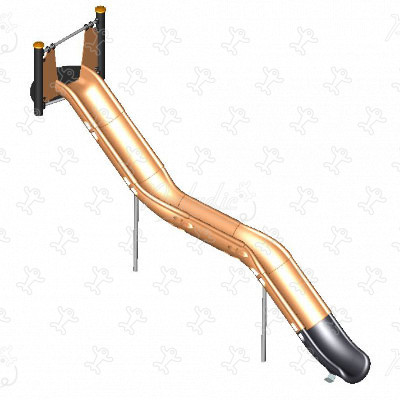

The Kayak slide is made of rotomoulded polyethylene.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
