Tubular Embankment Slide
J1130
We have created the reference J1130 in our "Slides" range. This module is accessible from 2 years. It can accommodate up to 4 users.

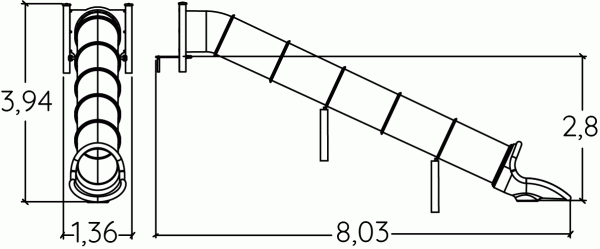

The size of the module is: 8.03 m length, 1.36 m width, 3.94 m. high. The free fall height (FFH) is 1.00 m.
| Age range: | 2+ |
| Number of users: | 4 users |
| FFH : | 1.00 m |
| Size: | 8.03 x 1.36 x 3.94 m |
| Number of installers: | 2 |
| Installation time: | 05:00:00 |
| Concrete volume: | 0.20 m3 |
| Surface: | 26.00 m2 |
| Total weight: | 252.65 kg |
| Weight of the heaviest element: | 41.00 kg |
Repairability
9.29 /10
The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The platform is 21mm plywood panels made up of layers of birch. The surface is coated with a film of non-slip phenolic resin.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

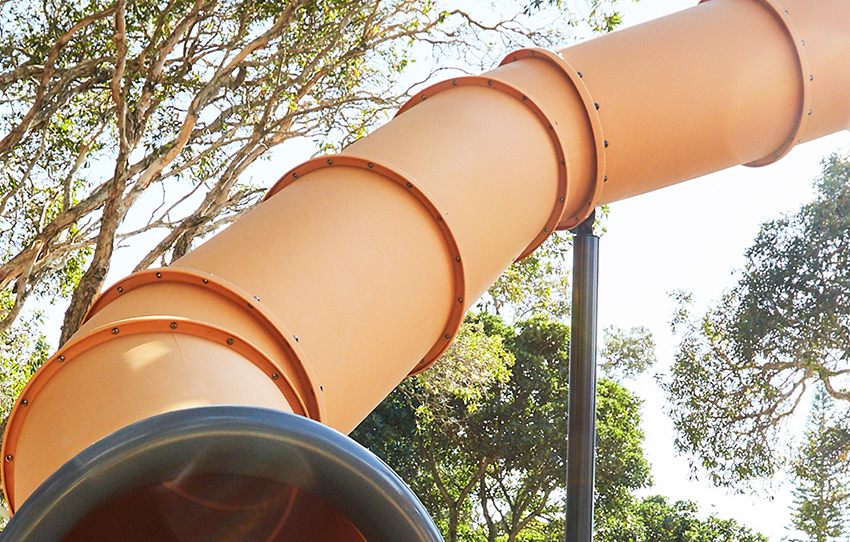

The slide is made of rotomoulded polyethylene.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
