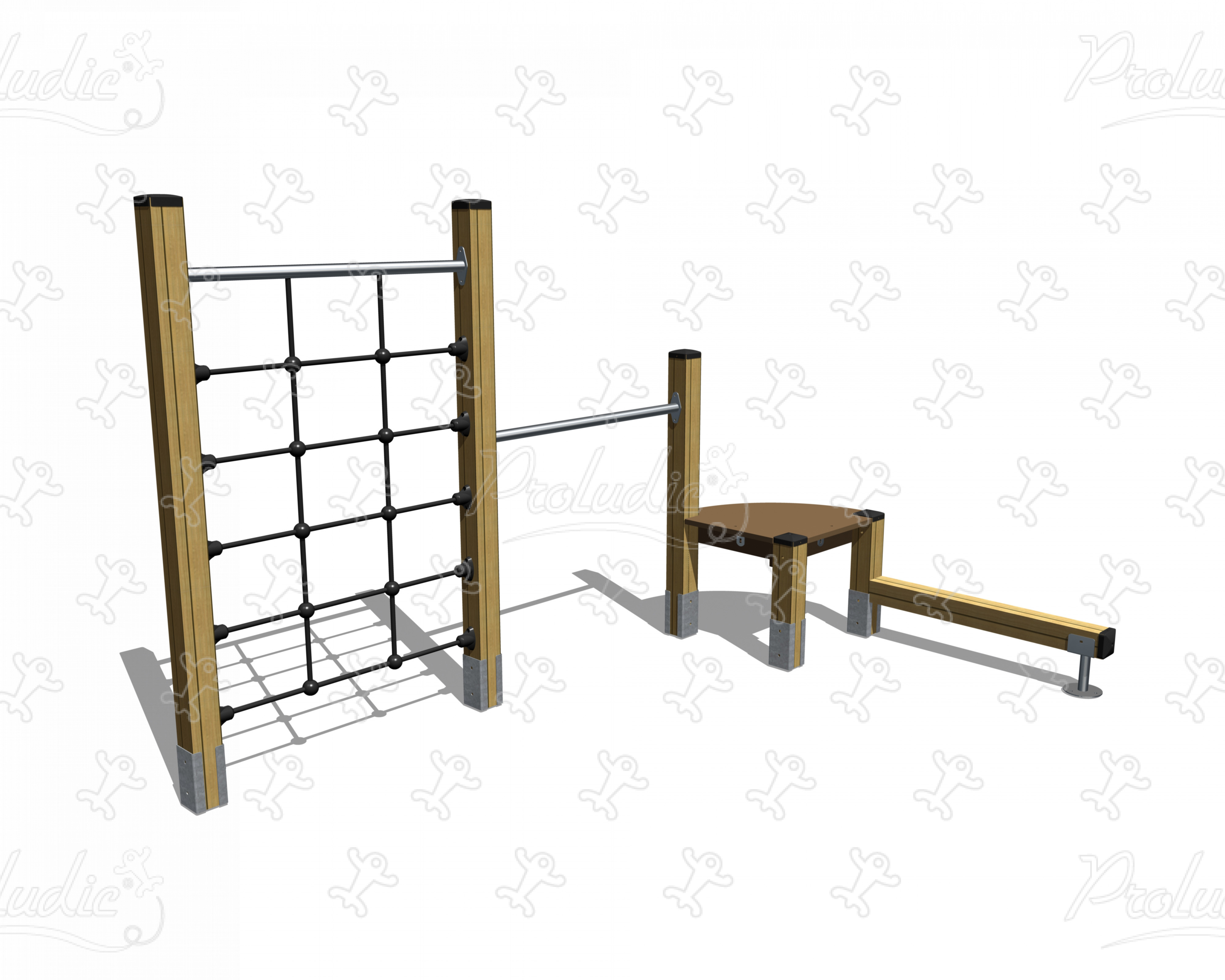

Climbing equipment - J1661

We have created the reference J1661 in our "Climbing equipment" range. This module is accessible from 2 years. It can accommodate up to 6 users.

The size of the module is: 2.87 m length, 1.67 m width, 1.80 m. high. The free fall height (FFH) is 1.60 m.

Other finishes available

J1661-M

4 play functions

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x2

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range:	2+
Number of users:	6 users
FFH :	1.60 m
Size:	2.87 x 1.67 x 1.80 m

Equipment installation

Number of installers:	2
Installation time:	02:30:00
Concrete volume:	0.20 m3

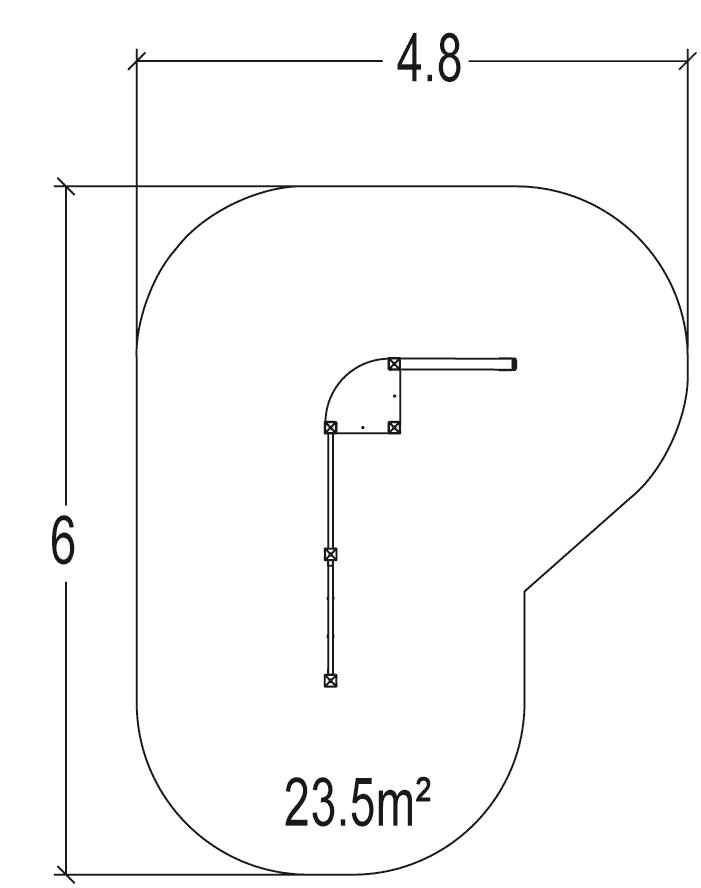

Surface:	23.50 m2
Total weight:	92.52 kg
Weight of the heaviest element:	9.21 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
