Climbing equipment - J1664-M

We have created the reference J1664-M in our "Climbing equipment" range. This module is accessible from 2 years. It can accommodate up to 11 users.

The size of the module is: 4.42 m length, 3.42 m width, 1.80 m. high. The free fall height (FFH) is 1.70 m.

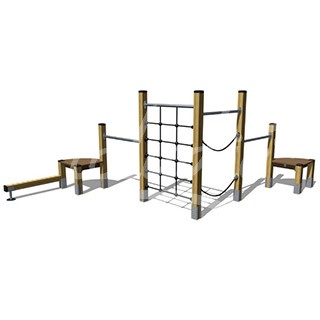

Other finishes available

J1664

11 play functions

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Hanging x3

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Balancing x2

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x3

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	2+
Number of users:	11 users
FFH :	1.70 m
Size:	4.42 x 3.42 x 1.80 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00
Concrete volume:	0.30 m3

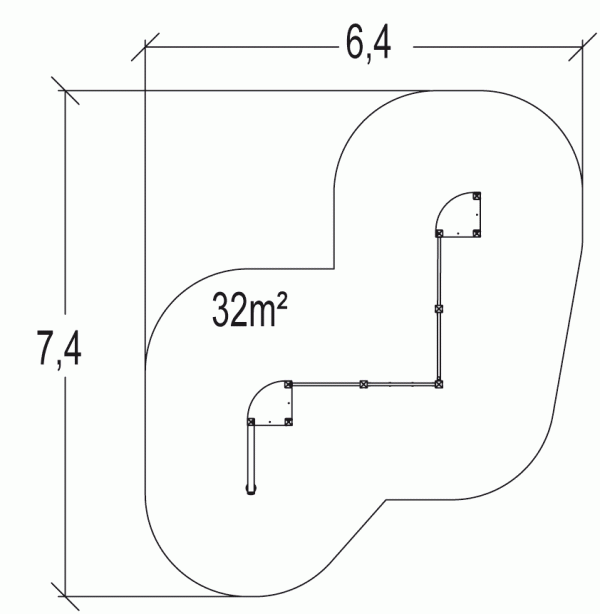

Surface:	32.00 m2
Total weight:	142.62 kg
Weight of the heaviest element:	15.78 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The climbing holds are made of polyamide for its strength and rigidity.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
