Aquatica - Barge - J1951

We have created the reference J1951 in our "Aquatica" range. This module is accessible from 3 years. It can accommodate up to 17 users.

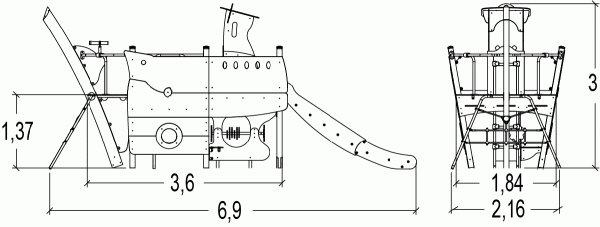

The size of the module is: 6.90 m length, 2.16 m width, 3.00 m. high. The free fall height (FFH) is 1.37 m.

20 play functions

Role play x2

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x3

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Hiding x2

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Tactile stimulation x3

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x2

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Specifications

Age range:	3+
Number of users:	17 users
FFH :	1.37 m
Size:	6.90 x 2.16 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	32:00:00
Concrete volume:	0.50 m3

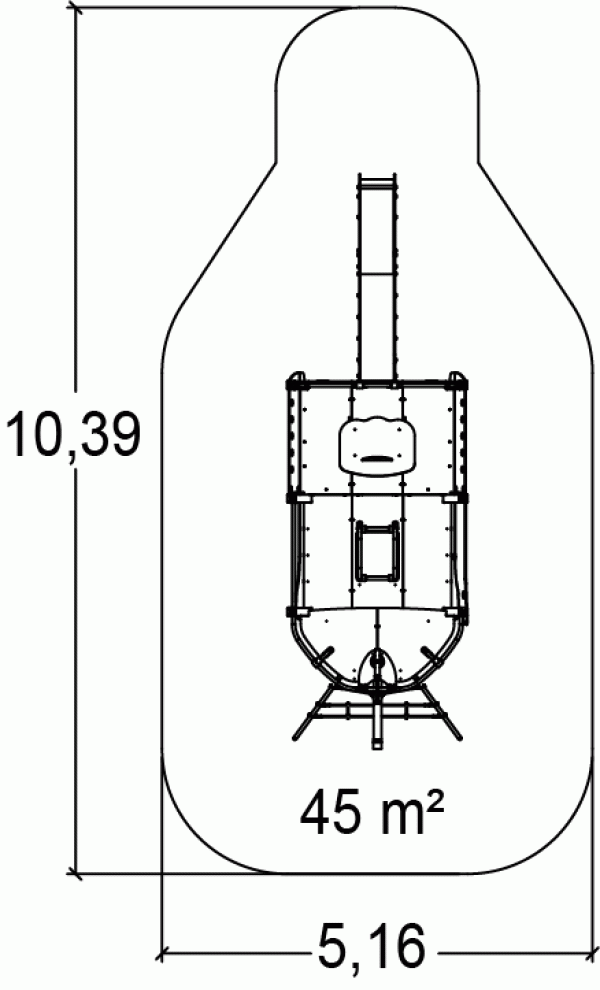

Surface:	45.00 m2
Total weight:	764.43 kg
Weight of the heaviest element:	33.60 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The shaped beam (95mm thick, 200mm wide and 3.2m high) is made of oven-cured laminated wood with a surface coating; It gives the structure considerable strength.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
