Playhouses - Elf Hamlet - J234

We have created the reference J234 in our "Playhouses" range. This module is accessible from 1 year. It can accommodate up to 18 users.

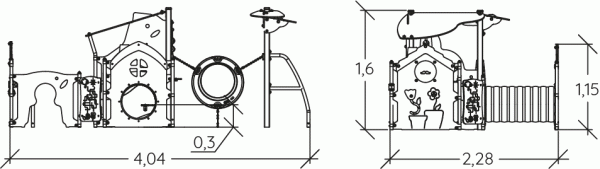

The size of the module is: 4.04 m length, 2.28 m width, 1.60 m. high. The free fall height (FFH) is 0.60 m.

25 play functions

Role play x2

Role play promotes the child's intellectual and social skills.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x2

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x3

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x2

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Thinking x2

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x4

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x3

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	1+
Number of users:	18 users
FFH :	0.60 m
Size:	4.04 x 2.28 x 1.60 m

Equipment installation

Number of installers:	2
Installation time:	06:00:00
Concrete volume:	0.40 m3

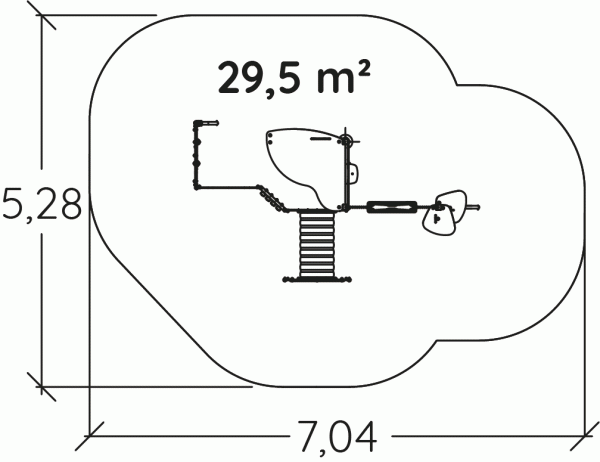

Surface:	29.50 m2
Total weight:	212.67 kg
Weight of the heaviest element:	16.07 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tunnel is made of 100% recycled rotomolded polyethylene, 45cm in diameter (RAL 9005).

The rubber ring is a monobloc element made of polyethylene with an outside diameter of 70cm and inside diameter of 45cm.

Plastic parts are made of injected polyamide.

The abacus spheres are made of polycarbonate sheets.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
