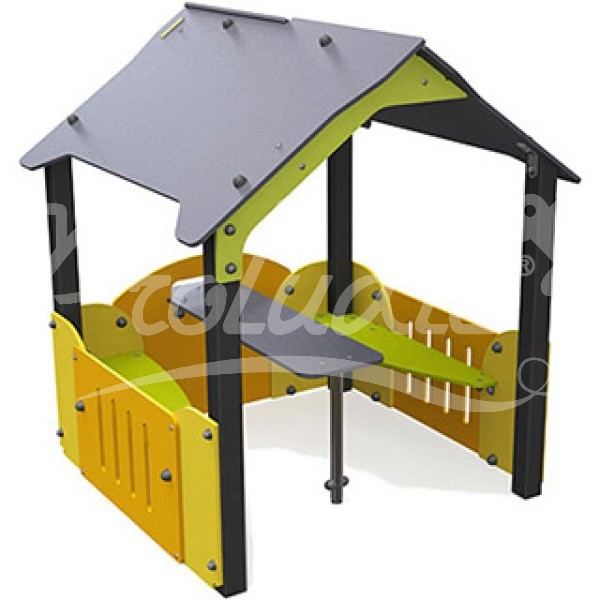

Playhouses - Furnished Cubby House - J237®

We have created the reference J237® in our "Playhouses" range. This module is accessible from 1 year. It can accommodate up to 10 users.

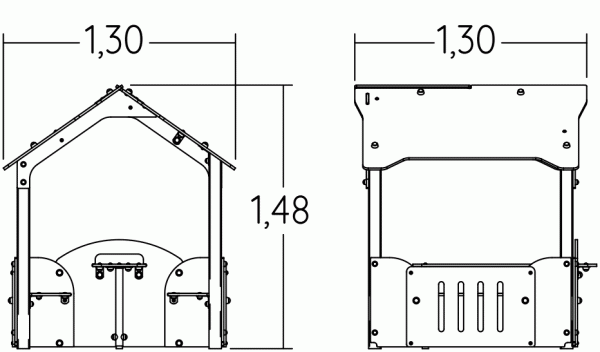

The size of the module is: 1.36 m length, 1.30 m width, 1.48 m. high. The free fall height (FFH) is 0.60 m.

4 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Specifications

Age range:	1+
Number of users:	10 users
FFH :	0.60 m
Size:	1.36 x 1.30 x 1.48 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.14 m3

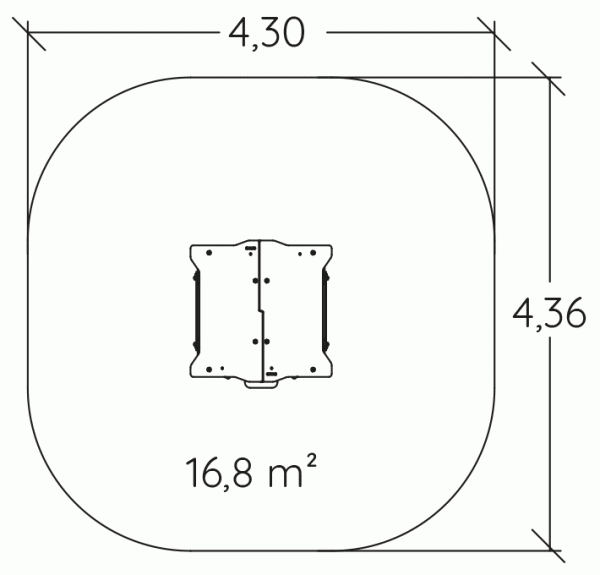

Surface:	17.00 m2
Total weight:	129.68 kg
Weight of the heaviest element:	15.68 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
