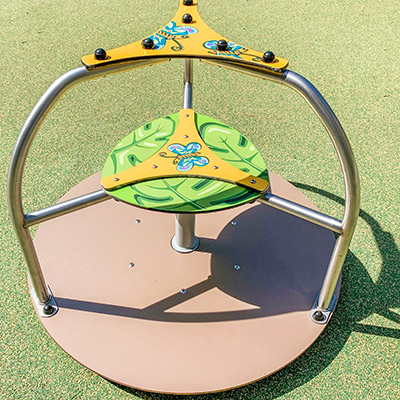

Amazone finish - Tournicolo - J2401-GA

We have created the reference J2401-GA in our "Amazone finish" range. This module is accessible from 3 years. It can accommodate up to 6 users.

The size of the module is: 1.20 m length, 1.20 m width, 0.95 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

J2401-GG

J2401

3 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Rotating x1

Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

Specifications

Age range:	3+
Number of users:	6 users
FFH :	1.00 m
Size:	1.20 x 1.20 x 0.95 m

Equipment installation

Number of installers:	2
Installation time:	01:45:00
Concrete volume:	0.15 m3
Surface:	23.00 m2
Total weight:	93.00 kg
Weight of the heaviest element:	82.11 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

JPEG Image

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
