Rotating equipment - Fun Disc - J2407

We have created the reference J2407 in our "Rotating equipment" range. This module is accessible from 3 years. It can accommodate up to 8 users.

The size of the module is: 1.50 m length, 1.50 m width, 0.62 m. high. The free fall height (FFH) is 1.00 m.

3 play functions

balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
rotating
Rotating x1
Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

Specifications

Age range: 3+
Number of users: 8 users
FFH : 1.00 m
Size: 1.50 x 1.50 x 0.62 m

Equipment installation

Number of installers: 2
Installation time: 01:45:00
Concrete volume: 0.11 m3

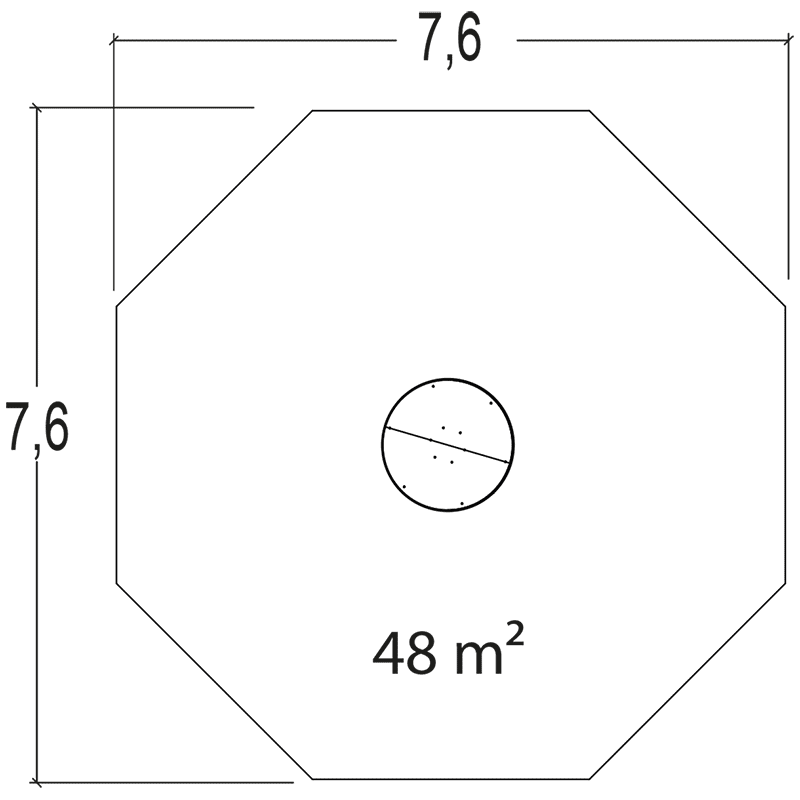

Surface: 48.00 m2
Total weight: 156.29 kg
Weight of the heaviest element: 32.58 kg

Environmental Indicators

Repairability

Repairability

9.06 /10

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
Video - Rotating equipment - Fun Disc - J2407
Video - Rotating equipment - Fun Disc - J2407

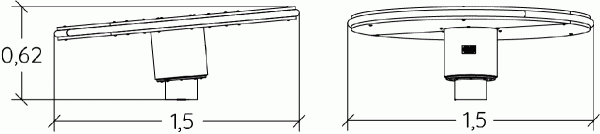

Side view
Side view
View from above
View from above

Materials

The platform floor

The platform floor is made from a 18mm thick, non-slip polyethylene material.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
