Ixo - J2583-M

We have created the reference J2583-M in our "Ixo" range. This module is accessible from 6 years. It can accommodate up to 18 users.

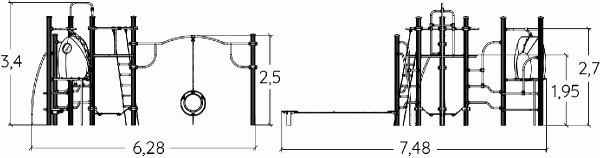

The size of the module is: 7.47 m length, 6.28 m width, 3.40 m. high. The free fall height (FFH) is 2.20 m.

17 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x3

Resting allows the child to recover from their exertions, and also improve their concentration.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x4

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x2

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Specifications

Age range:	6+
Number of users:	18 users
FFH :	2.20 m
Size:	7.47 x 6.28 x 3.40 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	1.10 m3

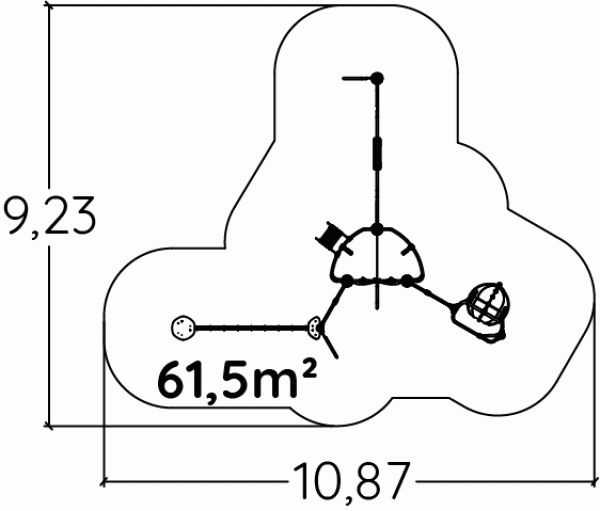

Surface:	61.50 m2
Total weight:	355.51 kg
Weight of the heaviest element:	65.98 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The rubber ring is a monobloc element made of polyethylene with an outside diameter of 70cm and inside diameter of 45cm.

The pod is made of 4mm thick polyester. It is a durable material and this ensures its resistance to weathering and UV radiation.

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
