Ixo - J2584-M

We have created the reference J2584-M in our "Ixo" range. This module is accessible from 8 years. It can accommodate up to 14 users.

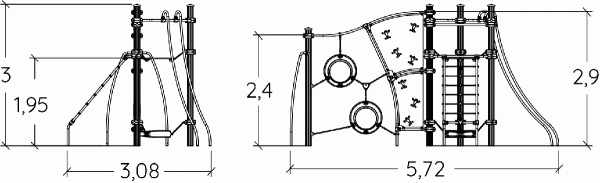

The size of the module is: 5.72 m length, 3.08 m width, 3.00 m. high. The free fall height (FFH) is 2.90 m.

10 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x3

Resting allows the child to recover from their exertions, and also improve their concentration.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	8+
Number of users:	14 users
FFH :	2.90 m
Size:	5.72 x 3.08 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	06:00:00
Concrete volume:	0.60 m3

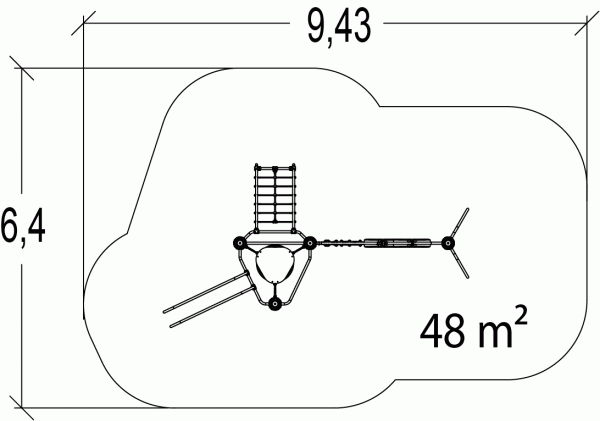

Surface:	48.00 m2
Total weight:	190.05 kg
Weight of the heaviest element:	19.92 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter rope is made of galvanised steel cable covered with polyester. The net fittings are made of polyamide and used to link three cords together.
