Drawbridge
J2605
J2605

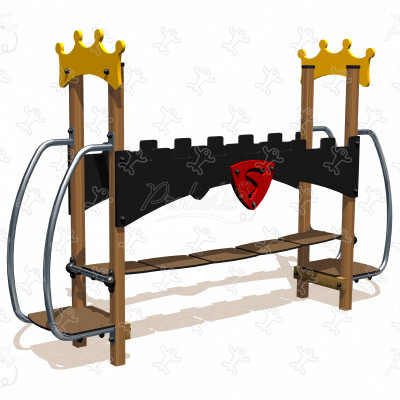

We have created the reference J2605 in our "Medieval" range. This module is accessible from 2 years. It can accommodate up to 6 users.

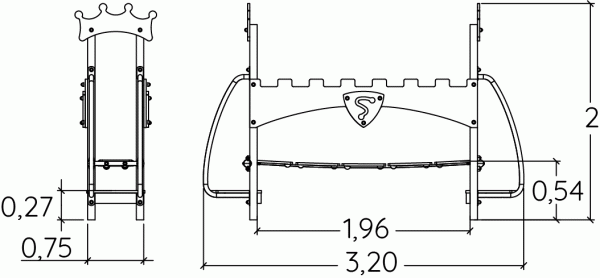

The size of the module is: 3.20 m length, 0.75 m width, 2.00 m. high. The free fall height (FFH) is 0.60 m.
| Age range: | 2 - 6 |
| Number of users: | 6 users |
| FFH : | 0.60 m |
| Size: | 3.20 x 0.75 x 2.00 m |
| Number of installers: | 2 |
| Installation time: | 03:00:00 |
| Concrete volume: | 0.10 m3 |

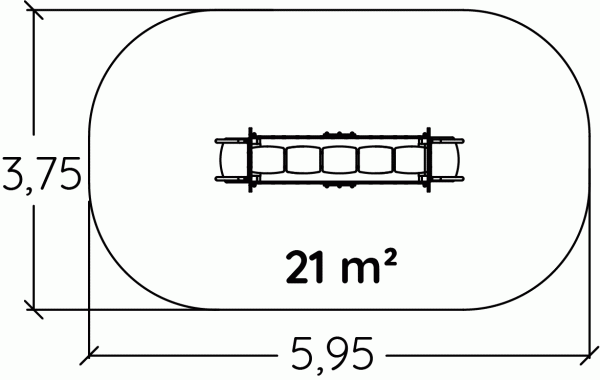

| Surface: | 21.00 m2 |
| Total weight: | 100.78 kg |
| Weight of the heaviest element: | 21.36 kg |
Repairability
9.48 /10

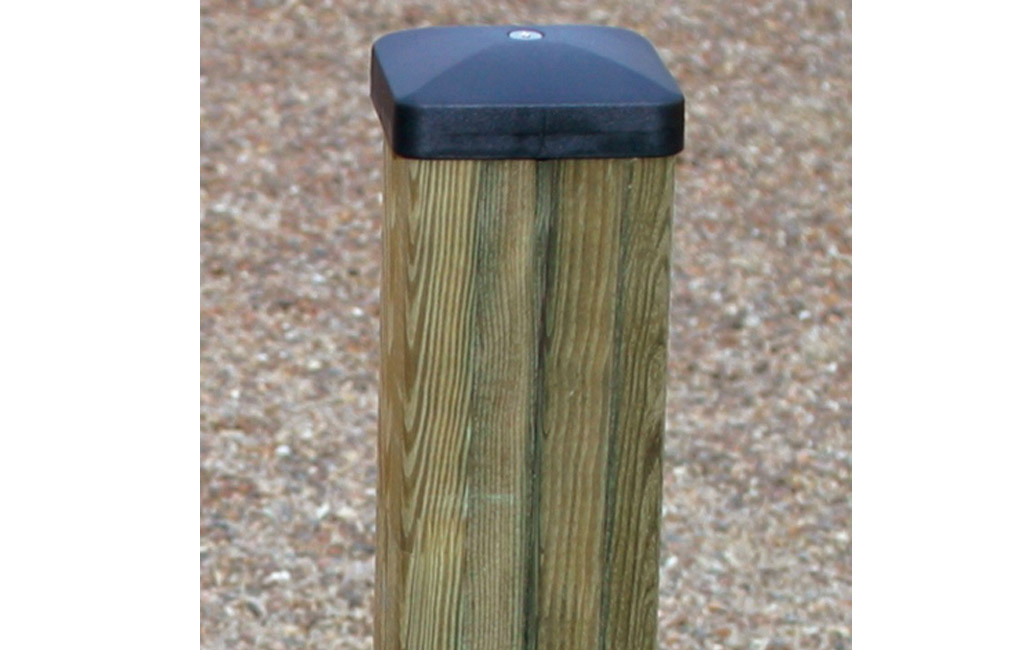

The vertical 68mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

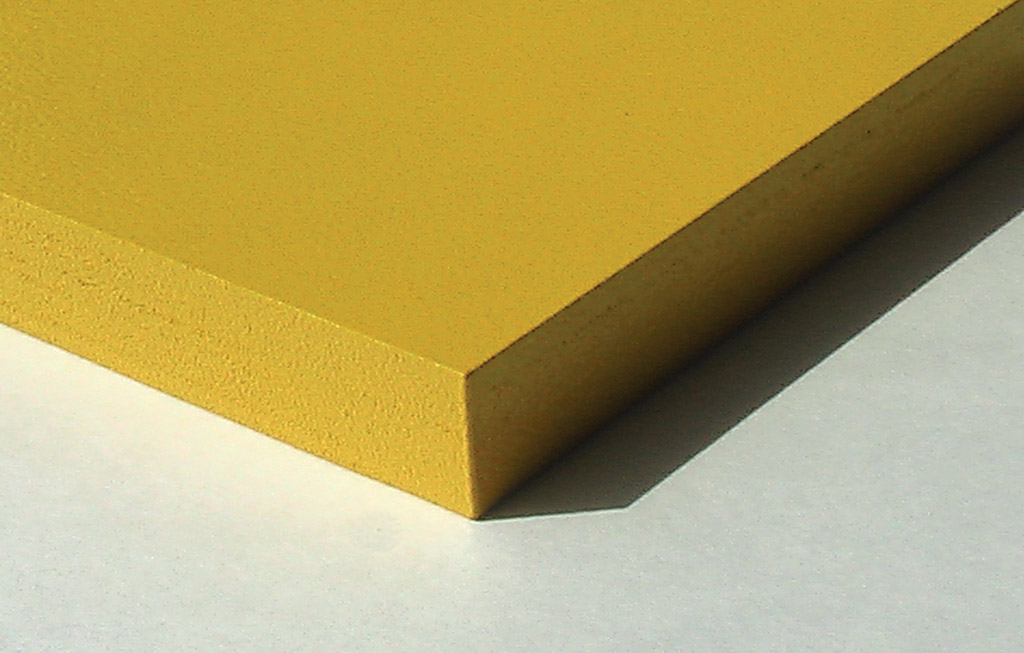

The lacquered panels are made from very high quality plywood 22mm thick, made of alternate layers of thin birch, which offers longevity and an exceptional mechanical... strangth. The colours are applied by electrostatic spraying of two-component polyurethane lacquer that is free of heavy metals, to ensure high levels of resistance to potentially aggressive chemicals such as anti-graffiti cleaning products. Read more
The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
