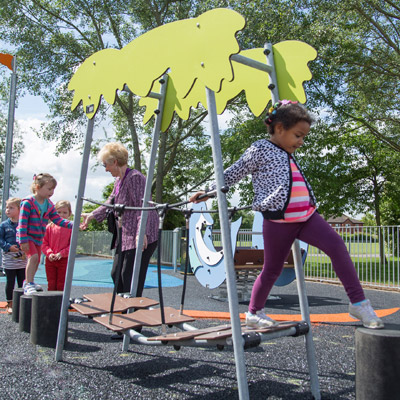

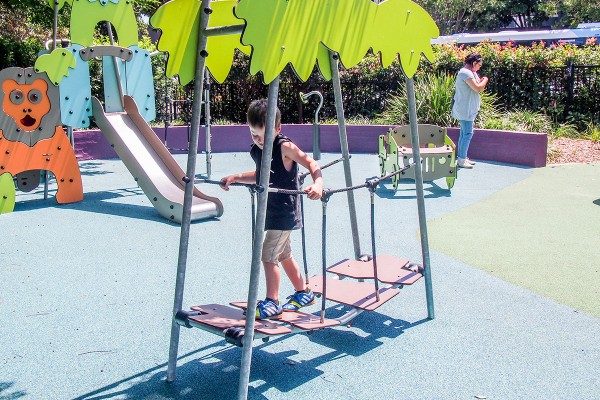

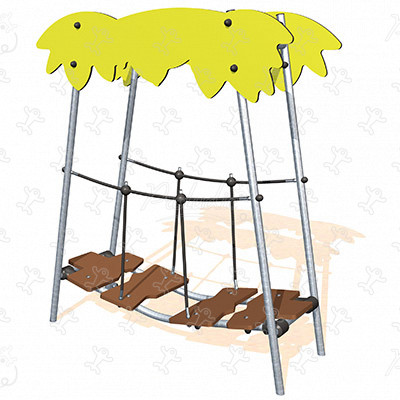

Adventure - Jeep - J2613

We have created the reference J2613 in our "Adventure" range. This module is accessible from 2 years. It can accommodate up to 4 users.

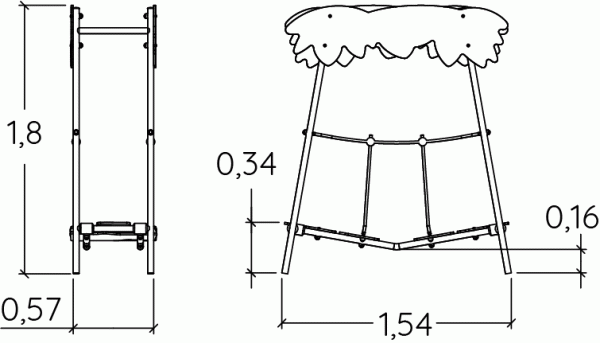

The size of the module is: 1.54 m length, 0.57 m width, 1.80 m. high. The free fall height (FFH) is 0.90 m.

3 play functions

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range:	2 - 6
Number of users:	4 users
FFH :	0.90 m
Size:	1.54 x 0.57 x 1.80 m

Equipment installation

Number of installers:	2
Installation time:	01:30:00
Concrete volume:	0.11 m3
Surface:	14.50 m2
Total weight:	69.63 kg
Weight of the heaviest element:	12.14 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

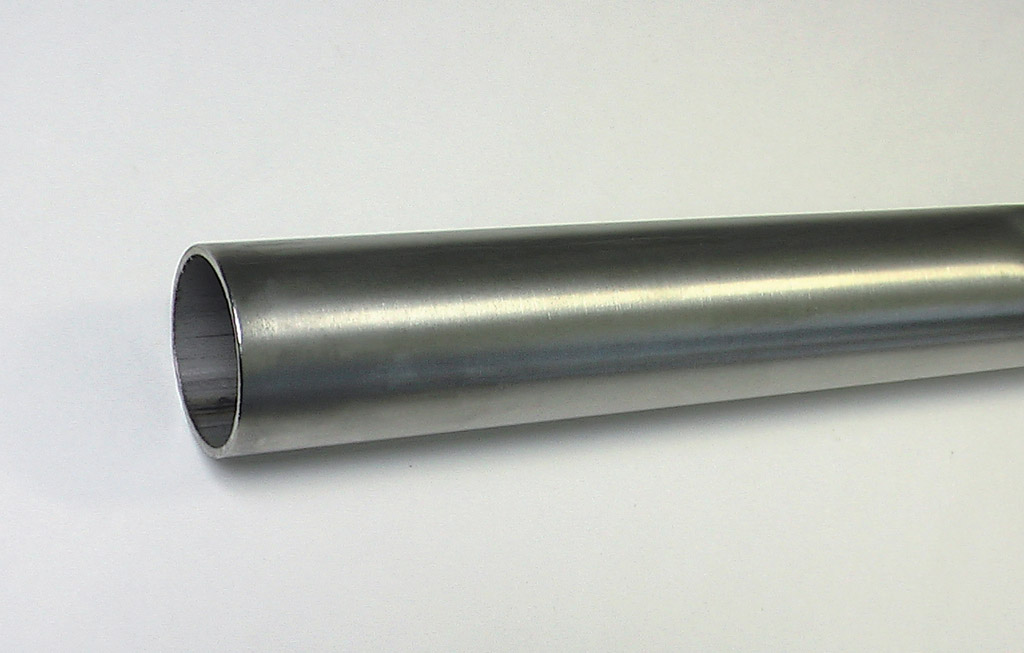

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
