City - Engine - J2617

We have created the reference J2617 in our "City" range. This module is accessible from 2 years. It can accommodate up to 6 users.

The size of the module is: 2.00 m length, 0.80 m width, 1.18 m. high. The free fall height (FFH) is 0.86 m.

5 play functions

role play
Role play x1
Role play promotes the child's intellectual and social skills.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
resting
Resting x1
Resting allows the child to recover from their exertions, and also improve their concentration.
crawling
Crawling x1
Crawling is a fun exercise that allows young children to become aware of their body in a small space.
hiding
Hiding x1
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
Show more

Specifications

Age range: 2 - 6
Number of users: 6 users
FFH : 0.86 m
Size: 2.00 x 0.80 x 1.18 m

Equipment installation

Number of installers: 2
Surface: 17.00 m2
Total weight: 89.62 kg
Weight of the heaviest element: 9.41 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

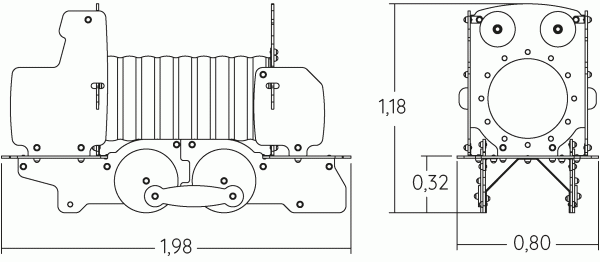

Side view
Side view

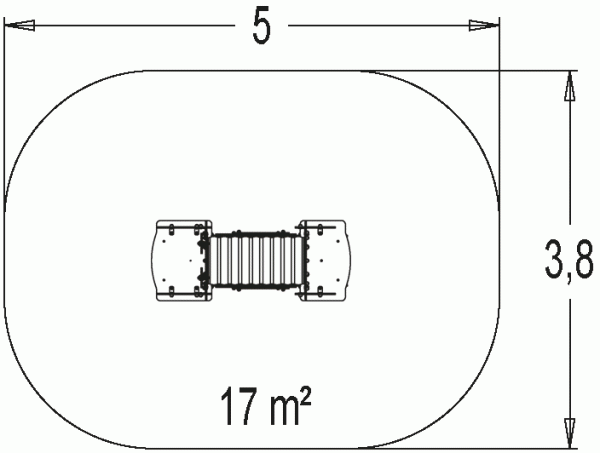

View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tunnel

The tunnel is made of 100% recycled rotomolded polyethylene, 76cm in diameter (RAL 9005).

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
