Adventure - Tractor - J2623®

We have created the reference J2623® in our "Adventure" range. This module is accessible from 2 years. It can accommodate up to 5 users.

The size of the module is: 1.56 m length, 1.98 m width, 0.77 m. high. The free fall height (FFH) is 0.60 m.

6 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Specifications

Age range:	2 - 6
Number of users:	5 users
FFH :	0.60 m
Size:	1.56 x 1.98 x 0.77 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.20 m3

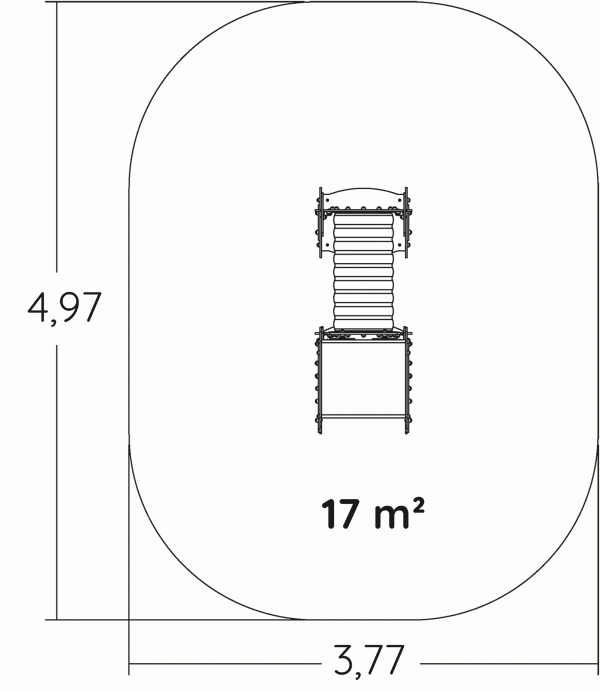

Surface:	17.00 m2
Total weight:	105.60 kg
Weight of the heaviest element:	9.22 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The roof is made of aluminium painted sheet.

The tunnel is made of 100% recycled rotomolded polyethylene, 76cm in diameter (RAL 9005).

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
