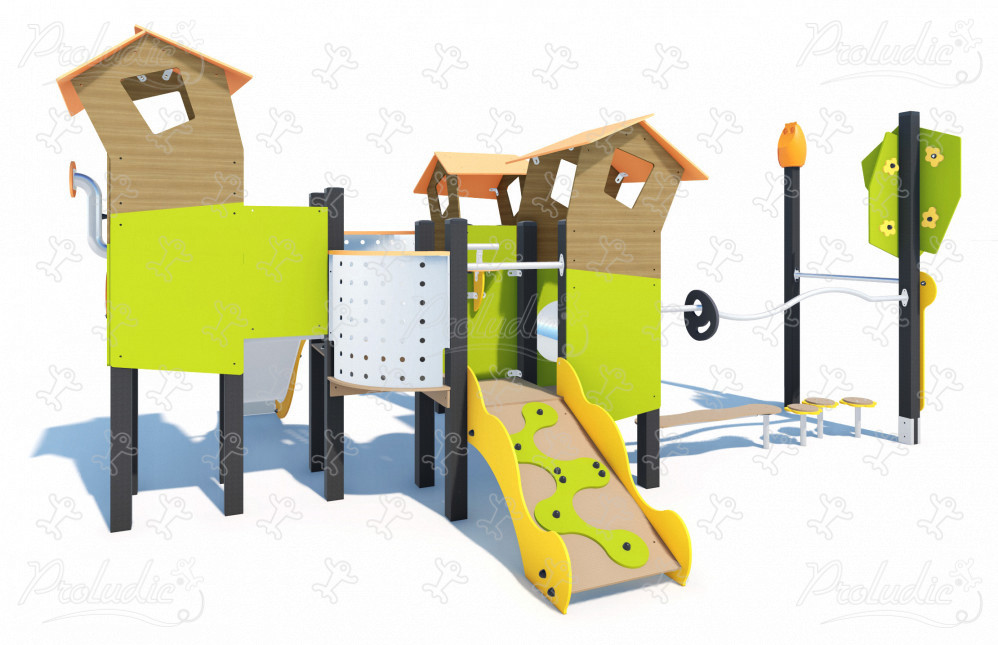

Adventure - Dream Village - J2624®

We have created the reference J2624® in our "Adventure" range. This module is accessible from 2 years. It can accommodate up to 25 users.

The size of the module is: 5.96 m length, 4.05 m width, 2.73 m. high. The free fall height (FFH) is 1.00 m.

16 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Taking shelter x3

Finding a small refuge to shelter in ensures children have a space of their own.

Thinking x1

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x2

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	2+
Number of users:	25 users
FFH :	1.00 m

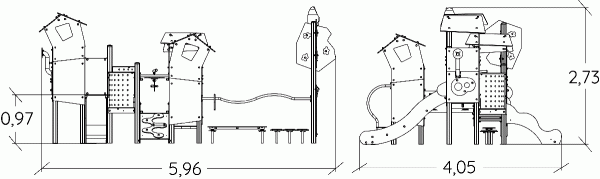

Size:	5.96 x 4.05 x 2.73 m

Equipment installation

Number of installers:	2
Installation time:	23:00:00
Concrete volume:	0.80 m3

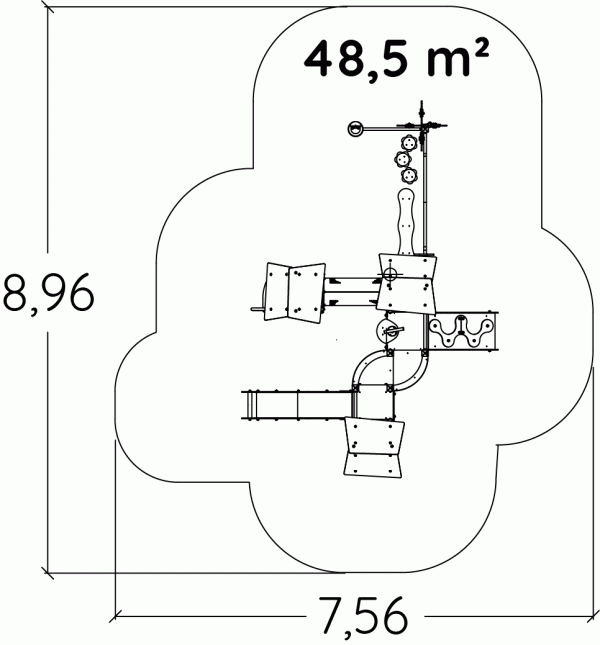

Surface:	48.50 m2
Total weight:	759.08 kg
Weight of the heaviest element:	20.40 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

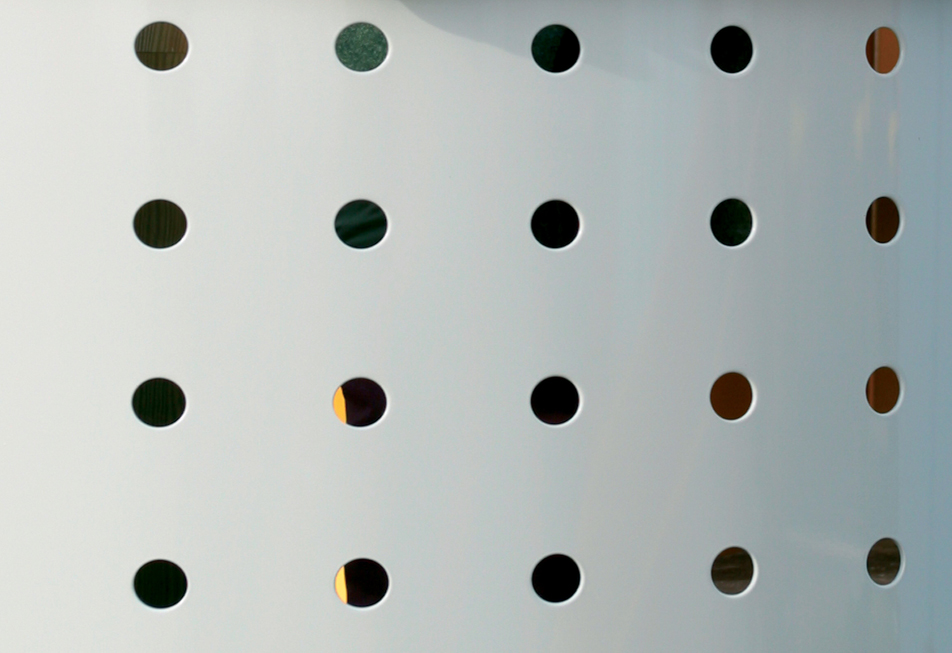

The tunnel, is made of 3mm perforated aluminium sheet, coated with polyester epoxy lacquer, 427mm in diameter.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The balcony is made of 3mm perforated aluminium sheet, coated with polyester epoxy lacquer.

The owl is made of rotomouled polyethylene.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
