Adventure - Dream Hamlet - J2625®

We have created the reference J2625® in our "Adventure" range. This module is accessible from 2 years. It can accommodate up to 25 users.

The size of the module is: 5.46 m length, 4.44 m width, 3.30 m. high. The free fall height (FFH) is 1.60 m.

13 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Thinking x1

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	2+
Number of users:	25 users
FFH :	1.60 m

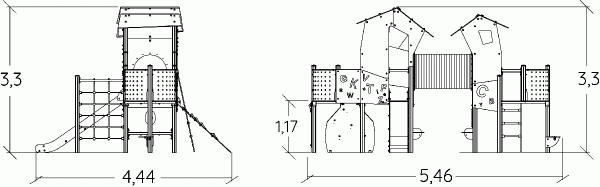

Size:	5.46 x 4.44 x 3.30 m

Equipment installation

Number of installers:	2
Installation time:	14:00:00
Concrete volume:	0.46 m3

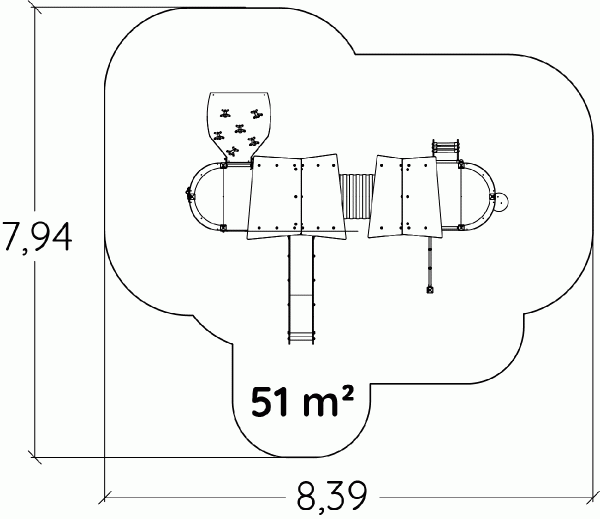

Surface:	51.00 m2
Total weight:	823.04 kg
Weight of the heaviest element:	25.85 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms and the inclined element are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tunnel is made of 100% recycled rotomolded polyethylene, 76cm in diameter (RAL 9005).

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The balcony is made of 3mm perforated aluminium sheet, coated with polyester epoxy lacquer.

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.
