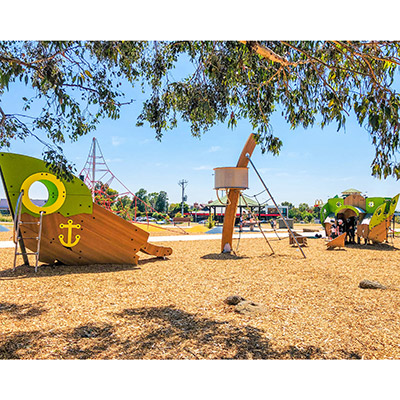

Aquatica - Keo the Shipwreck - J2750-M

We have created the reference J2750-M in our "Aquatica" range. This module is accessible from 4 years. It can accommodate up to 40 users.

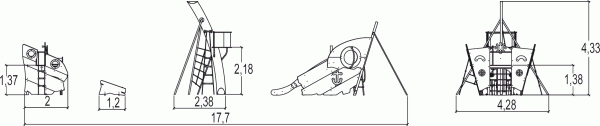

The size of the module is: 17.81 m length, 4.19 m width, 4.27 m. high. The free fall height (FFH) is 2.20 m.

23 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x2

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Hiding x2

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x4

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Taking shelter x2

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x6

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Sound stimulation x1

Fun sound activities bring liveliness to play areas, and are often shared by several children!

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Specifications

Age range:	4+
Number of users:	40 users
FFH :	2.20 m
Size:	17.81 x 4.19 x 4.27 m

Equipment installation

Number of installers:	2
Installation time:	36:50:00
Concrete volume:	1.20 m3

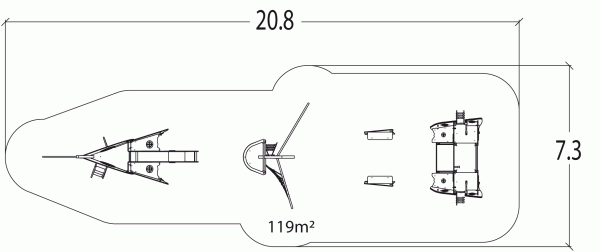

Surface:	120.50 m2
Total weight:	1246.99 kg
Weight of the heaviest element:	97.90 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The shaped beam (95mm thick, 200mm wide and 3.2m high) is made of oven-cured laminated wood with a surface coating; It gives the structure considerable strength.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
