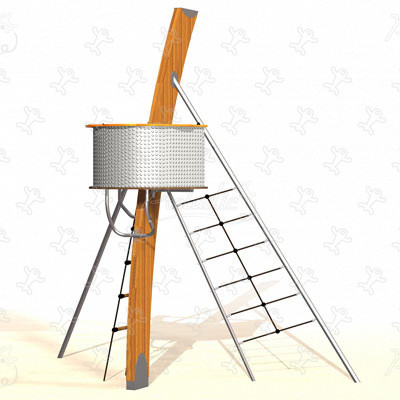

Aquatica - Keo Mast - J2752

We have created the reference J2752 in our "Aquatica" range. This module is accessible from 4 years. It can accommodate up to 10 users.

The size of the module is: 4.20 m length, 2.10 m width, 4.35 m. high. The free fall height (FFH) is 2.20 m.

6 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Balancing x2

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range:	4+
Number of users:	10 users
FFH :	2.20 m
Size:	4.20 x 2.10 x 4.35 m

Equipment installation

Number of installers:	2
Installation time:	07:45:00
Concrete volume:	0.70 m3
Surface:	35.50 m2
Total weight:	235.55 kg
Weight of the heaviest element:	97.90 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The shaped beam (95mm thick, 200mm wide and 3.2m high) is made of oven-cured laminated wood with a surface coating; It gives the structure considerable strength.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
