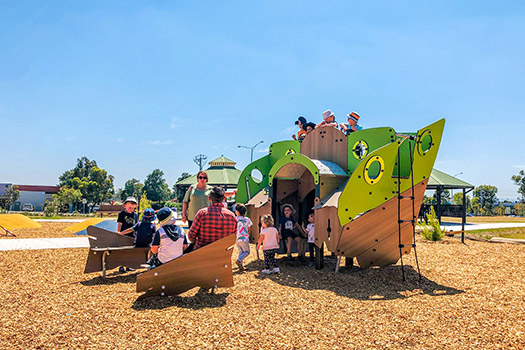

Aquatica - Keo Stern - J2753-M

We have created the reference J2753-M in our "Aquatica" range. This module is accessible from 4 years. It can accommodate up to 15 users.

The size of the module is: 4.76 m length, 3.83 m width, 2.40 m. high. The free fall height (FFH) is 1.37 m.

14 play functions

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x2

Resting allows the child to recover from their exertions, and also improve their concentration.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x2

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Sound stimulation x1

Fun sound activities bring liveliness to play areas, and are often shared by several children!

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	4+
Number of users:	15 users
FFH :	1.37 m
Size:	4.76 x 3.83 x 2.40 m

Equipment installation

Number of installers:	2
Installation time:	18:50:00
Concrete volume:	0.50 m3
Surface:	47.00 m2
Total weight:	546.55 kg
Weight of the heaviest element:	24.34 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
