Vivarea - J3301

We have created the reference J3301 in our "Vivarea" range. This module is accessible from 2 years. It can accommodate up to 10 users.

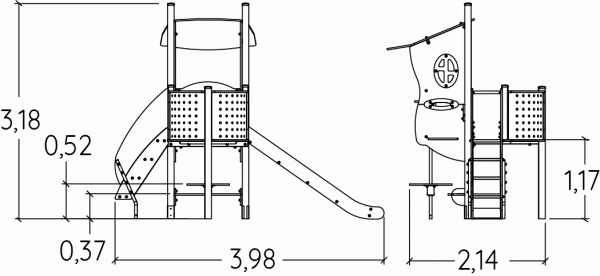

The size of the module is: 3.98 m length, 2.14 m width, 3.18 m. high. The free fall height (FFH) is 1.17 m.

Other finishes available

12 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x2

Resting allows the child to recover from their exertions, and also improve their concentration.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Hiding x3

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Specifications

Age range:	2 - 8
Number of users:	10 users
FFH :	1.17 m
Size:	3.98 x 2.14 x 3.18 m

Equipment installation

Number of installers:	2
Installation time:	13:00:00
Concrete volume:	0.30 m3

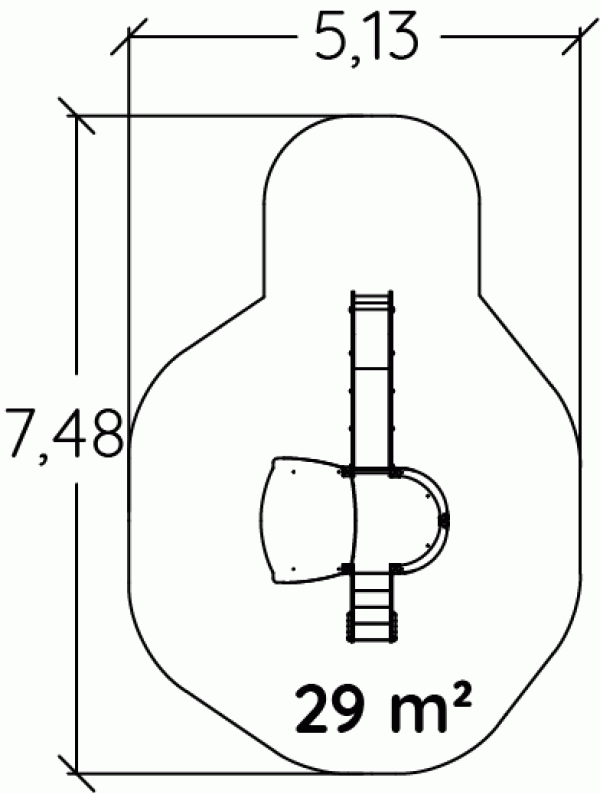

Surface:	29.00 m2
Total weight:	325.93 kg
Weight of the heaviest element:	21.91 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The lacquered panels are made from very high quality plywood 22mm thick, made of alternate layers of thin birch, which offers longevity and an exceptional mechanical... strangth. The colours are applied by electrostatic spraying of two-component polyurethane lacquer that is free of heavy metals, to ensure high levels of resistance to potentially aggressive chemicals such as anti-graffiti cleaning products. Read more

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
