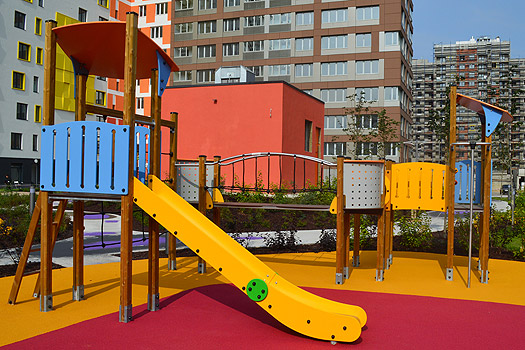

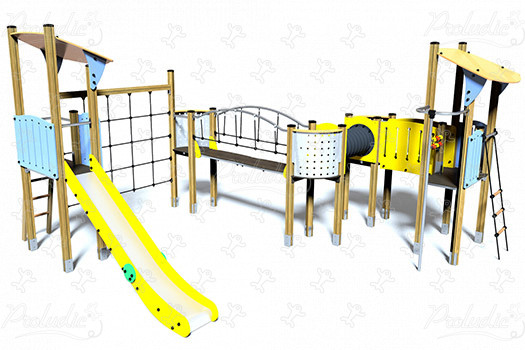

Vivarea - J3340

We have created the reference J3340 in our "Vivarea" range. This module is accessible from 3 years. It can accommodate up to 35 users.

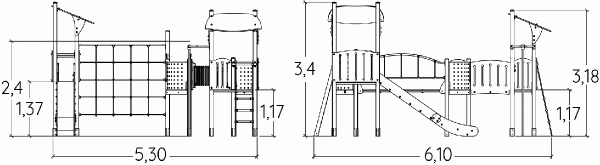

The size of the module is: 6.10 m length, 5.30 m width, 3.40 m. high. The free fall height (FFH) is 2.40 m.

Specifications

Age range:	3+
Number of users:	35 users
FFH :	2.40 m
Size:	6.10 x 5.30 x 3.40 m

Equipment installation

Number of installers:	2
Installation time:	23:00:00
Concrete volume:	0.70 m3

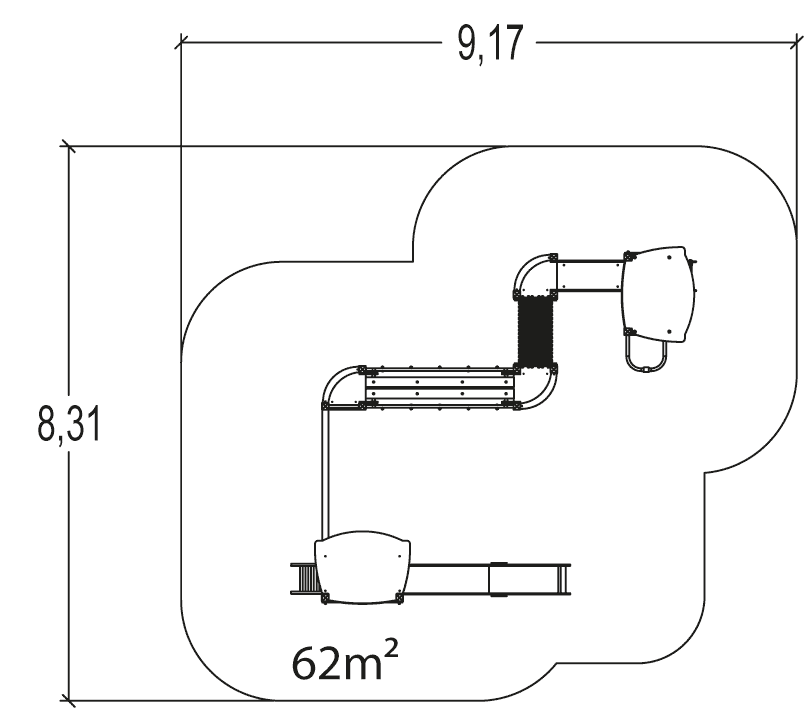

Surface:	62.00 m2
Total weight:	744.56 kg
Weight of the heaviest element:	33.17 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

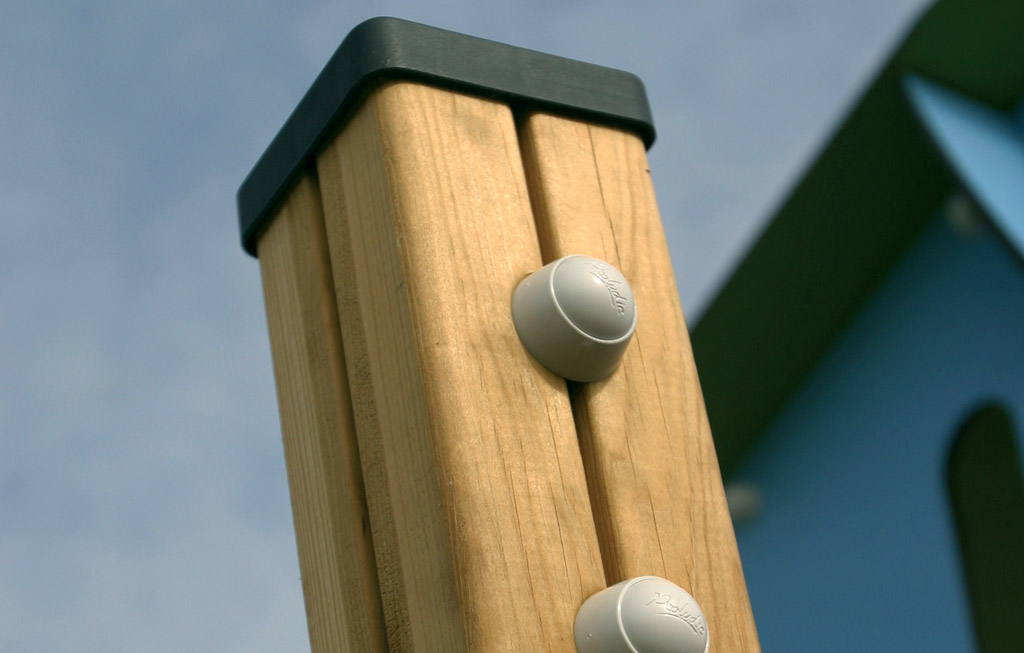

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

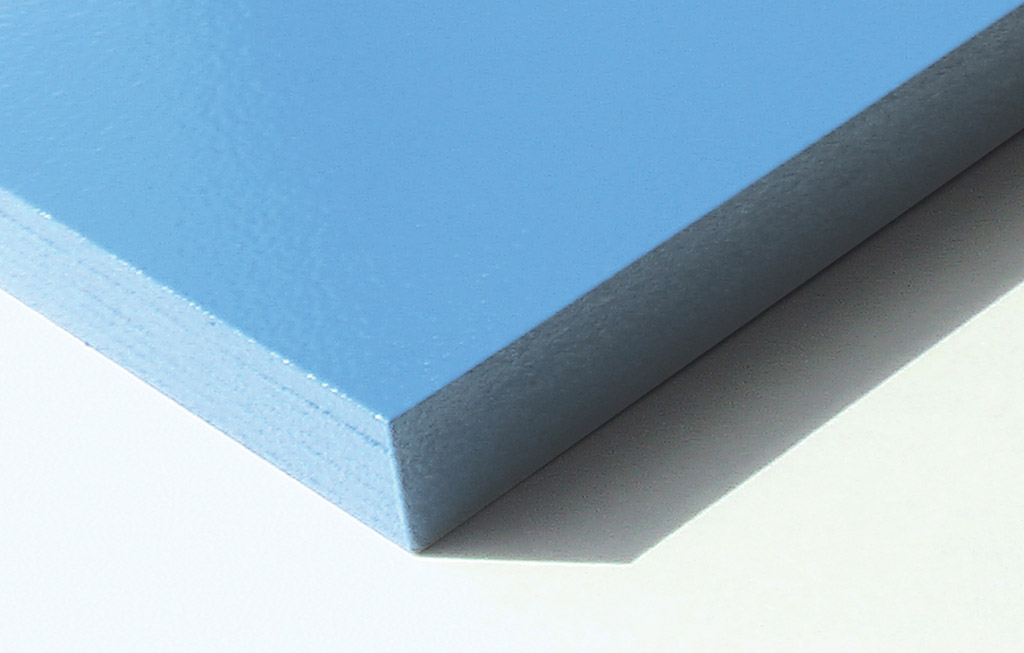

The lacquered panels are made from very high quality plywood 22mm thick, made of alternate layers of thin birch, which offers longevity and an exceptional mechanical... strangth. The colours are applied by electrostatic spraying of two-component polyurethane lacquer that is free of heavy metals, to ensure high levels of resistance to potentially aggressive chemicals such as anti-graffiti cleaning products. Read more

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

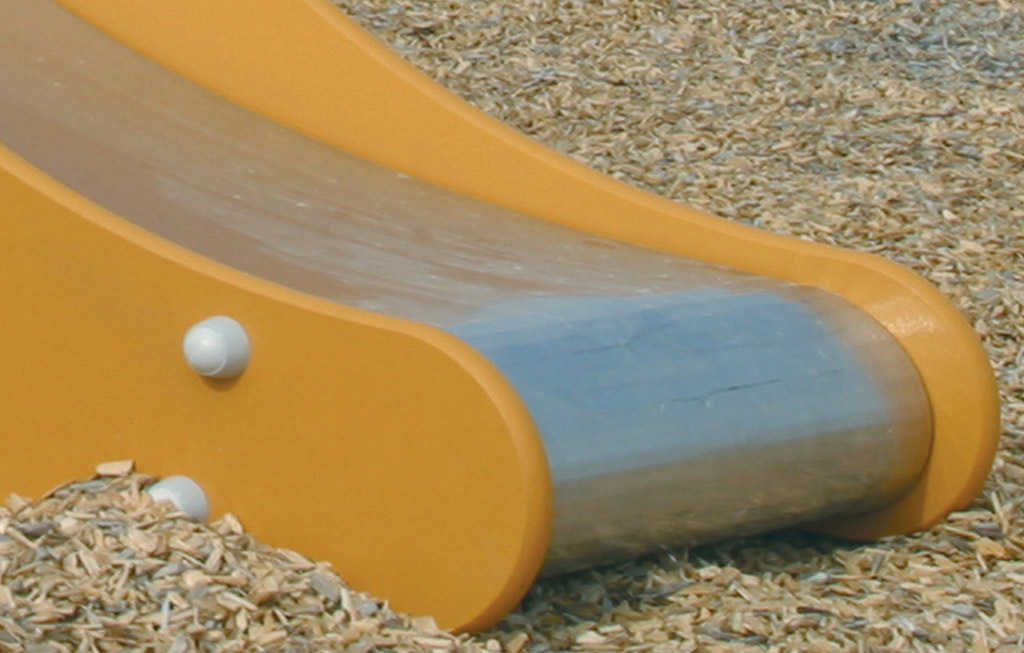

The sliding surface is made of 2mm thick stainless steel, shaped, bent and rolled in one piece.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
