Play panels, Audio & Musical play - Tubophone - J3410

We have created the reference J3410 in our "Play panels, Audio & Musical play" range. This module is accessible from 2 years. It can accommodate up to 2 users.

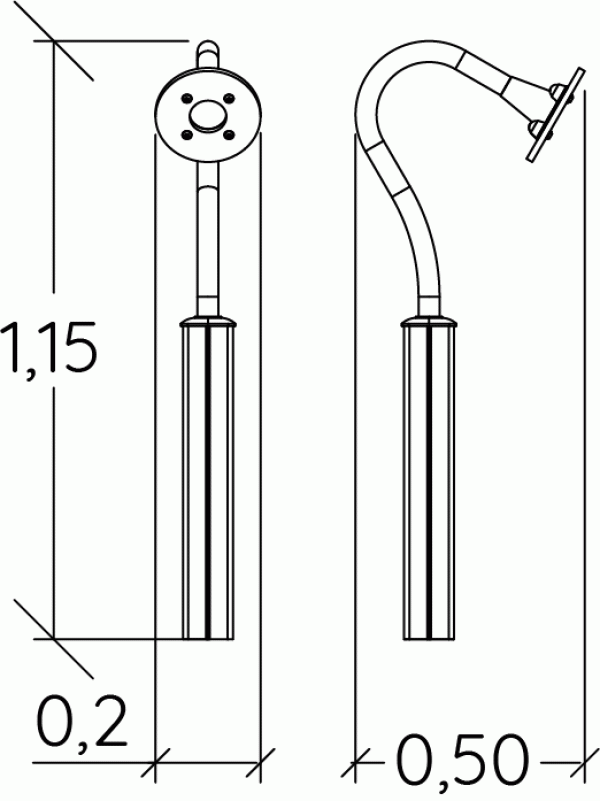

The size of the module is: 0.20 m length, 0.50 m width, 1.15 m. high.

2 play functions

sound stimulation
Sound stimulation x1
Fun sound activities bring liveliness to play areas, and are often shared by several children!
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Specifications

Age range: 2+
Number of users: 2 users
Size: 0.20 x 0.50 x 1.15 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.10 m3
Surface: 18.00 m2
Total weight: 33.41 kg
Weight of the heaviest element: 6.74 kg

Environmental Indicators

Repairability

Repairability

9.46 /10

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
Video - Play panels, Audio & Musical play - Tubophone - J3410
Video - Play panels, Audio & Musical play - Tubophone - J3410
Side view
Side view
View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
