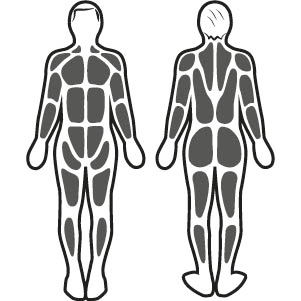

Muscle stimulation

Movement

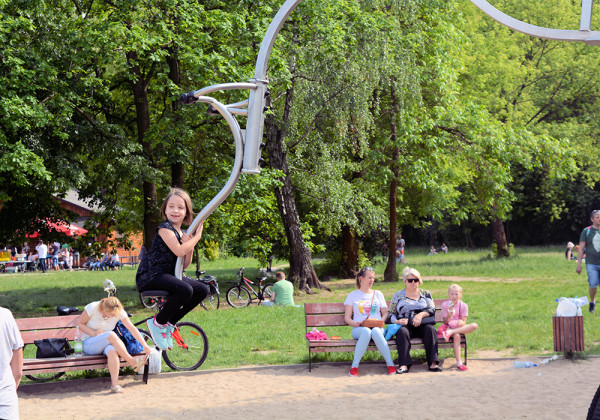

Dynamic Structures - Skysurf - J3505

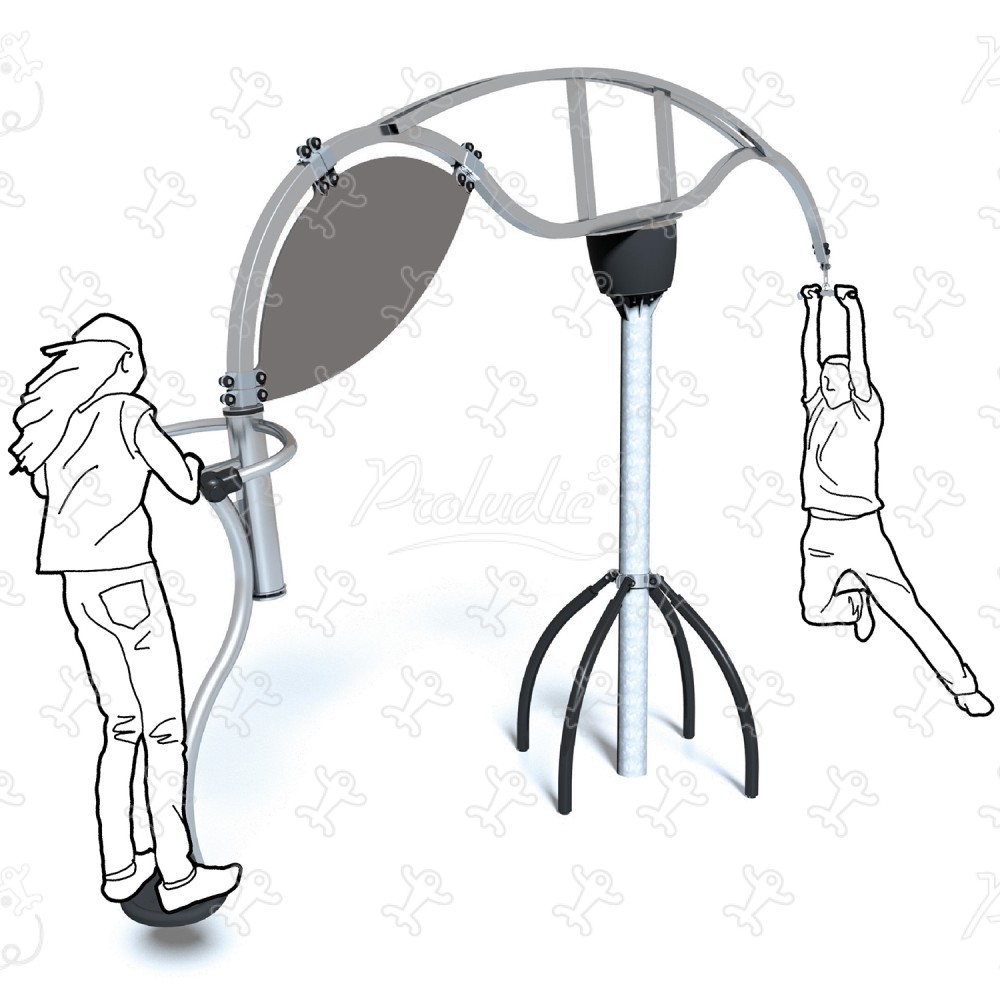

We have created the reference J3505 in our "Dynamic Structures" range. This module is accessible from 12 years. It can accommodate up to 2 users.

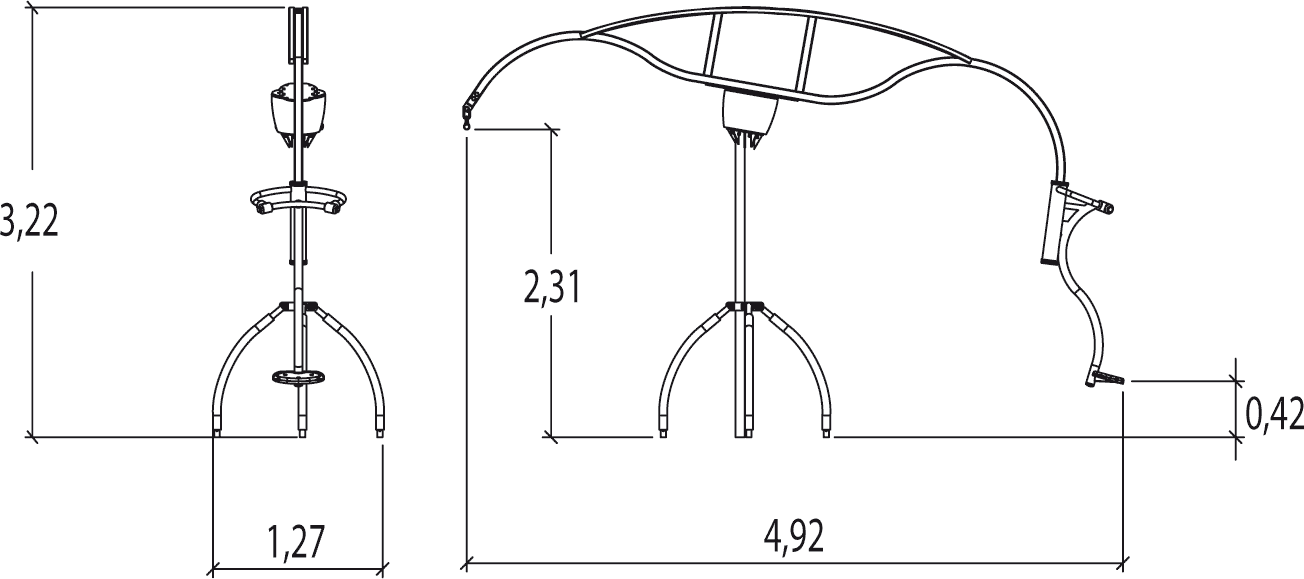

The size of the module is: 4.92 m length, 1.27 m width, 3.22 m. high. The free fall height (FFH) is 2.35 m.

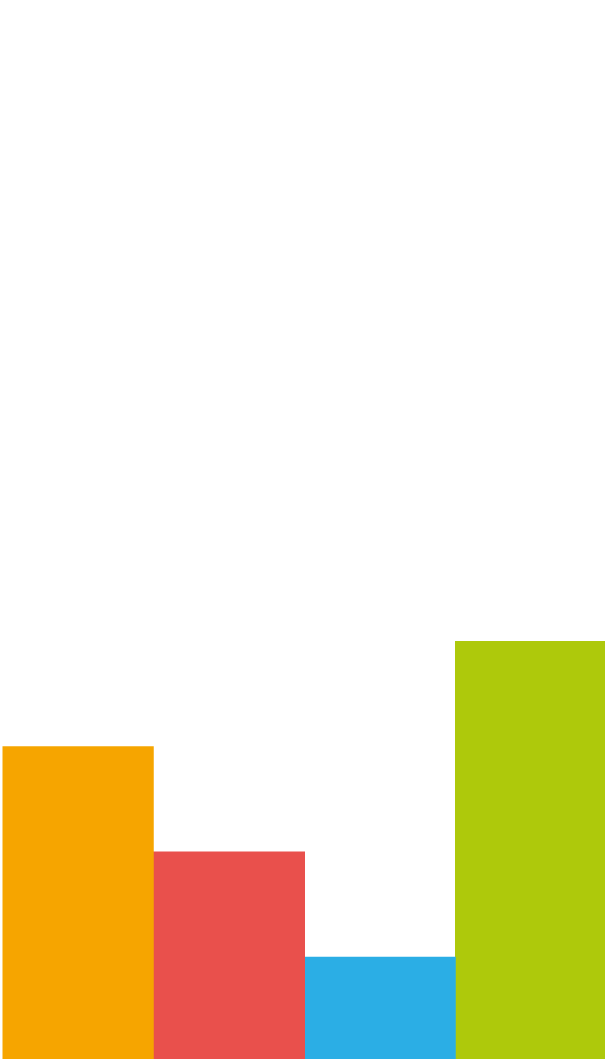

4 ludo-sport motivations

Sensations

Sharing

Diversity

Challenge

Specifications

Age range:	12+
Number of users:	2 users
FFH :	2.35 m
Size:	4.92 x 1.27 x 3.22 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.60 m3

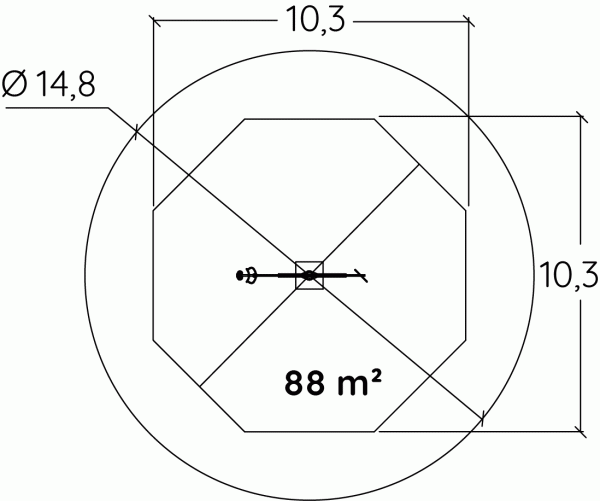

Surface:	88.00 m2
Total weight:	275.86 kg
Weight of the heaviest element:	115.01 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Dynamic Structures - Skysurf - J3505

Materials

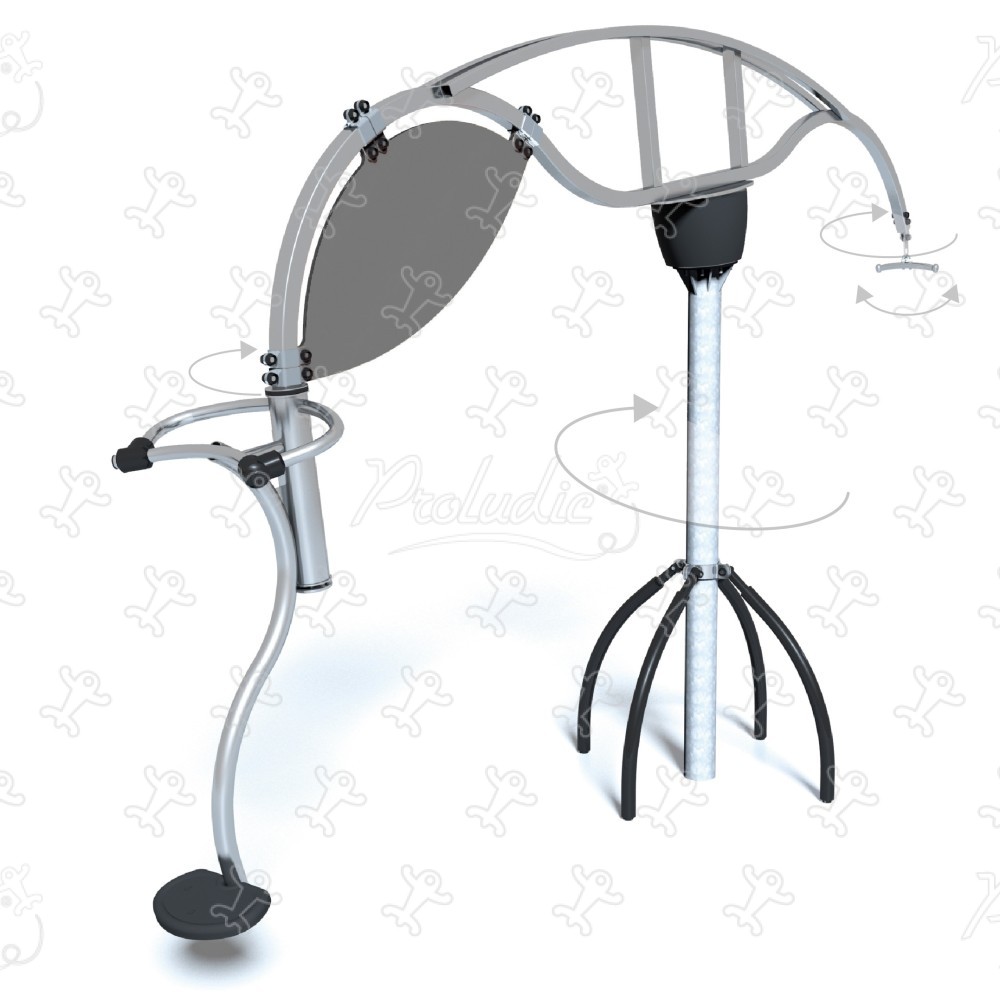

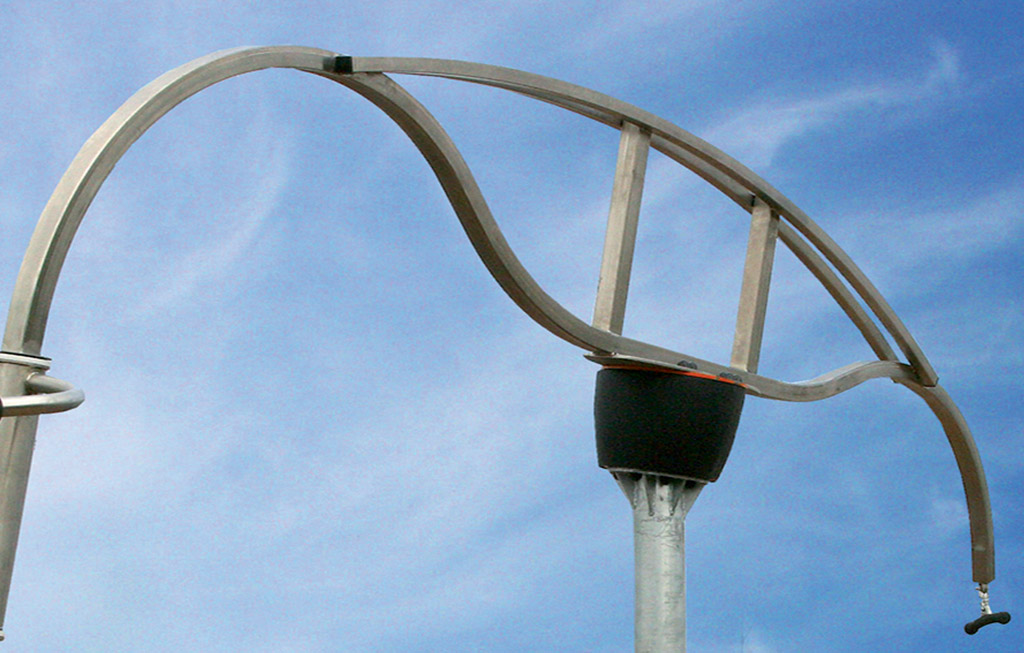

The supporting arm is made of a 60x60mm stainless steel tube with twin curves. The twin reinforcing struts give the supporting structure its rigidity. The unit as a... whole is bolted to the plate on the galvanised steel post (ø 140mm). Read more

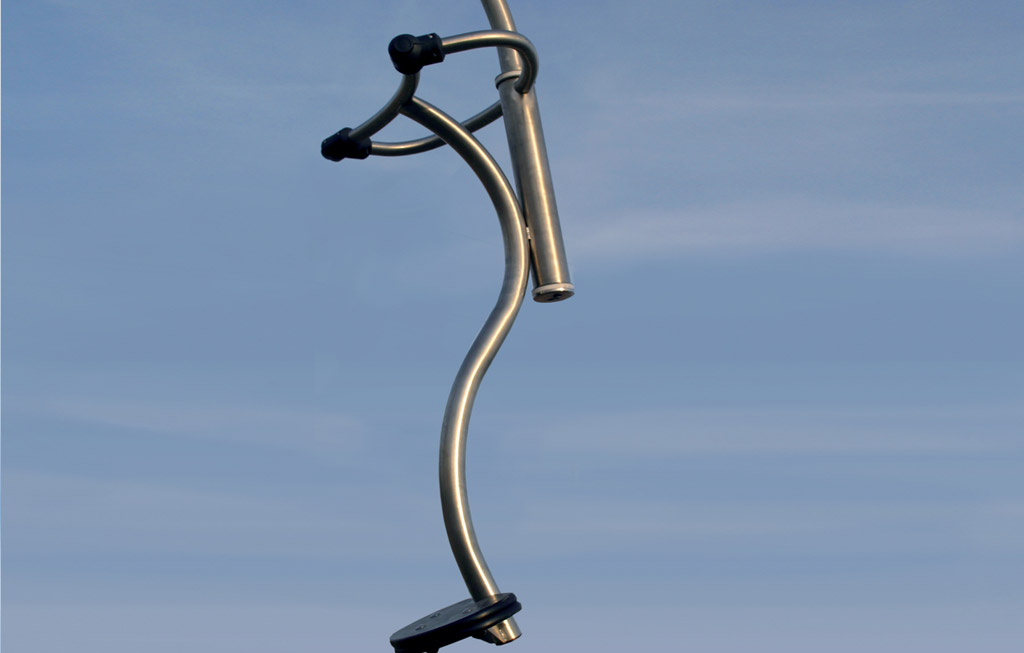

The platform is made with a non-slip rubber overmould. Its rotation system is inserted in a structure made entirely of stainless steel (ø 110mm).

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
