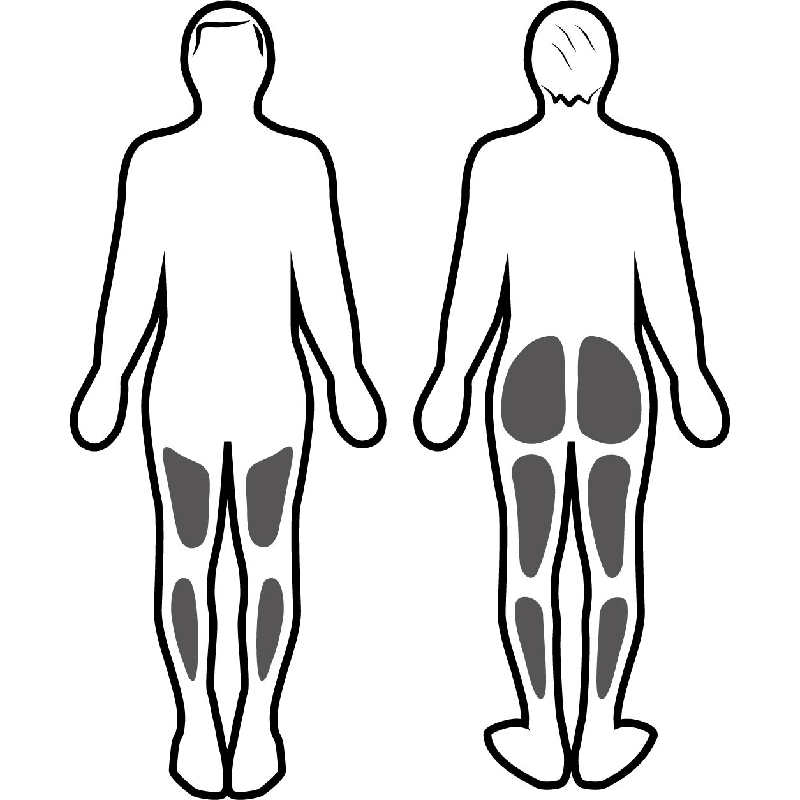

Muscle stimulation

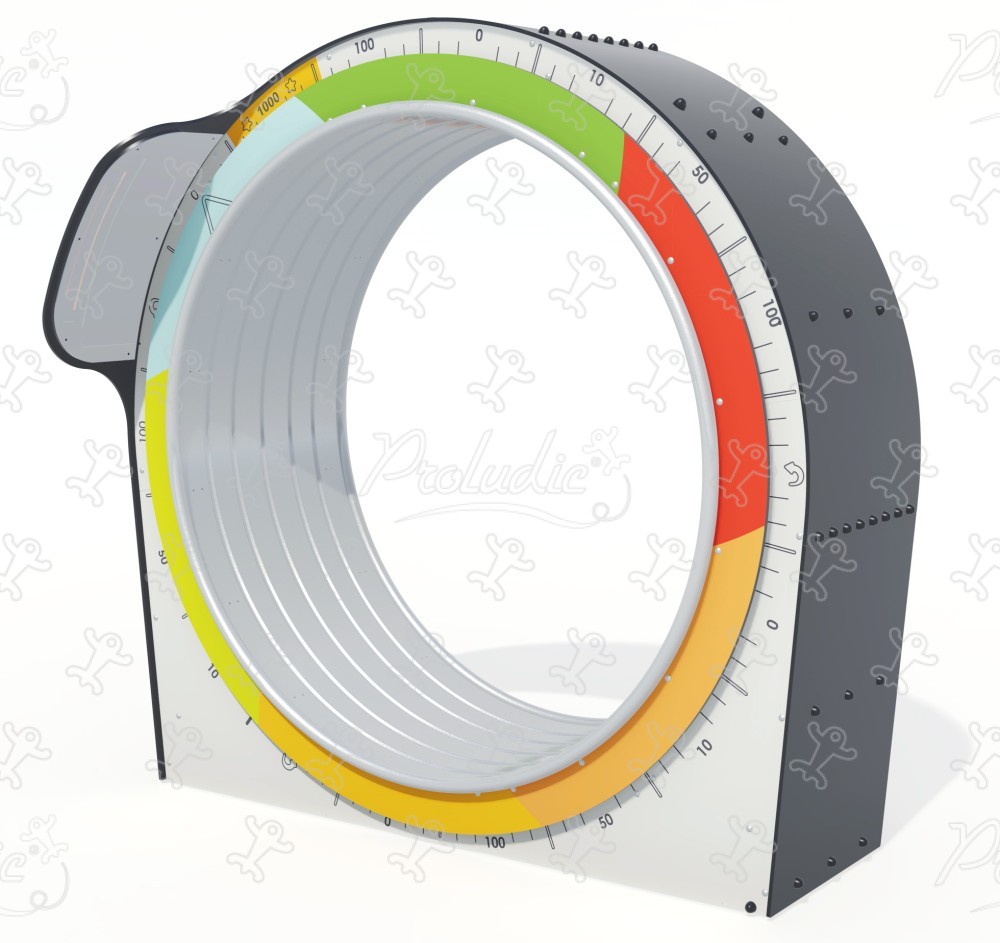

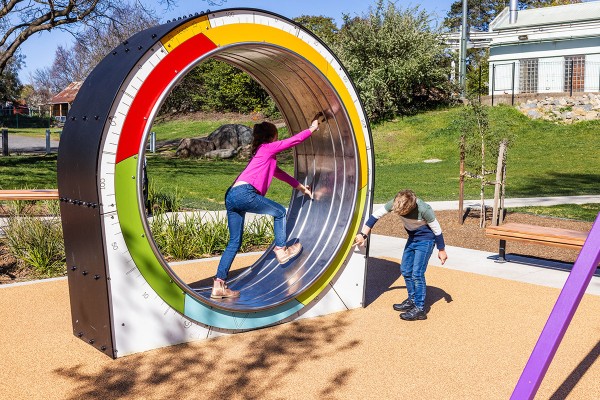

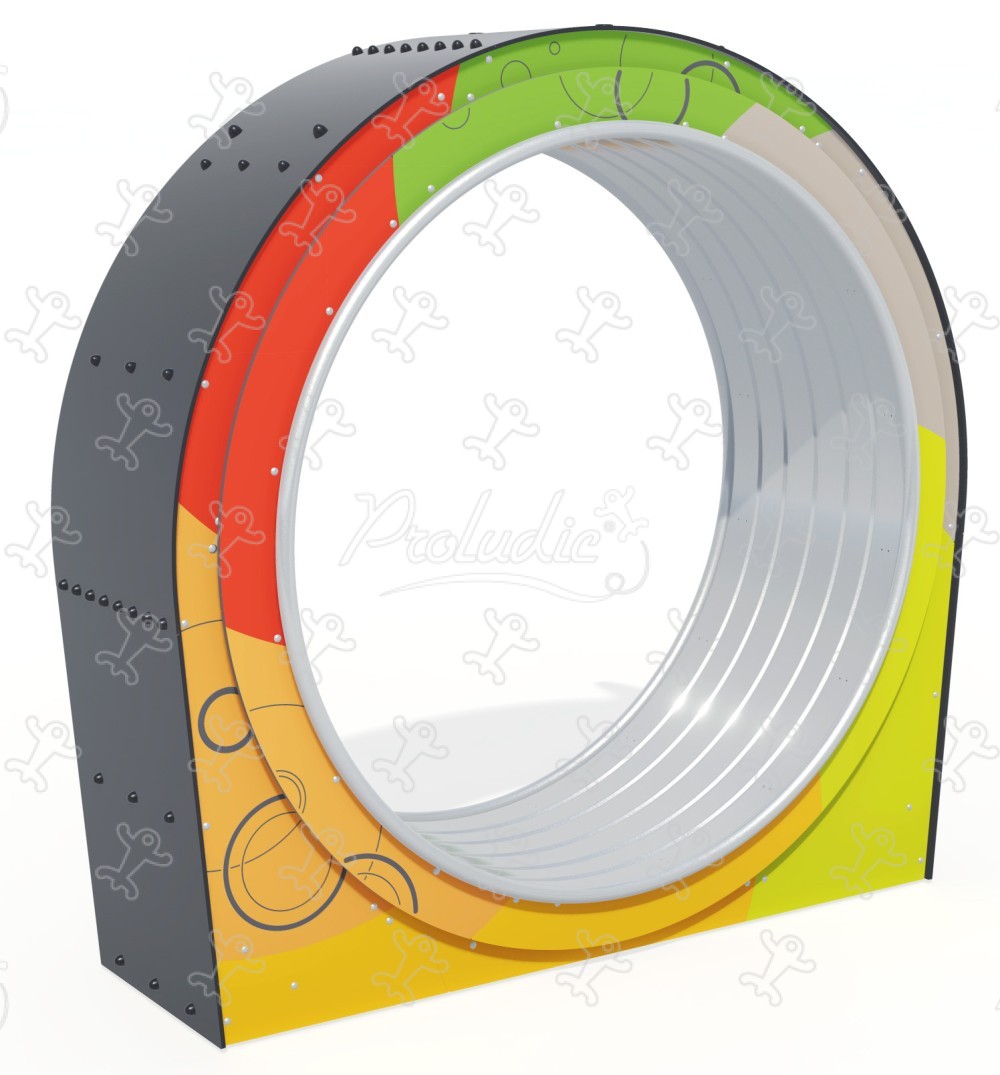

Dynamic Structures - E-Rollrunner - J3511®

We have created the reference J3511® in our "Dynamic Structures" range. This module is accessible from 6 years. It can accommodate up to 3 users.

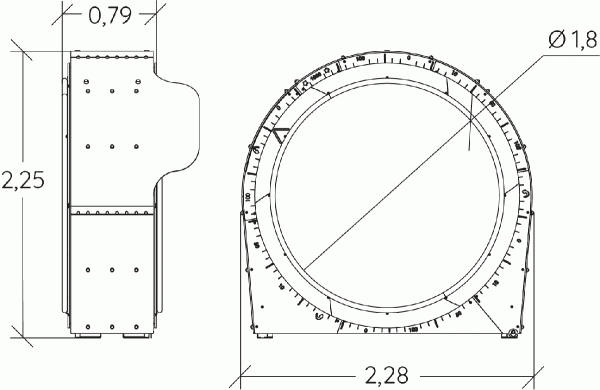

The size of the module is: 2.31 m length, 1.08 m width, 2.25 m. high. The free fall height (FFH) is 0.70 m.

6 sports activities

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Role play x1

Role play promotes the child's intellectual and social skills.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Rotating x1

Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Sound stimulation x1

Fun sound activities bring liveliness to play areas, and are often shared by several children!

5 ludo-sport motivations

Sensations

Progressive design

Sharing

Diversity

Challenge

Specifications

Age range:	6+
Number of users:	3 users
FFH :	0.70 m
Size:	2.31 x 1.08 x 2.25 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.50 m3

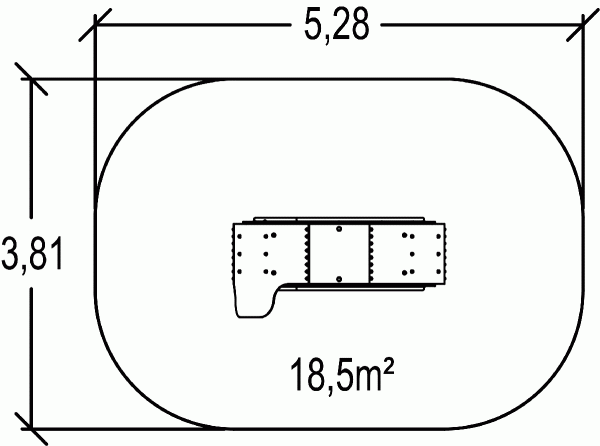

Surface:	18.50 m2
Total weight:	360.70 kg
Weight of the heaviest element:	317.94 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Dynamic Structures - E-Rollrunner - J3511®

Materials

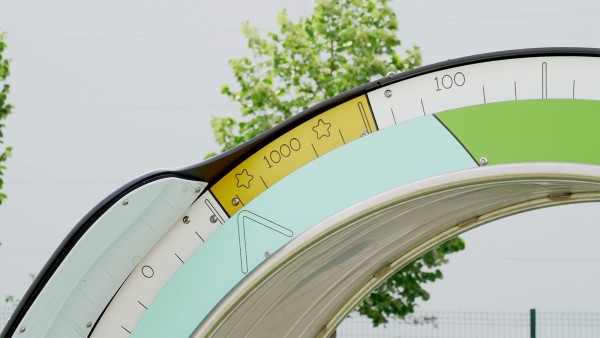

The 180cm diameter wheel is made of stainless steel. Further reinforcement is provided by a galvanised steel structure, on the inside of the equipment.

The roof is made of polyethylene plates 10mm thick.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
