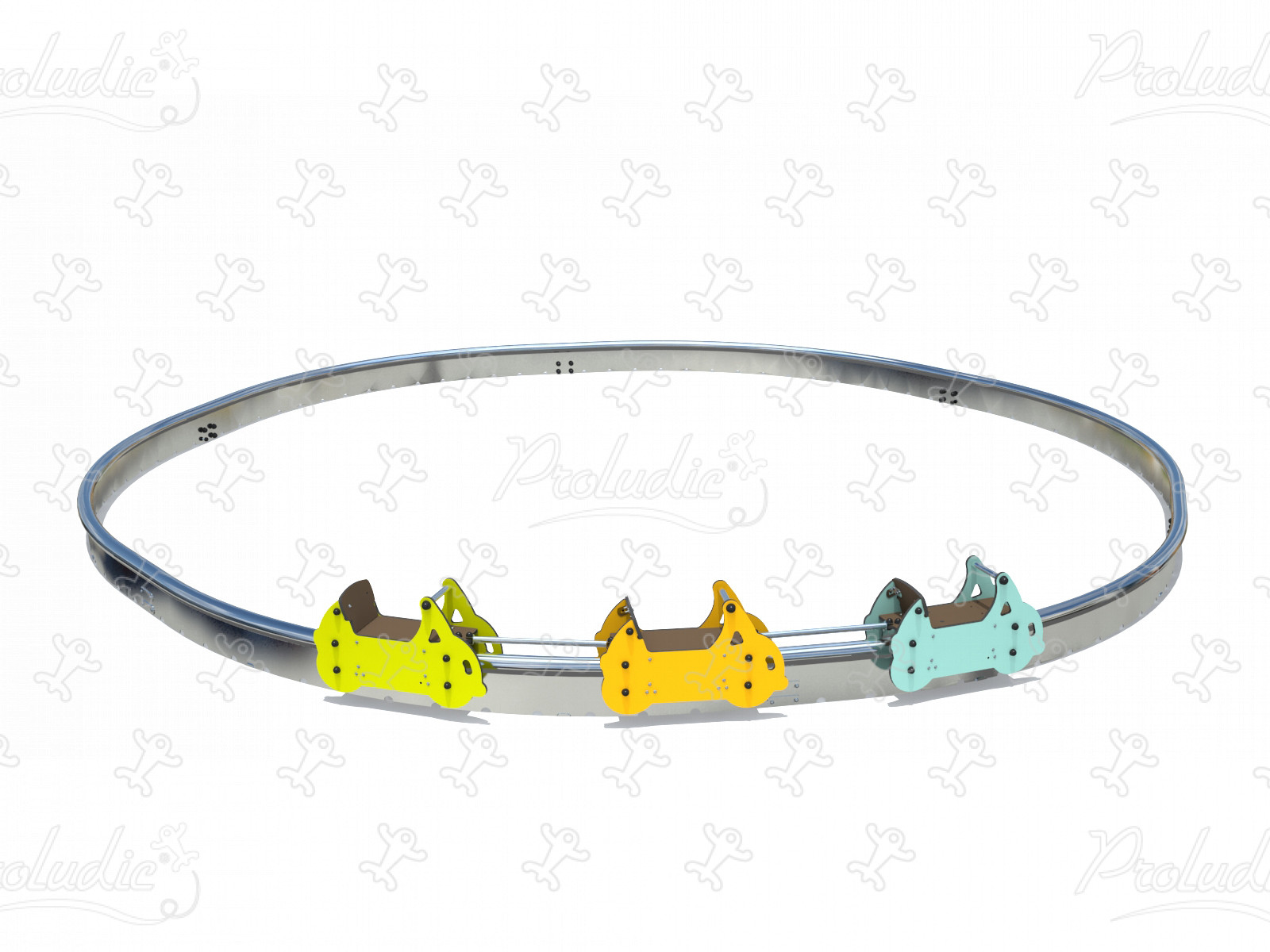

Cableways - Ludic Express - J3512®

We have created the reference J3512® in our "Cableways" range. This module is accessible from 2 years. It can accommodate up to 5 users.

The size of the module is: 5.84 m length, 5.40 m width, 0.50 m. high. The free fall height (FFH) is 0.50 m.

4 play functions

meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
role play
Role play x1
Role play promotes the child's intellectual and social skills.
handling
Handling x1
Handling is a great activity for developing motor skills and abilities in young children while having fun.
rotating
Rotating x1
Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

Specifications

Age range: 2+
Number of users: 5 users
FFH : 0.50 m
Size: 5.84 x 5.40 x 0.50 m

Equipment installation

Number of installers: 2
Installation time: 04:00:00
Concrete volume: 0.33 m3
Surface: 60.50 m2
Total weight: 255.37 kg
Weight of the heaviest element: 32.00 kg

Environmental Indicators

Repairability

Repairability

9.06 /10

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
Video - Cableways - Ludic Express - J3512®
Video - Cableways - Ludic Express - J3512®
Side view
Side view

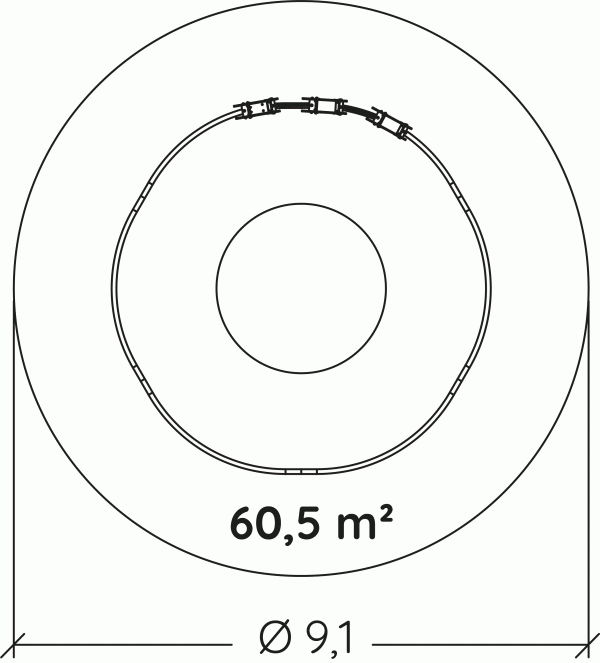

View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The protective bar

The protective bar is made of PVC.

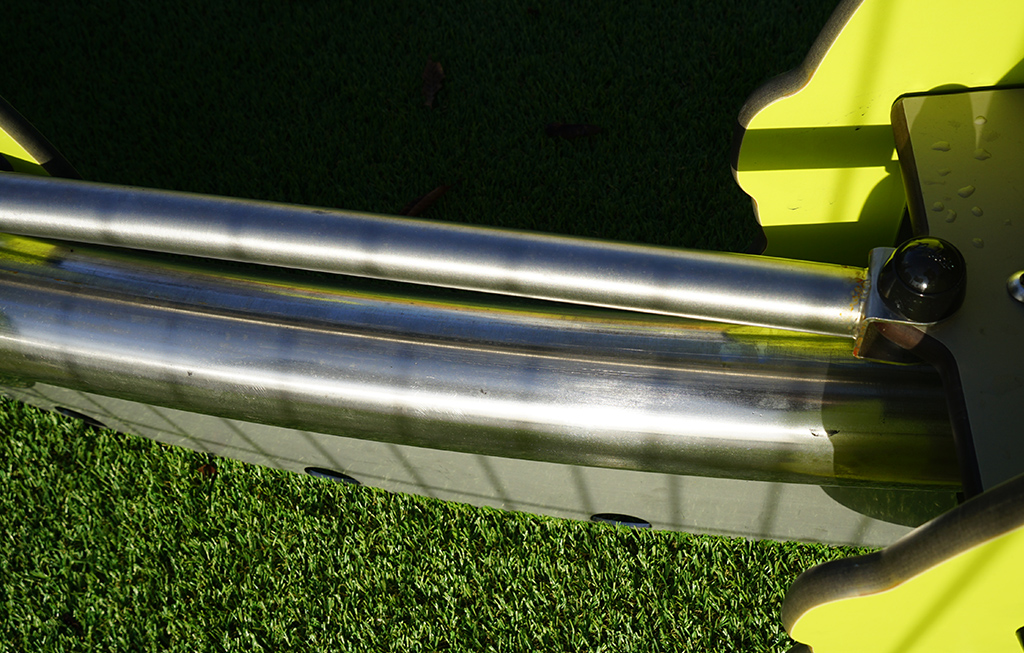

The rail

The rail is made of stainless steel, Ø 76.1mm, 3.2mm thick.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
