Metropolis - Dragster - J3601

We have created the reference J3601 in our "Metropolis" range. This module is accessible from 1 year. It can accommodate up to 6 users.

The size of the module is: 2.59 m length, 0.97 m width, 1.09 m. high. The free fall height (FFH) is 0.20 m.

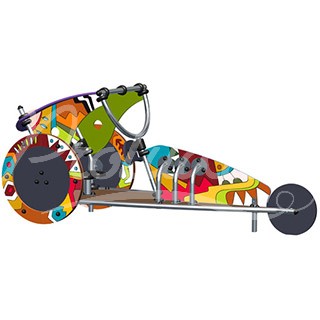

Other finishes available

5 play functions

resting
Resting x1
Resting allows the child to recover from their exertions, and also improve their concentration.
role play
Role play x1
Role play promotes the child's intellectual and social skills.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
handling
Handling x1
Handling is a great activity for developing motor skills and abilities in young children while having fun.
taking shelter
Taking shelter x1
Finding a small refuge to shelter in ensures children have a space of their own.
Show more

Specifications

Age range: 1 - 8
Number of users: 6 users
FFH : 0.20 m
Size: 2.59 x 0.97 x 1.09 m

Equipment installation

Number of installers: 2
Installation time: 03:15:00
Concrete volume: 0.09 m3
Surface: 21.00 m2
Total weight: 125.25 kg
Weight of the heaviest element: 20.39 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

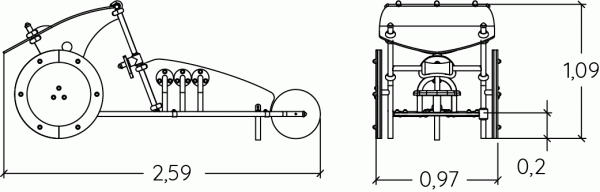

Side view
Side view

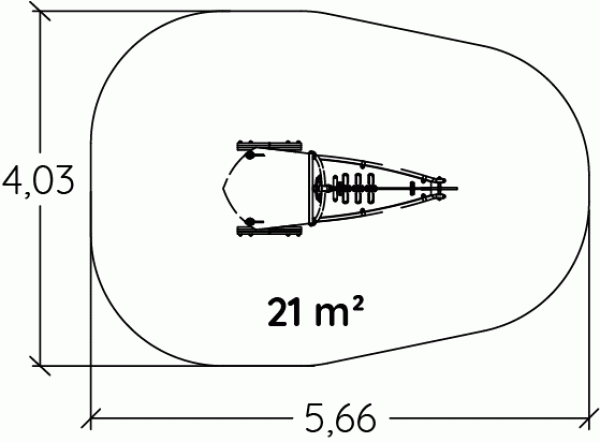

View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The roof

The roof is made of 10mm thick polyethylene plates.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
