ACTI’Fit - Runner - J37201®

We have created the reference J37201® in our "ACTI’Fit" range. This module is accessible from 10 years. It can accommodate up to 1 user.

The size of the module is: 1.14 m length, 0.81 m width, 2.12 m. high. The free fall height (FFH) is 0.60 m.

2 sports activities

running
Running x1
walking
Walking x1

4 ludo-sport motivations

Application Acti'Fun
Application Acti'Fun
Multimedia
Multimedia
Sensations
Sensations
Diversity
Diversity

Specifications

Age range: 10+
Number of users: 1 user
FFH : 0.60 m
Size: 1.14 x 0.81 x 2.12 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00
Concrete volume: 0.15 m3
Surface: 13.50 m2
Total weight: 79.02 kg
Weight of the heaviest element: 19.91 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
Video - ACTI’Fit - Runner - J37201®
Video - ACTI’Fit - Runner - J37201®

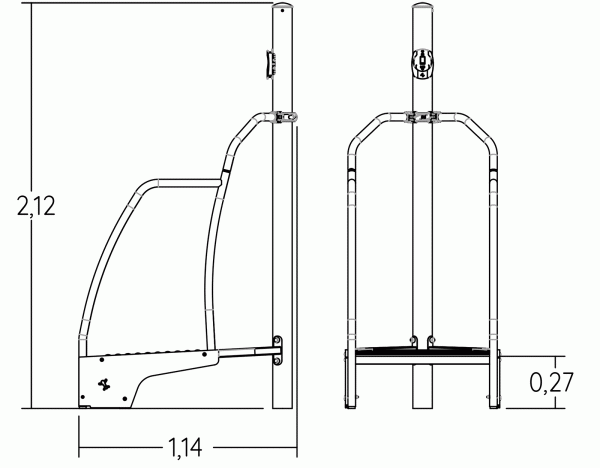

Side view
Side view

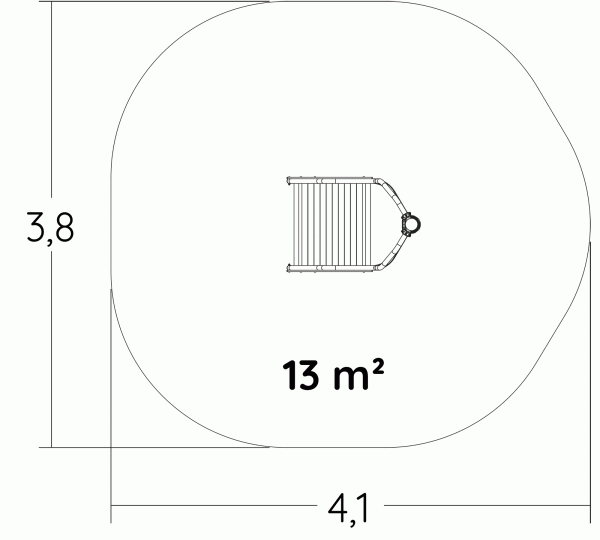

View from above
View from above

Materials

The 125mm diameter post

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of painted aluminium. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixing collars

The fixing collars are made of painted aluminium.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The Runner rolling bars and surrounding frame structure

The Runner rolling bars and surrounding frame structure are made of stainless steel.

The smartphone holder

The smartphone holder is made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
