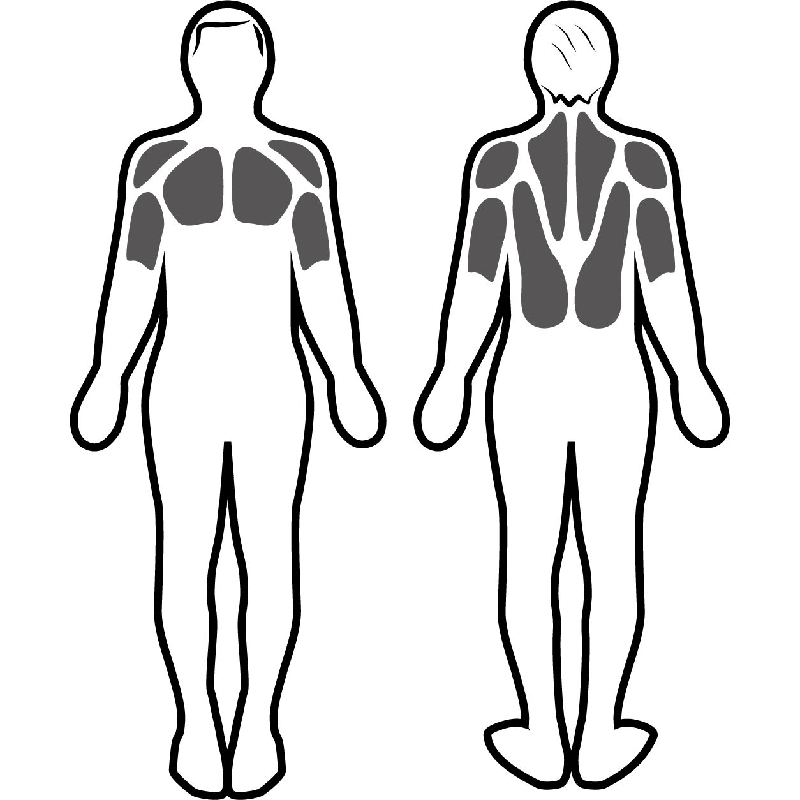

Muscle stimulation

Movement

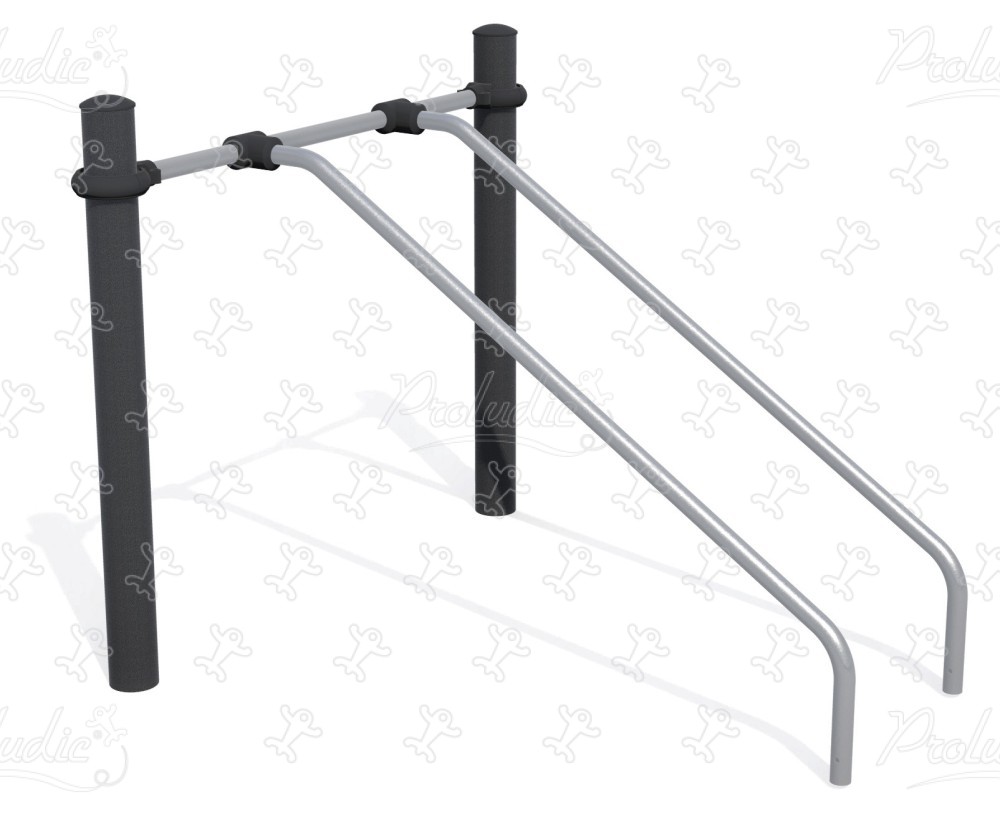

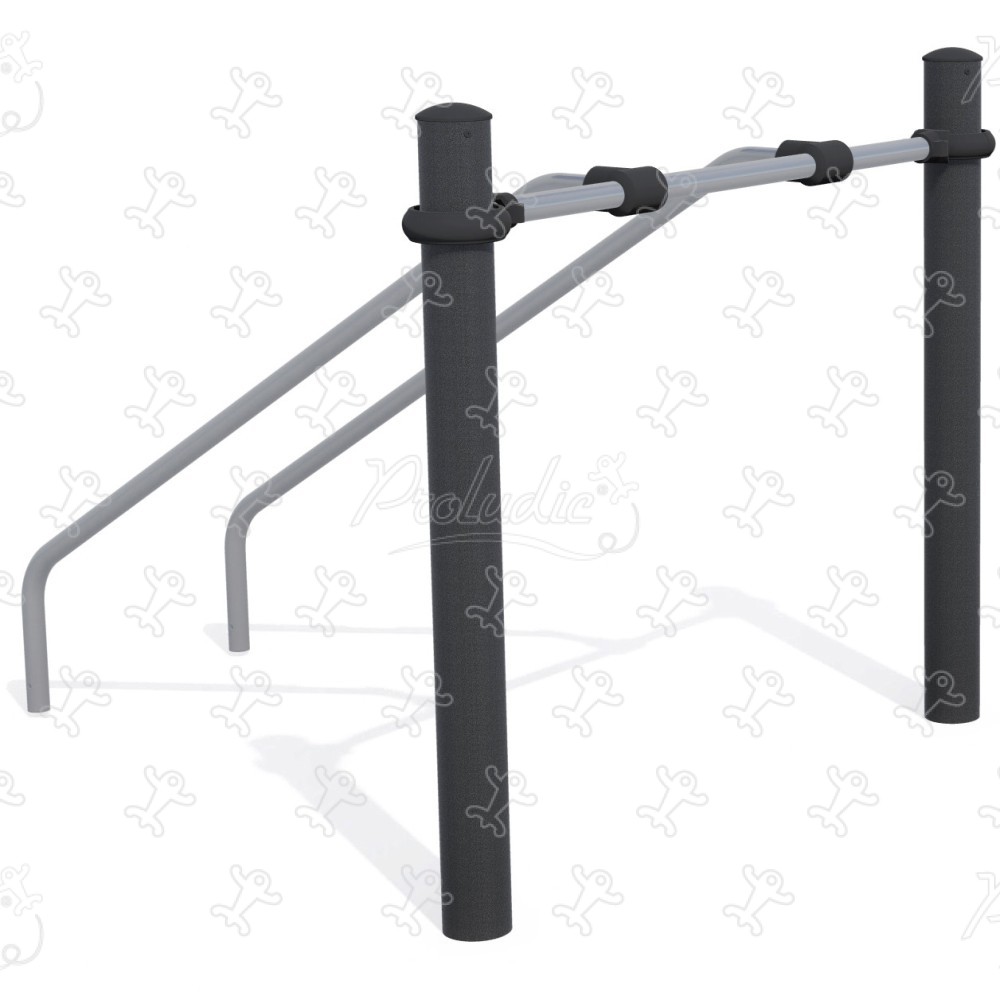

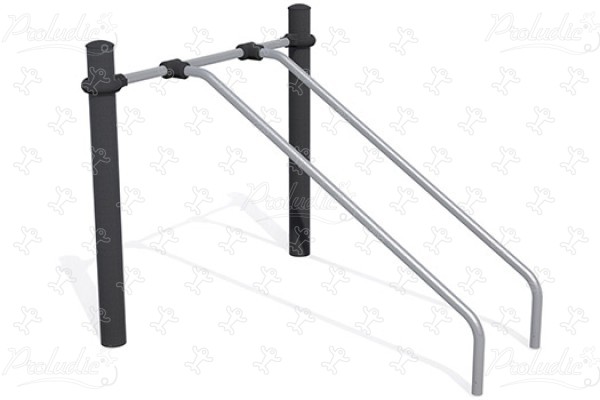

ACTI’Fit - Sloping bars - J37213®

We have created the reference J37213® in our "ACTI’Fit" range. This module is accessible from 10 years. It can accommodate up to 1 user.

The size of the module is: 1.51 m length, 1.45 m width, 1.22 m. high. The free fall height (FFH) is 1.07 m.

3 sports activities

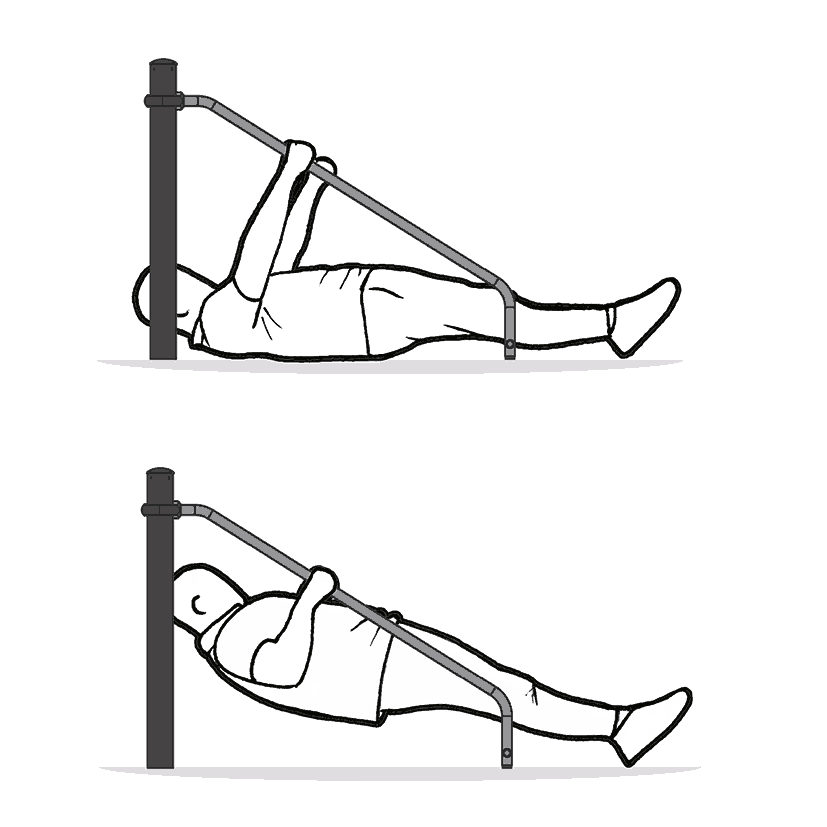

Pull-ups x1

Dips x1

Push-ups x1

3 ludo-sport motivations

Application Acti'Fun

Diversity

Challenge

Specifications

Age range:	10+
Number of users:	1 user
FFH :	1.07 m
Size:	1.51 x 1.45 x 1.22 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.11 m3

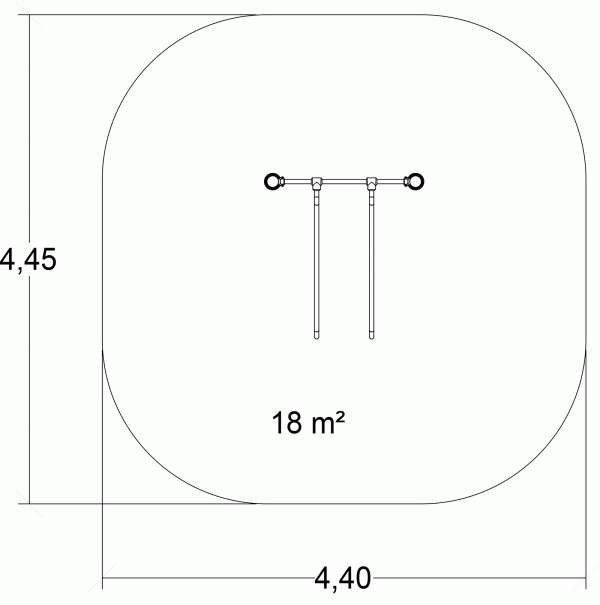

Surface:	18.00 m2
Total weight:	44.35 kg
Weight of the heaviest element:	13.27 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - ACTI’Fit - Sloping bars - J37213®

Materials

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

The fixing collars are made of painted aluminium.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
