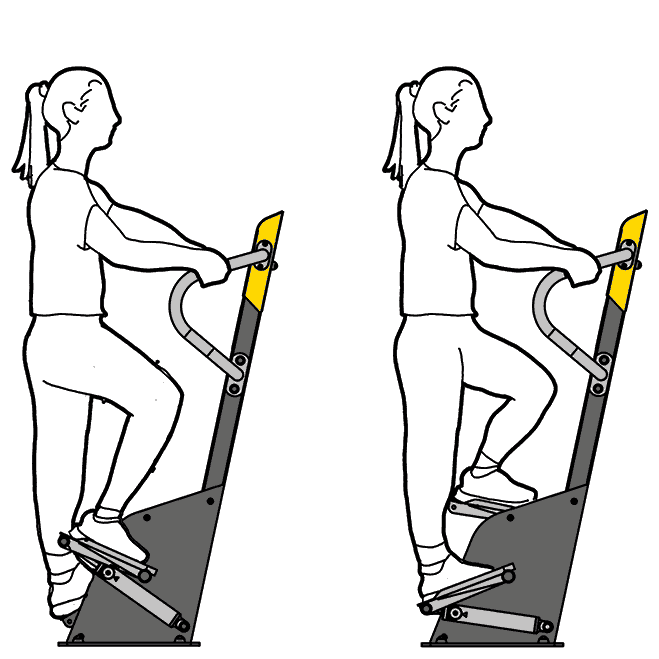

Movement

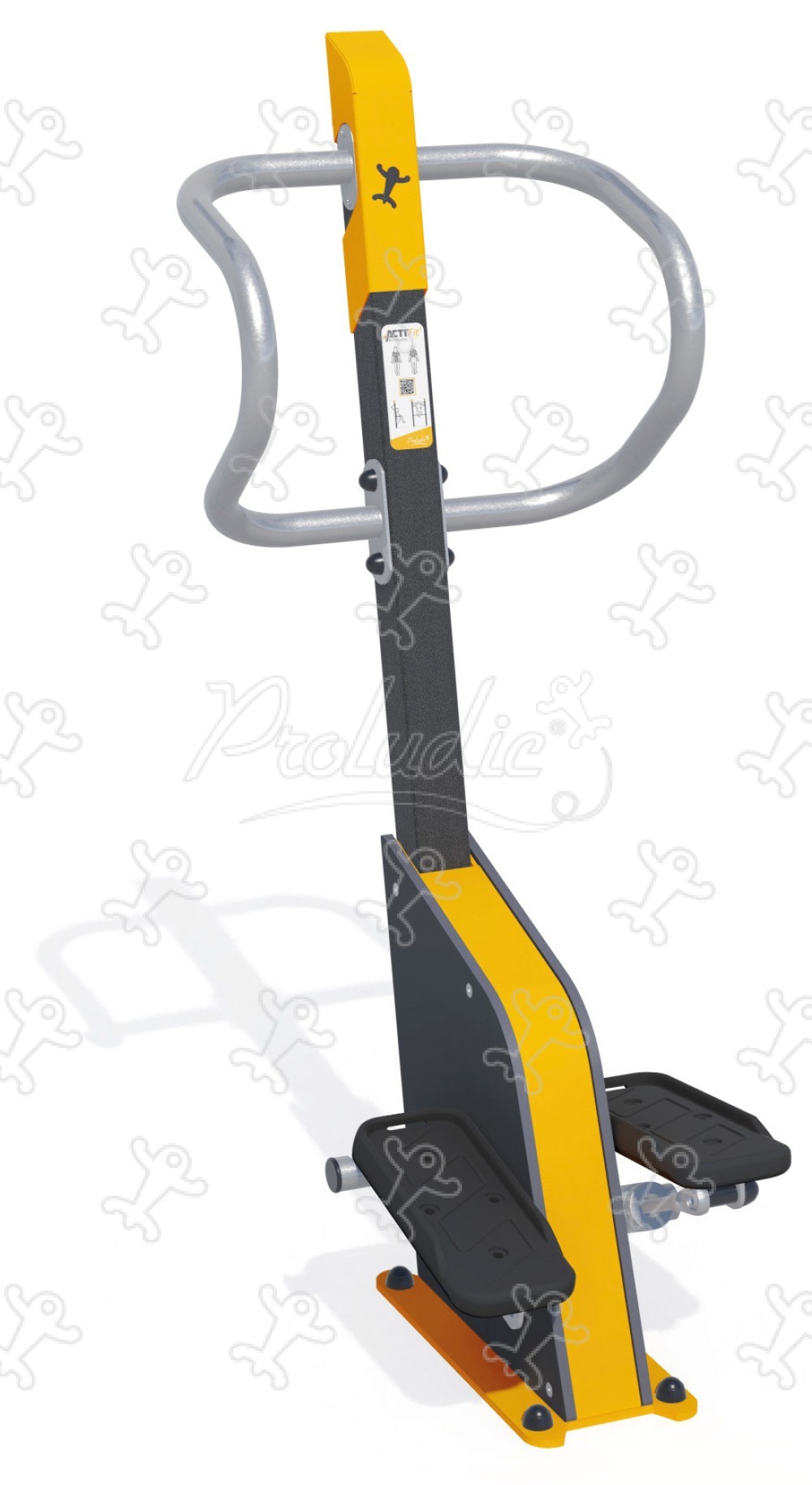

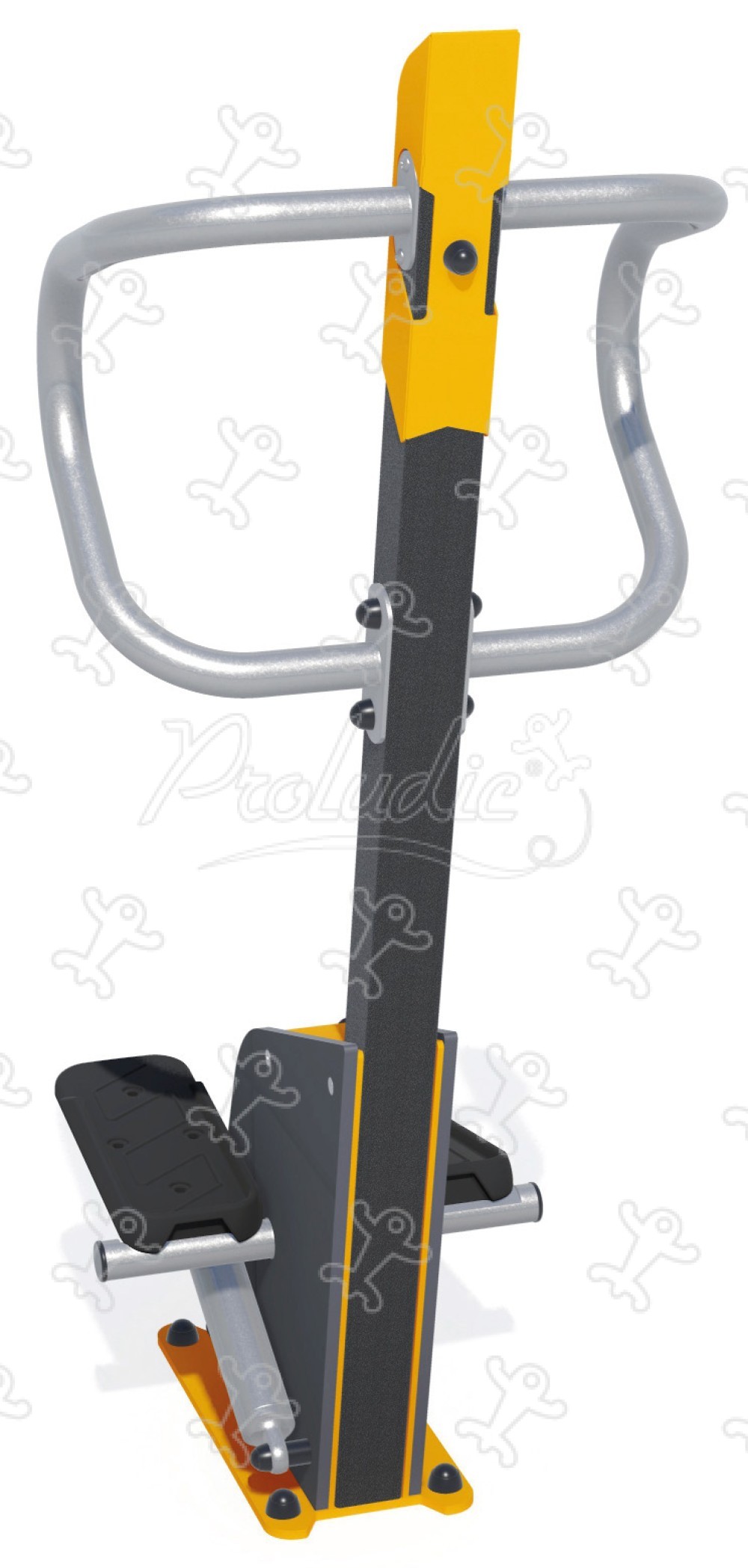

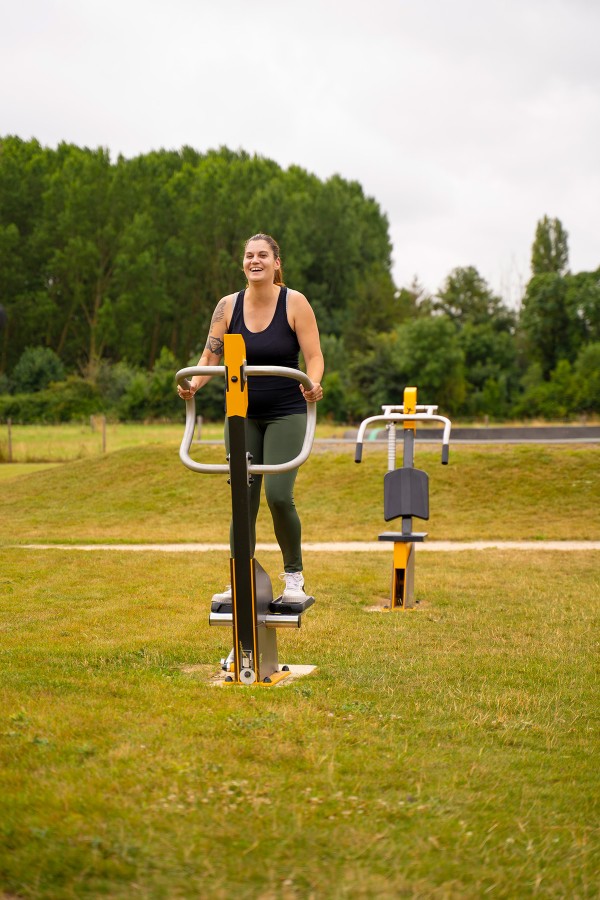

ACTI’Fit - Stepper - J37216®

We have created the reference J37216® in our "ACTI’Fit" range. It can accommodate up to 1 user.

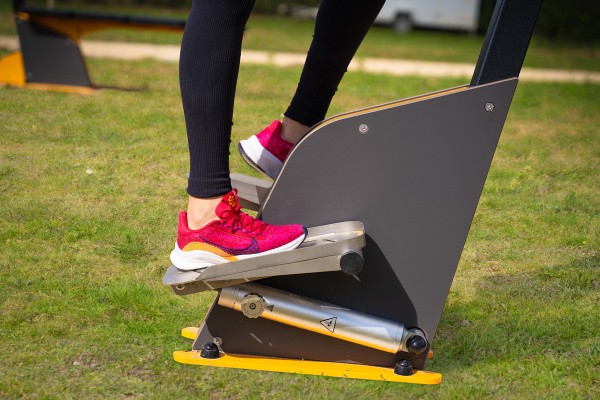

It incorporates a hydraulic piston that makes it possible to adjust the loads to be pulled.

. 6 different load levels (up to 60 kg)

. Two-directional: resistance in both directions of movement and a large travel distance to permit full extension and flexion of the muscles.

The free fall height (FFH) is 0.30m.

3 sports activities

Walking x1

Balancing x1

Resistance x1

3 ludo-sport motivations

Application Acti'Fun

Sensations

Progressive design

Specifications

Minimum size:	> 1.40 m
Number of users:	1 user
FFH :	0.30 m

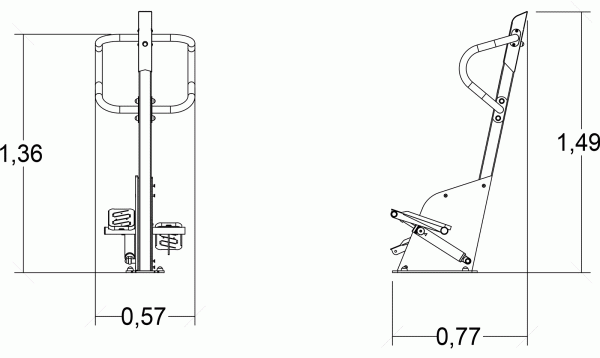

Size:	0.77 x 0.57 x 1.49 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00

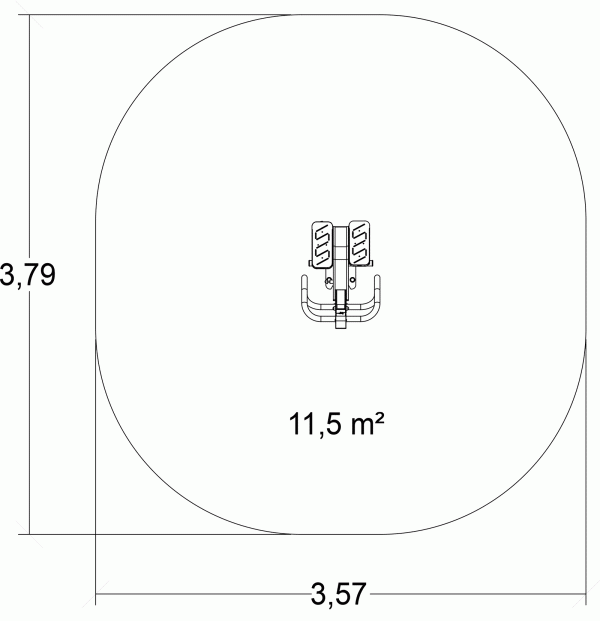

Surface:	11.50 m2
Total weight:	57.10 kg
Weight of the heaviest element:	38.15 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability.

The cap is made of painted stainless steel.

The structure of the equipment is made of painted galvanised steel. The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent... weather and vandal resistance properties. Read more

The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more
