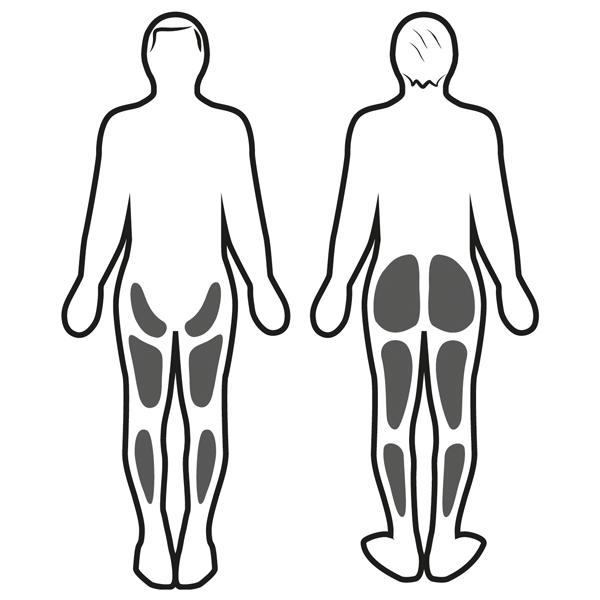

Muscle stimulation

Movement

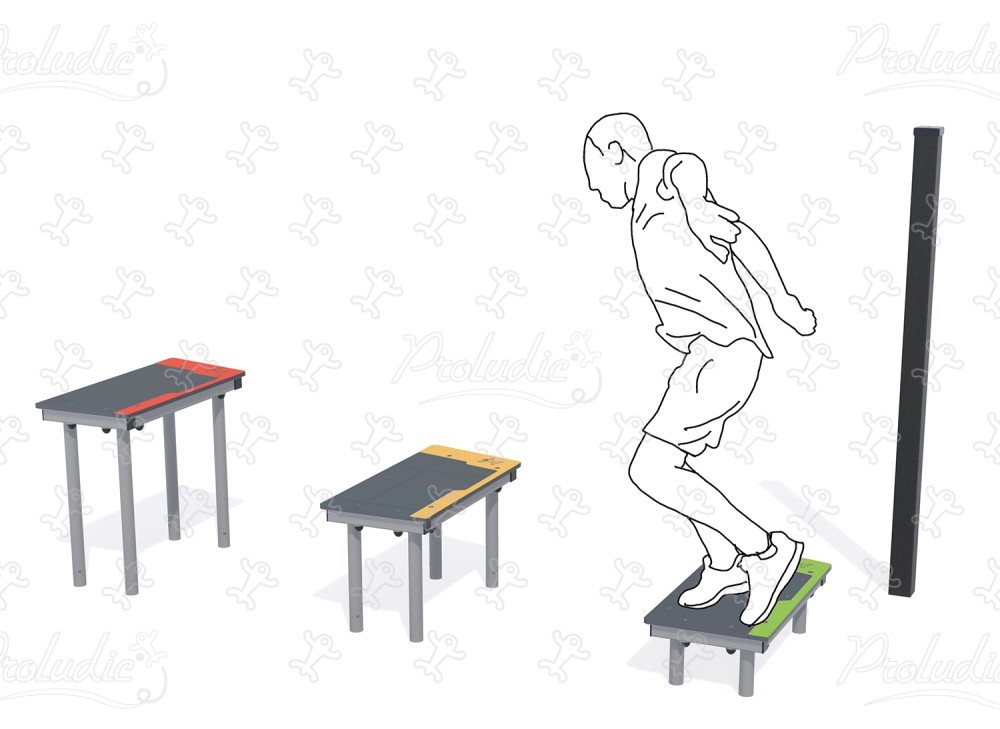

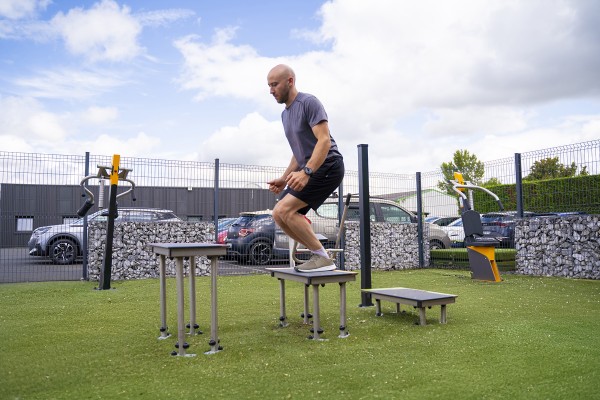

ACTI’Fit - Steps - J37222®

We have created the reference J37222® in our "ACTI’Fit" range. This module is accessible from 10 years. It can accommodate up to 1 user.

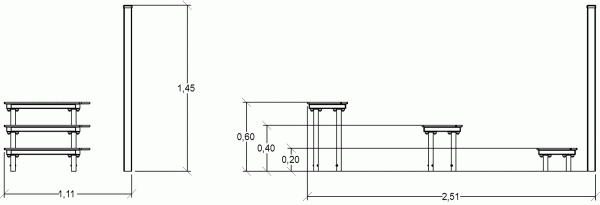

The size of the module is: 2.51 m length, 1.11 m width, 1.45 m. high. The free fall height (FFH) is 0.60 m.

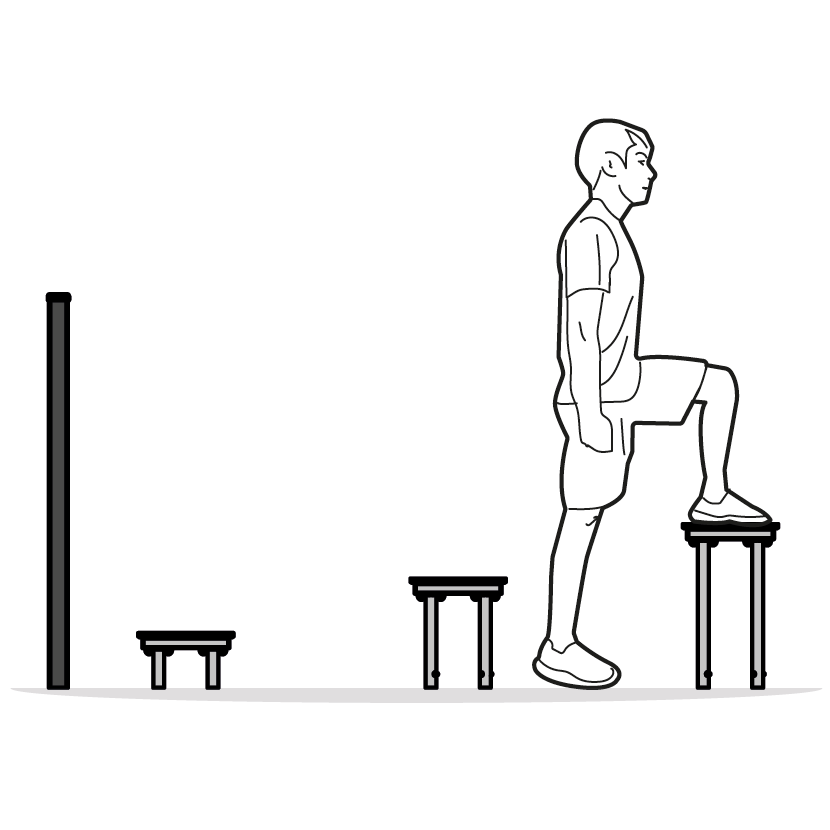

6 sports activities

Balancing x3

Jumping x3

3 ludo-sport motivations

Application Acti'Fun

Progressive design

Challenge

Specifications

Age range:	10+
Number of users:	1 user
FFH :	0.60 m
Size:	2.51 x 1.11 x 1.45 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.36 m3

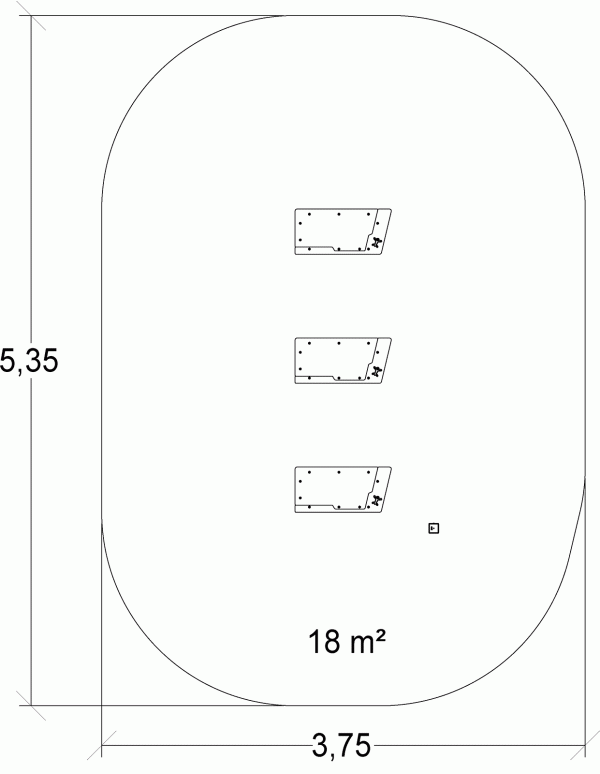

Surface:	18.00 m2
Total weight:	98.10 kg
Weight of the heaviest element:	12.49 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The structure is in galvanised steel.

The plates are machined from non-slip polyethylene panels with a thickness of 12mm in which are embedded compact panels (HPL). The non-slip polyethylene offers... an excellent level of grip and performance over obstacles. Robust in construction, the compact material (HPL) has excellent weather and vandal resistance properties. Read more
