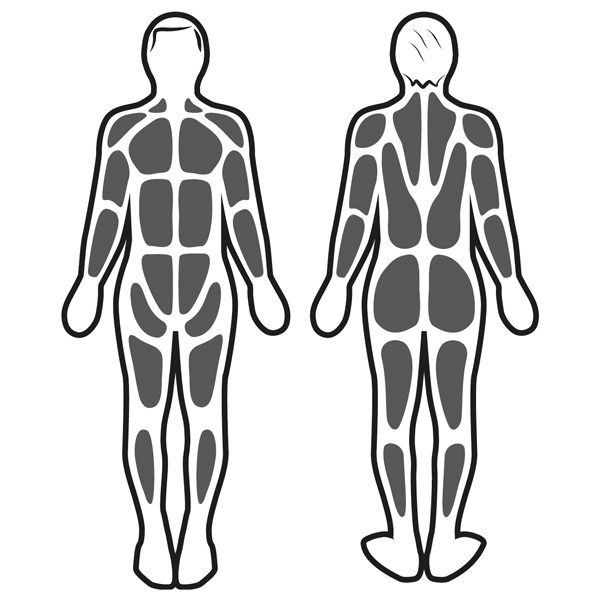

Muscle stimulation

Movement

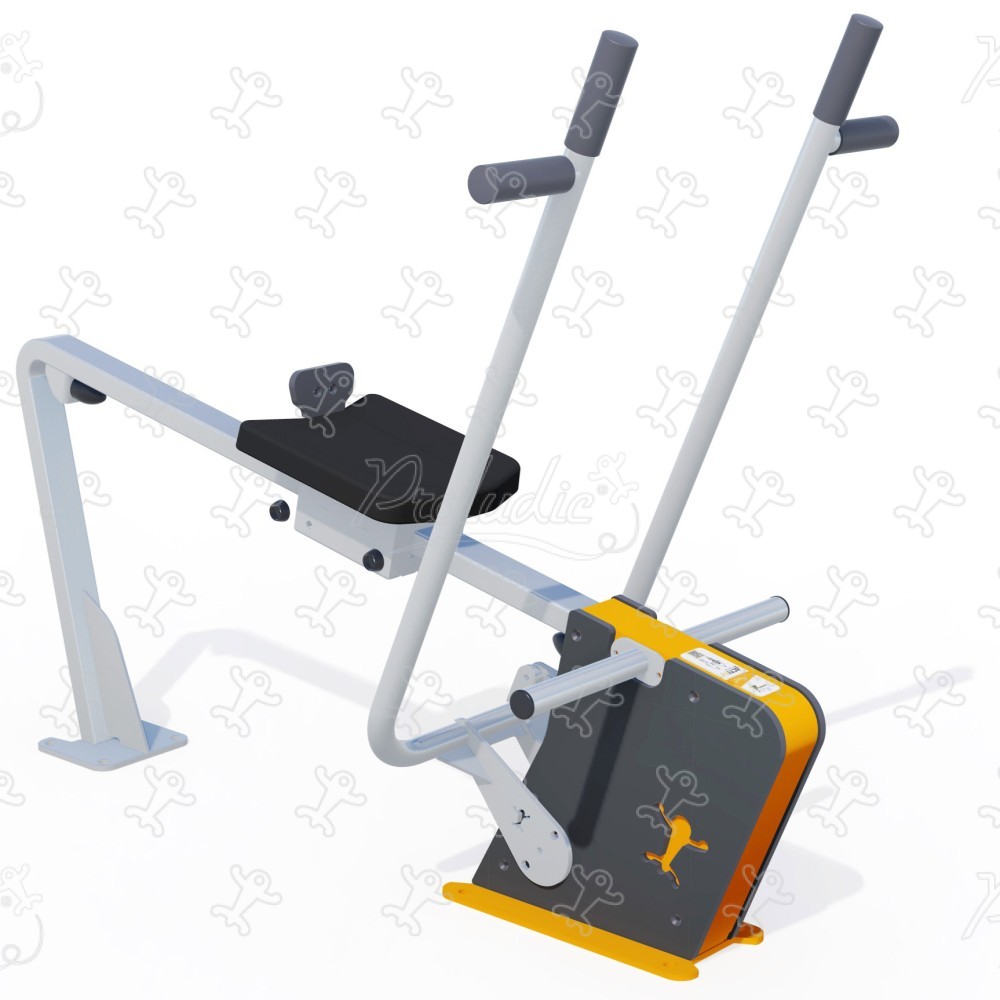

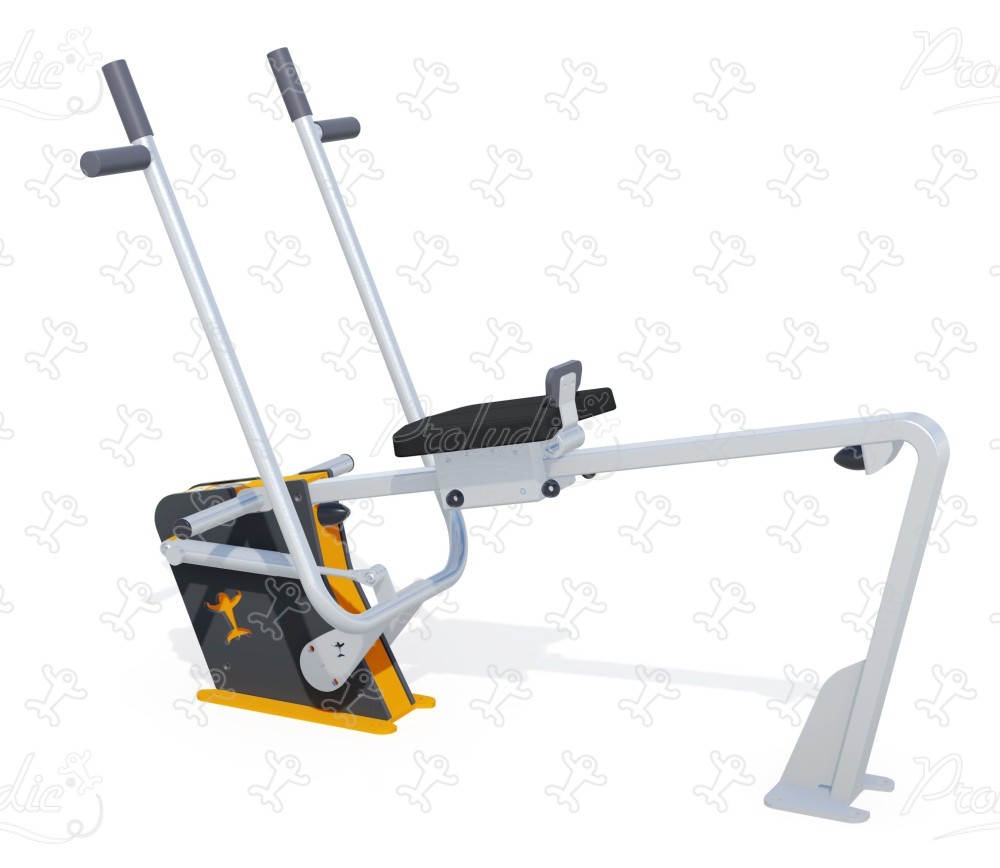

ACTI’Fit - Rower - J37227®

We have created the reference J37227® in our "ACTI’Fit" range. It can accommodate up to 1 user.

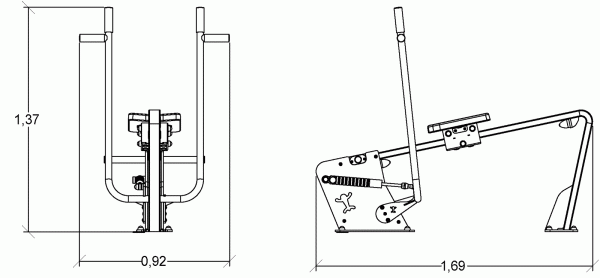

The size of the module is: 1.82 m length, 0.92 m width, 1.37 m. high. The free fall height (FFH) is 0.80 m.

1 sporting activity

Rowing x1

Specifications

Minimum size:	> 1.40 m
Number of users:	1 user
FFH :	0.80 m
Size:	1.82 x 0.92 x 1.37 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.42 m3

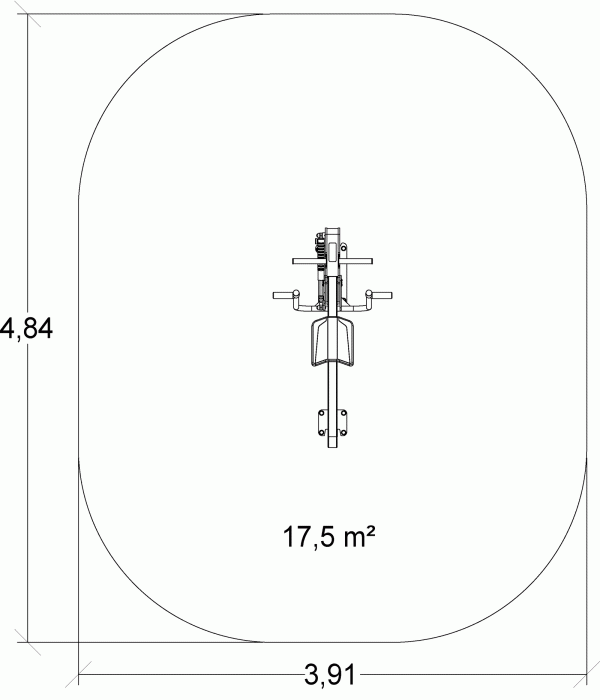

Surface:	17.50 m2
Total weight:	68.81 kg
Weight of the heaviest element:	40.85 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Materials

The structure of the equipment is made of painted galvanised steel. The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent... weather and vandal resistance properties. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The handles are made of polyvinyl chloride.

The polyurethane foam seat ensures lasting comfort. Polyurethane foam is a resistant and shape memory material that helps to prevent overheating.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
