Diabolo - J38103

We have created the reference J38103 in our "Diabolo" range. This module is accessible from 3 years. It can accommodate up to 23 users.

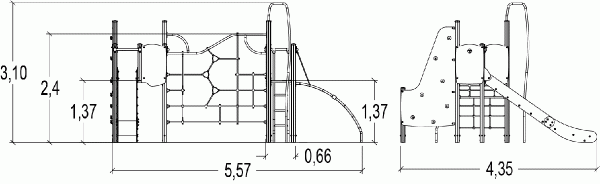

The size of the module is: 5.57 m length, 4.35 m width, 3.10 m. high. The free fall height (FFH) is 2.60 m.

Other finishes available

J38103-C

Specifications

Age range:	3+
Number of users:	23 users
FFH :	2.60 m
Size:	5.57 x 4.35 x 3.10 m

Equipment installation

Number of installers:	2
Installation time:	18:00:00
Concrete volume:	0.50 m3

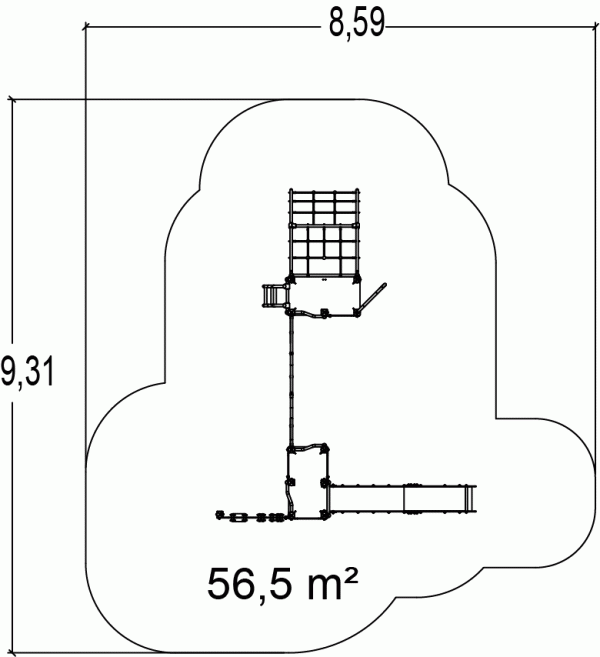

Surface:	56.50 m2
Total weight:	438.72 kg
Weight of the heaviest element:	33.87 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
