Diabolo
J38104

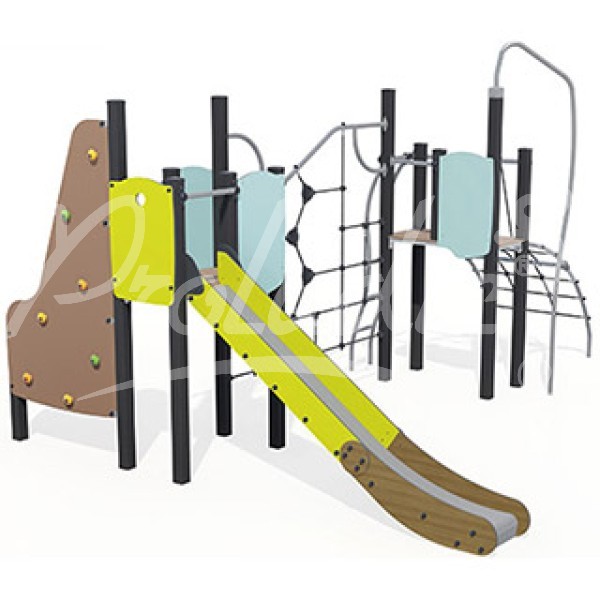

We have created the reference J38104 in our "Diabolo" range. This module is accessible from 3 years. It can accommodate up to 20 users.

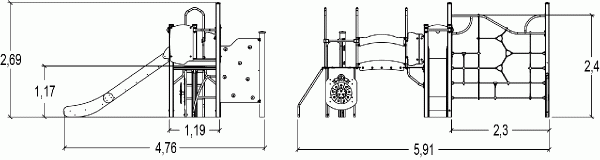

The size of the module is: 5.92 m length, 4.71 m width, 2.70 m. high. The free fall height (FFH) is 2.40 m.
| Age range: | 3+ |
| Number of users: | 20 users |
| FFH : | 2.40 m |
| Size: | 5.92 x 4.71 x 2.70 m |
| Number of installers: | 2 |
| Installation time: | 19:00:00 |
| Concrete volume: | 0.45 m3 |

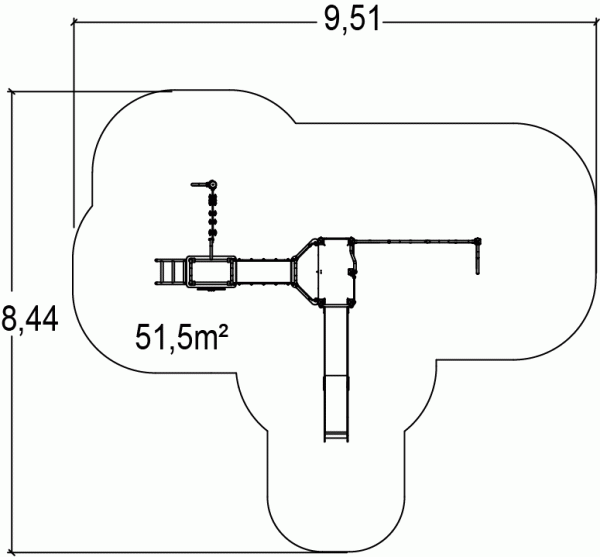

| Surface: | 51.50 m2 |
| Total weight: | 433.44 kg |
| Weight of the heaviest element: | 32.11 kg |
Repairability
9.48 /10
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.
The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.
The net fittings are made of polyamide and are used to link three cords together.
The 16mm diameter rope is made of galvanised steel cable covered with polyester.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
