Diabolo - J38116

We have created the reference J38116 in our "Diabolo" range. This module is accessible from 3 years. It can accommodate up to 17 users.

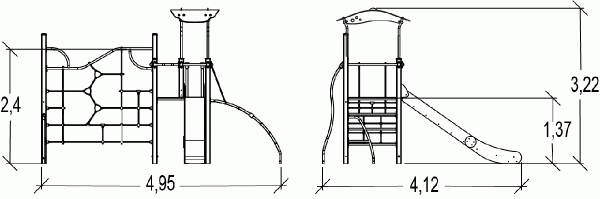

The size of the module is: 4.95 m length, 4.12 m width, 3.22 m. high. The free fall height (FFH) is 2.40 m.

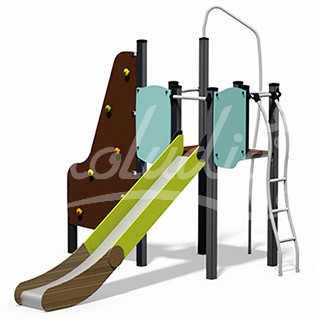

Other finishes available

J38116-C

Specifications

Age range:	3+
Number of users:	17 users
FFH :	2.40 m
Size:	4.95 x 4.12 x 3.22 m

Equipment installation

Number of installers:	2
Installation time:	10:00:00
Concrete volume:	0.30 m3

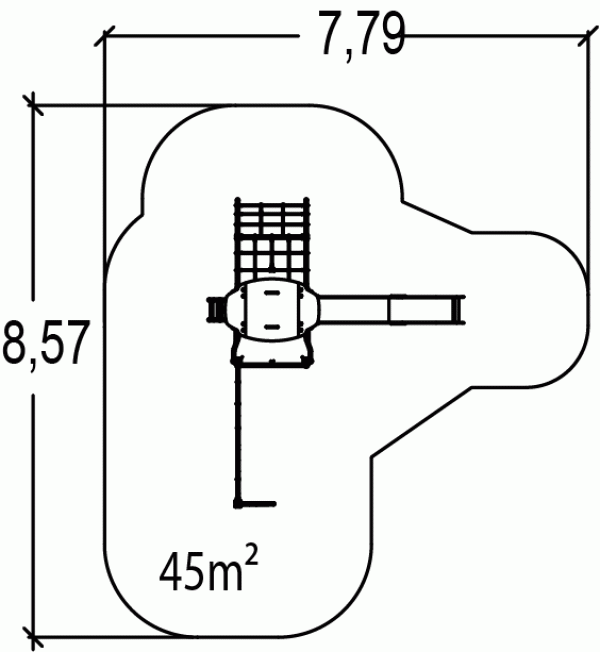

Surface:	45.00 m2
Total weight:	327.19 kg
Weight of the heaviest element:	22.14 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The roof is made of 10mm thick polyethylene plates.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide and are used to link three cords together.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
