Diabolo - J38125-C

We have created the reference J38125-C in our "Diabolo" range. This module is accessible from 2 years. It can accommodate up to 12 users.

The size of the module is: 3.49 m length, 2.80 m width, 2.01 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

J38125

31 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x8

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Thinking x5

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x8

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x3

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Role play x3

Role play promotes the child's intellectual and social skills.

Specifications

Age range:	2+
Number of users:	12 users
FFH :	1.00 m
Size:	3.49 x 2.80 x 2.01 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.30 m3

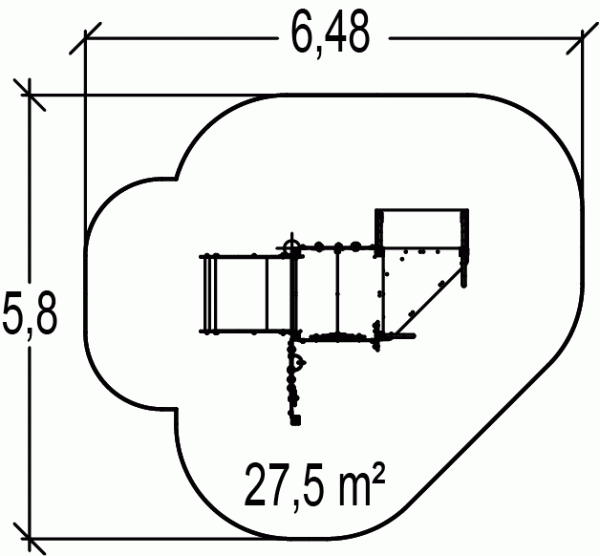

Surface:	27.50 m2
Total weight:	304.09 kg
Weight of the heaviest element:	26.57 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The abacus spheres are made of polycarbonate sheets.

Plastic parts are made of injected polyamide.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
