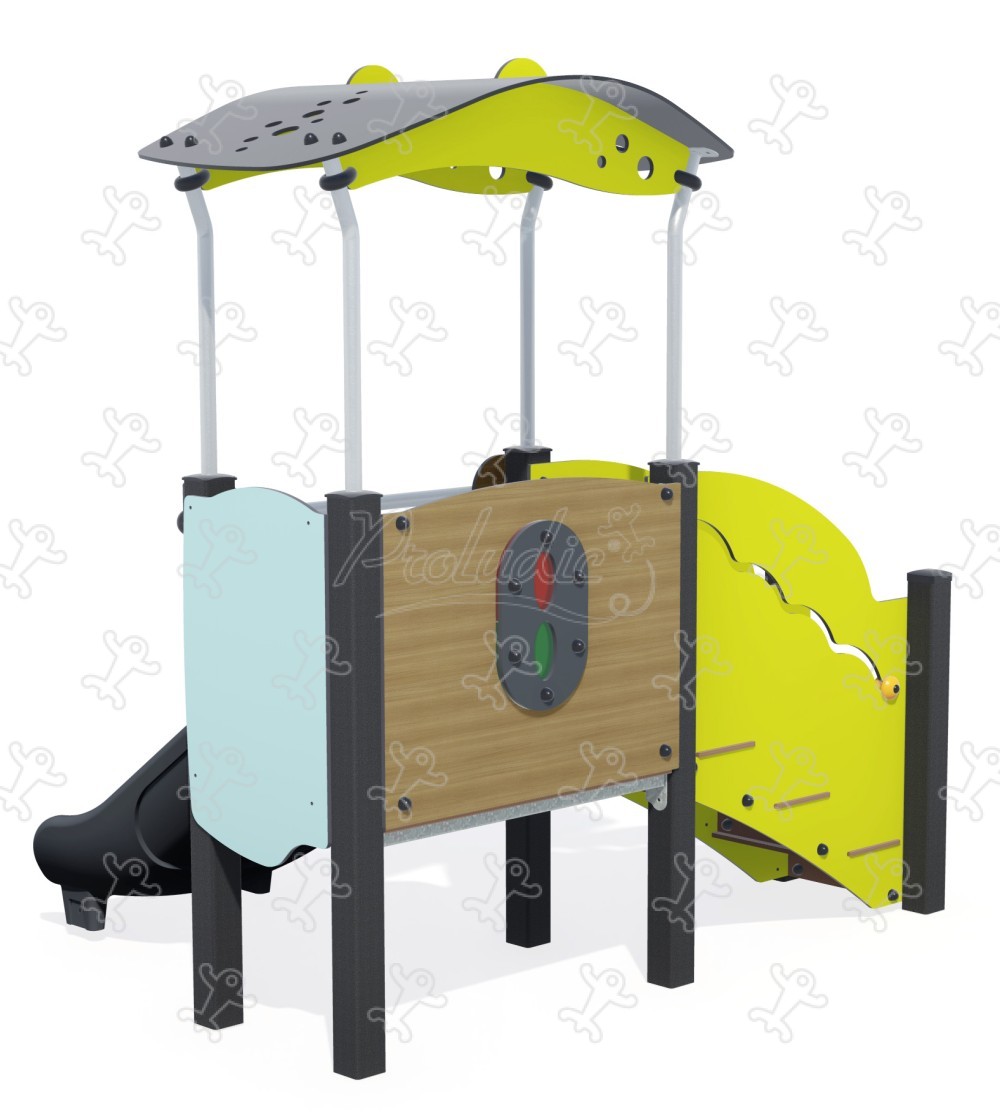

Diabolo - J38132-C®

We have created the reference J38132-C® in our "Diabolo" range. This module is accessible from 2 years. It can accommodate up to 6 users.

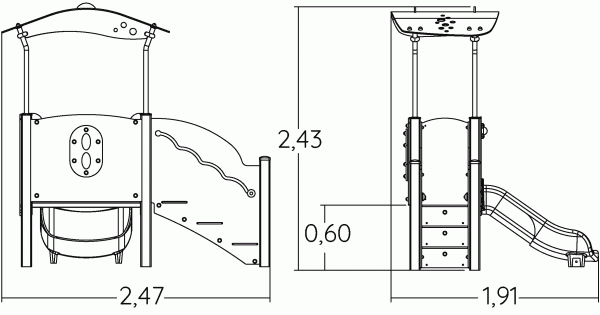

The size of the module is: 2.47 m length, 1.91 m width, 2.43 m. high. The free fall height (FFH) is 0.60 m.

Other finishes available

J38132®

7 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	2+
Number of users:	6 users
FFH :	0.60 m
Size:	2.47 x 1.91 x 2.43 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.22 m3
Surface:	20.50 m2
Total weight:	263.78 kg
Weight of the heaviest element:	54.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the steps are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The roof is made of 10mm thick polyethylene plates.

The slide is made of rotomoulded polyethylene.

The colour goggles are made from 8mm thick methacrylate (PMMA).

Plastic parts are made of injected polyamide.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
