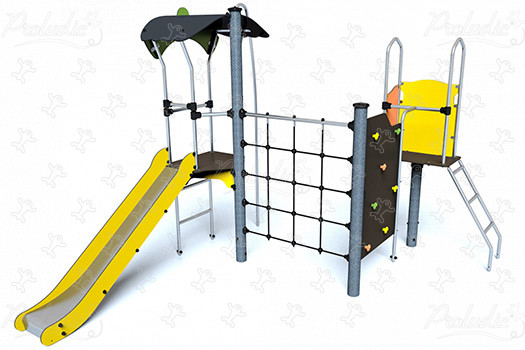

Diabolo - J3833

We have created the reference J3833 in our "Diabolo" range. This module is accessible from 3 years. It can accommodate up to 22 users.

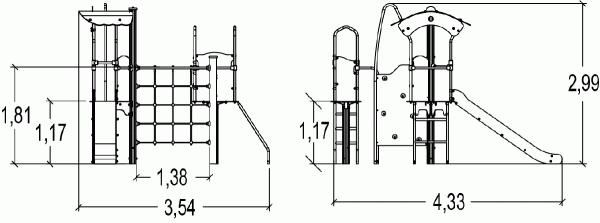

The size of the module is: 4.33 m length, 3.54 m width, 2.99 m. high. The free fall height (FFH) is 2.00 m.

Other finishes available

J3833-C

10 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	3+
Number of users:	22 users
FFH :	2.00 m
Size:	4.33 x 3.54 x 2.99 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00
Concrete volume:	0.40 m3
Surface:	37.00 m2
Total weight:	272.13 kg
Weight of the heaviest element:	32.11 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
