Diabolo - J3858

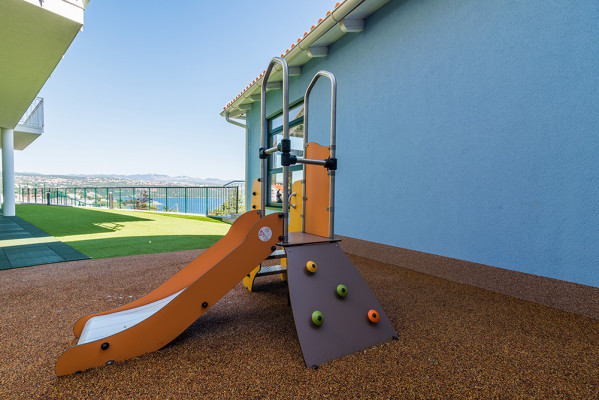

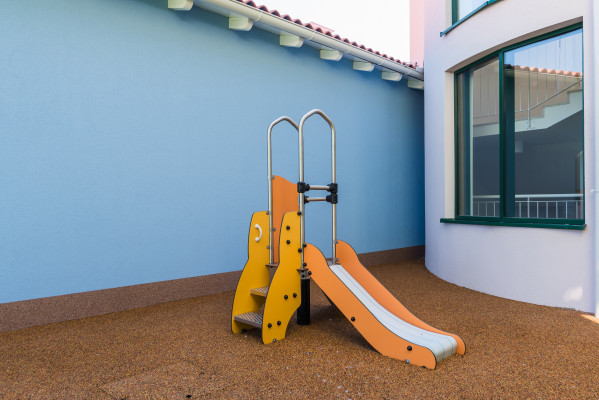

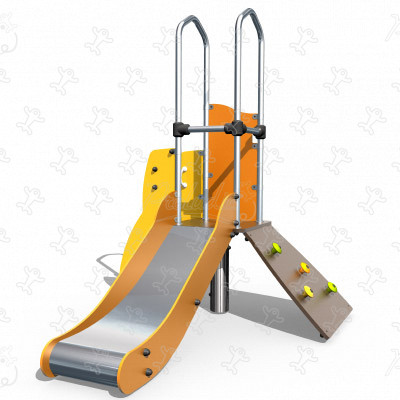

We have created the reference J3858 in our "Diabolo" range. This module is accessible from 2 years. It can accommodate up to 10 users.

The size of the module is: 1.83 m length, 1.52 m width, 2.00 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

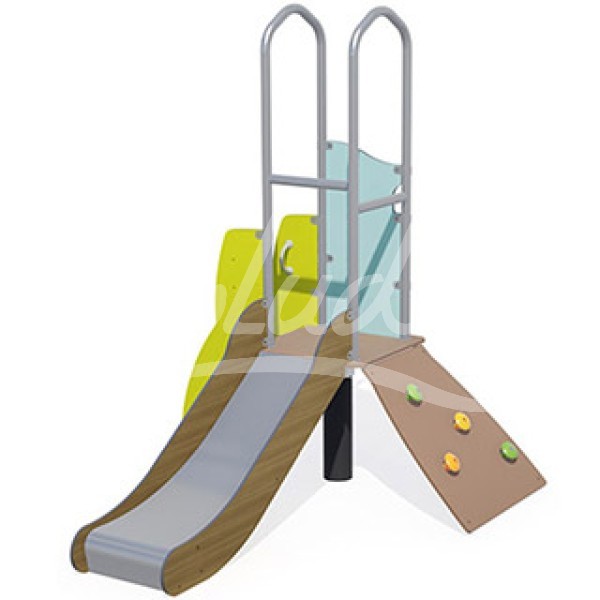

J3858-C

4 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Specifications

Age range:	2 - 10
Number of users:	10 users
FFH :	1.00 m
Size:	1.83 x 1.52 x 2.00 m

Equipment installation

Number of installers:	2
Installation time:	15:00:00
Concrete volume:	0.19 m3

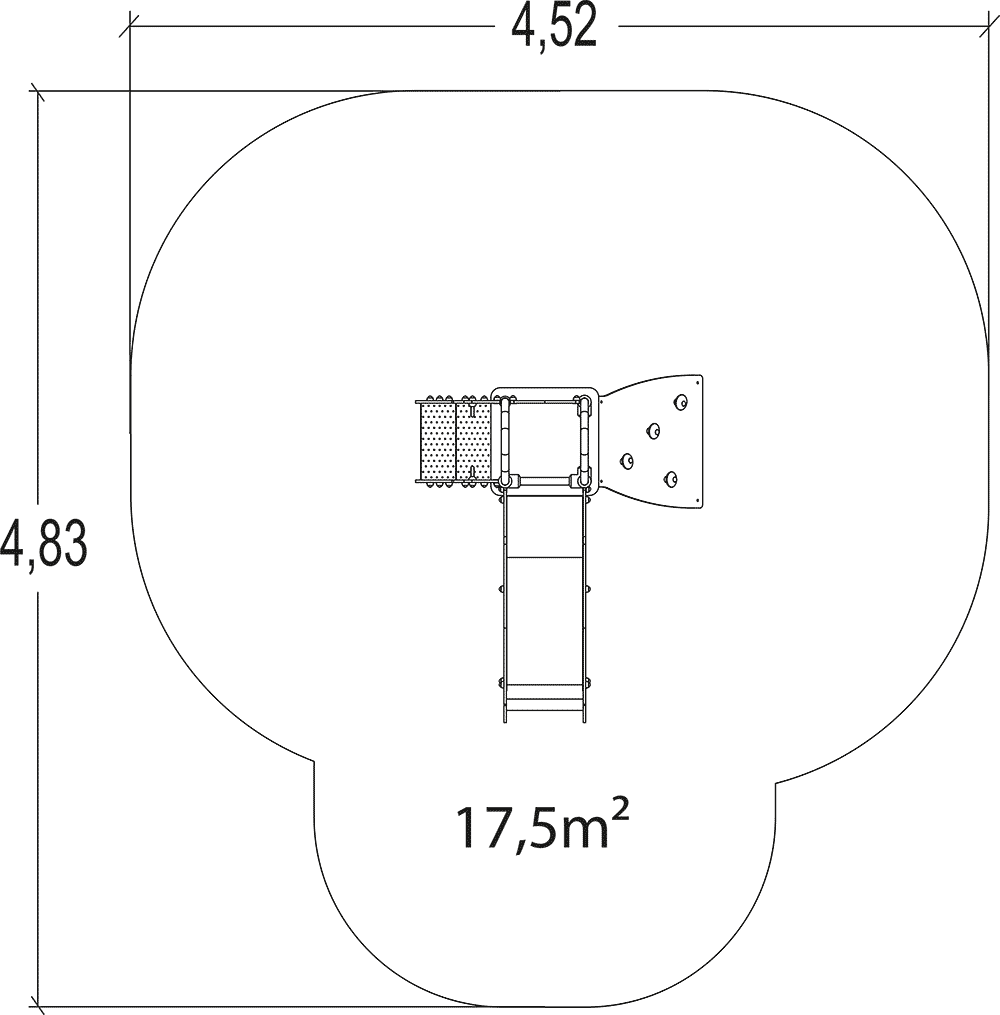

Surface:	17.50 m2
Total weight:	91.05 kg
Weight of the heaviest element:	10.17 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The sliding surfaces are made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

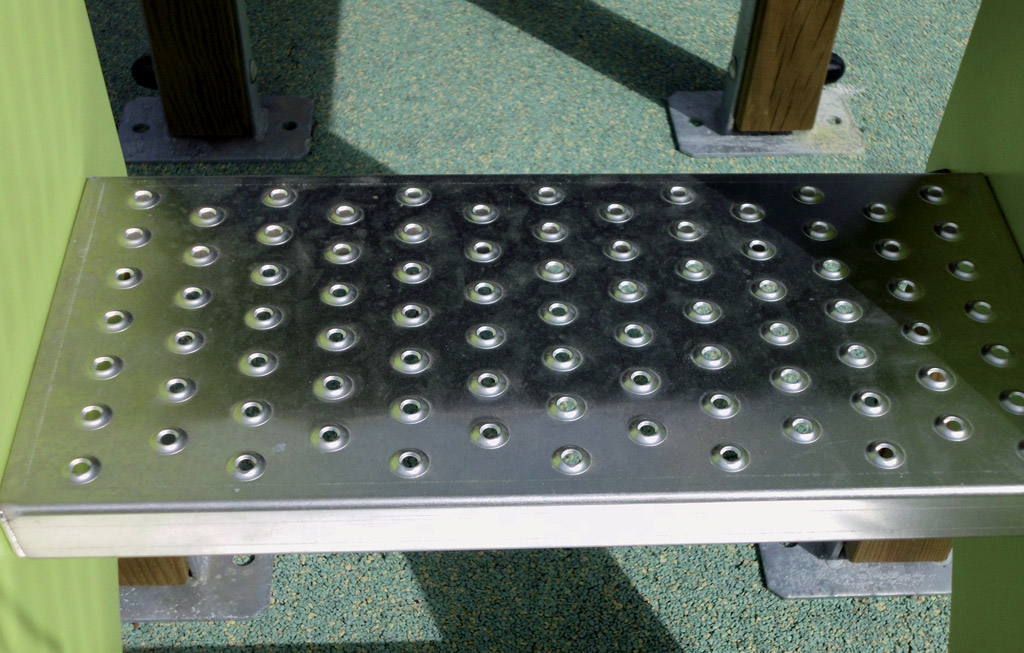

The anti-slip steps are made of corrugated aluminium sheets ensuring durability and lasting good looks.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
