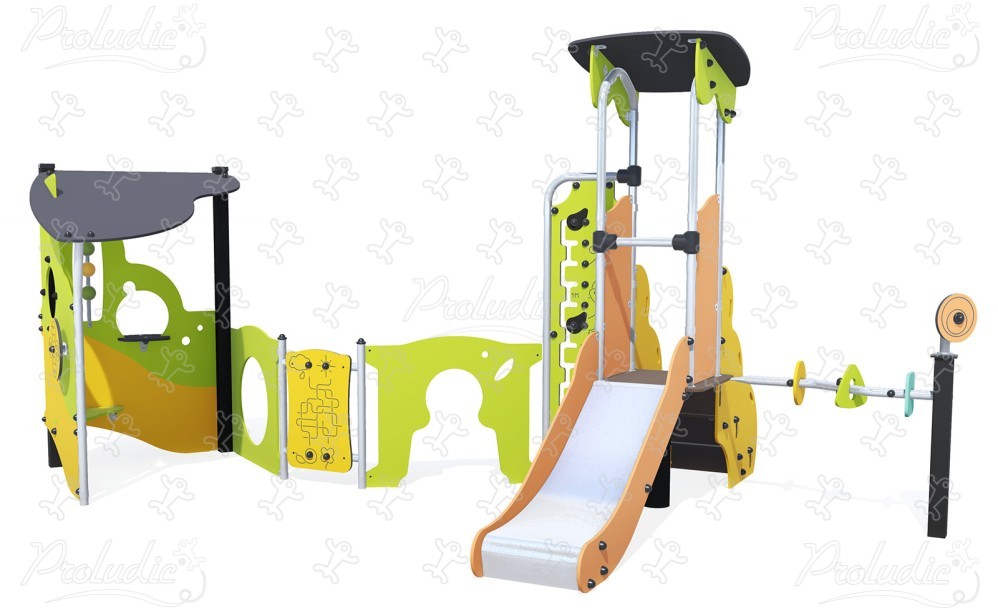

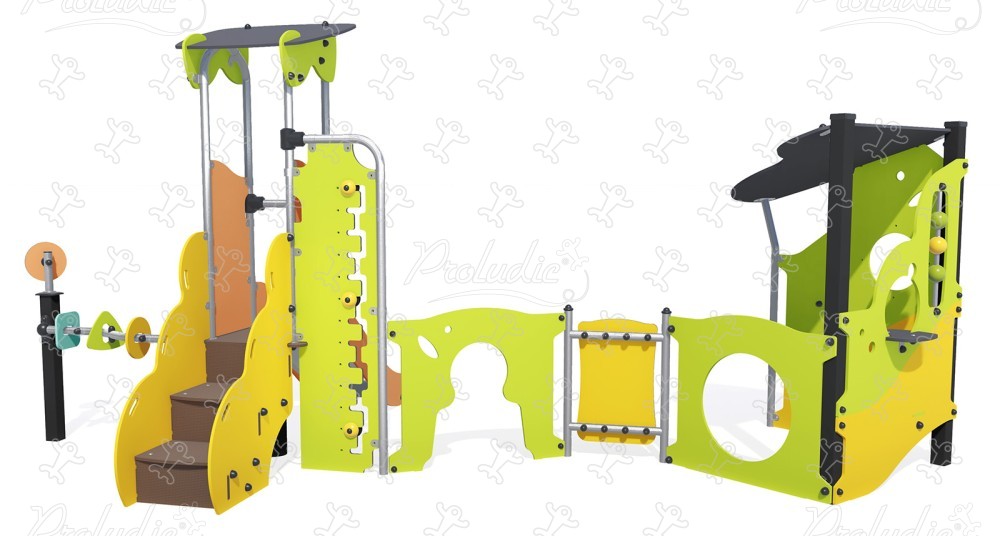

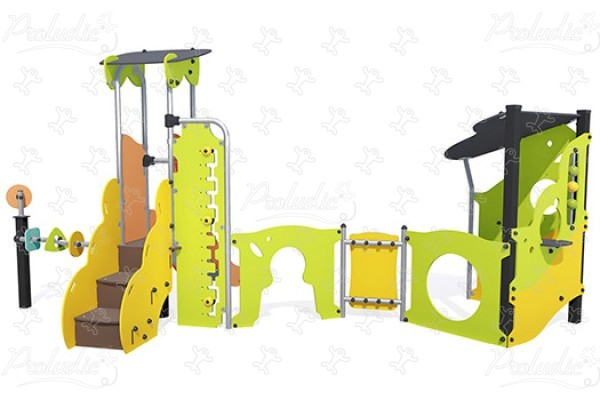

Diabolo Baby - J38707®

We have created the reference J38707® in our "Diabolo Baby" range. This module is accessible from 0,5 years. It can accommodate up to 20 users.

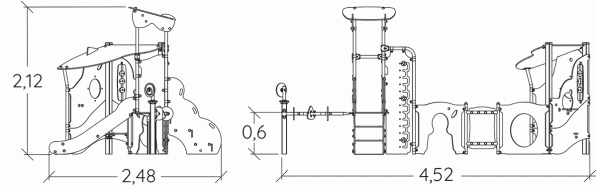

The size of the module is: 4.52 m length, 2.48 m width, 2.12 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

J38707-C®

29 play functions

Role play x2

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x5

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x2

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Taking shelter x2

Finding a small refuge to shelter in ensures children have a space of their own.

Thinking x3

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x6

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x2

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x2

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	0,5+
Number of users:	20 users
FFH :	1.00 m
Size:	4.52 x 2.48 x 2.12 m

Equipment installation

Number of installers:	2
Installation time:	07:00:00
Concrete volume:	0.32 m3
Surface:	31.00 m2
Total weight:	255.31 kg
Weight of the heaviest element:	16.07 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the steps are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
