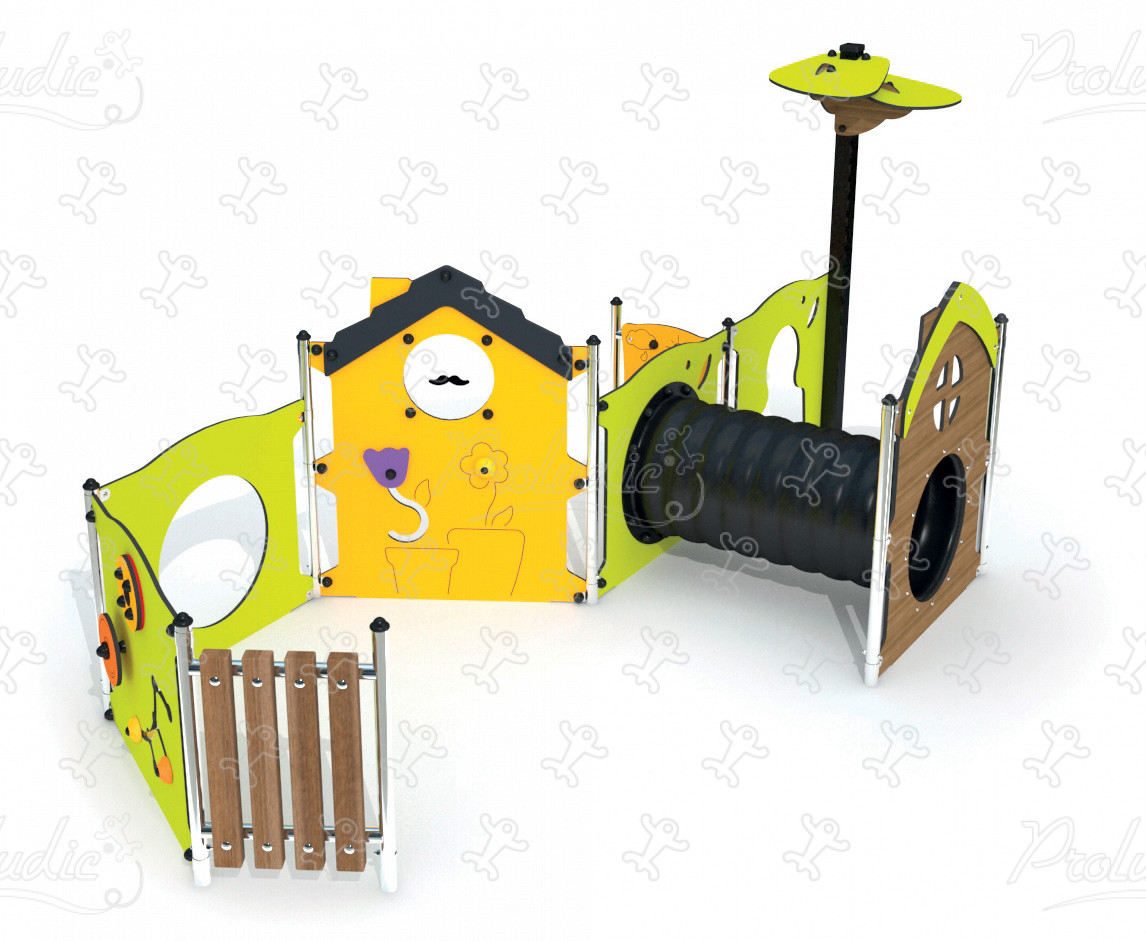

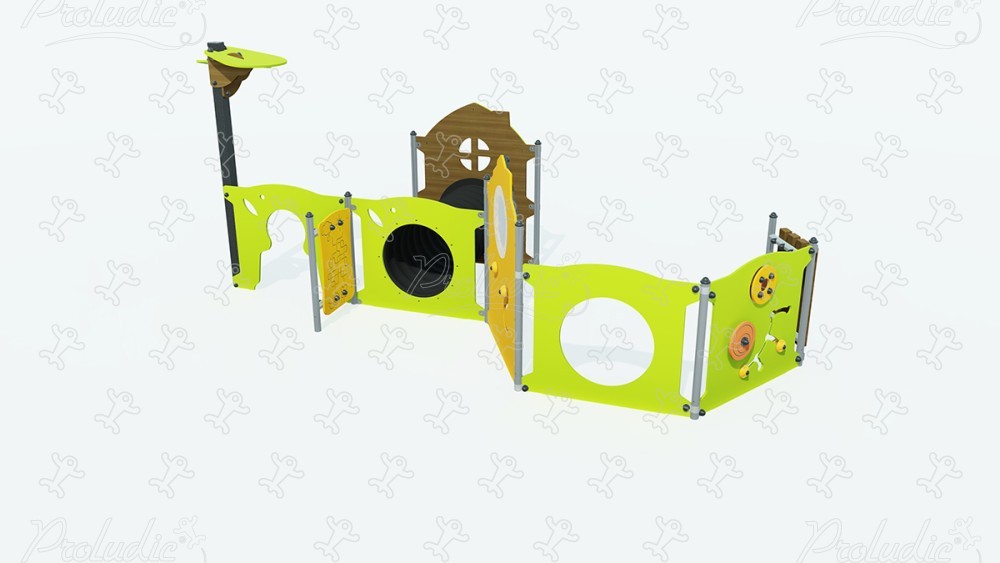

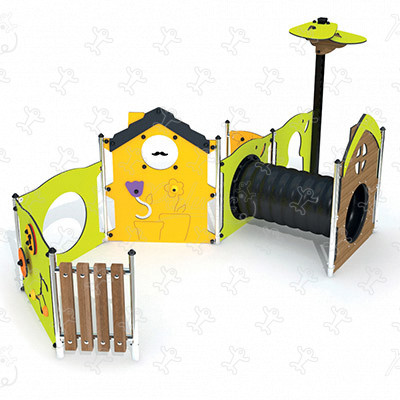

Diabolo Baby - J38709®

We have created the reference J38709® in our "Diabolo Baby" range. This module is accessible from 0,5 years. It can accommodate up to 12 users.

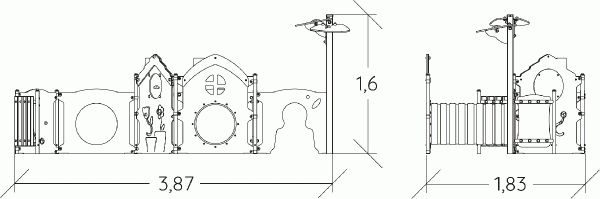

The size of the module is: 3.87 m length, 1.83 m width, 1.60 m. high. The free fall height (FFH) is 0.60 m.

Other finishes available

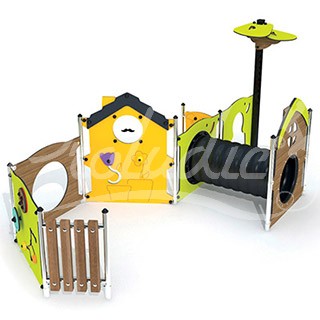

J38709-C®

21 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x3

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x3

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Thinking x2

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x4

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x3

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Getting across x3

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	0,5+
Number of users:	12 users
FFH :	0.60 m
Size:	3.87 x 1.83 x 1.60 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00
Concrete volume:	0.27 m3
Surface:	27.00 m2
Total weight:	141.42 kg
Weight of the heaviest element:	15.92 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
