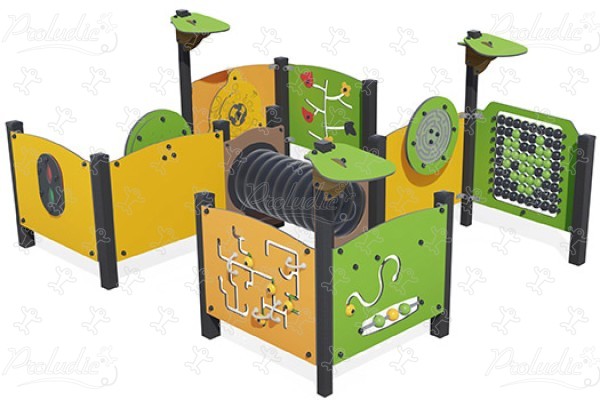

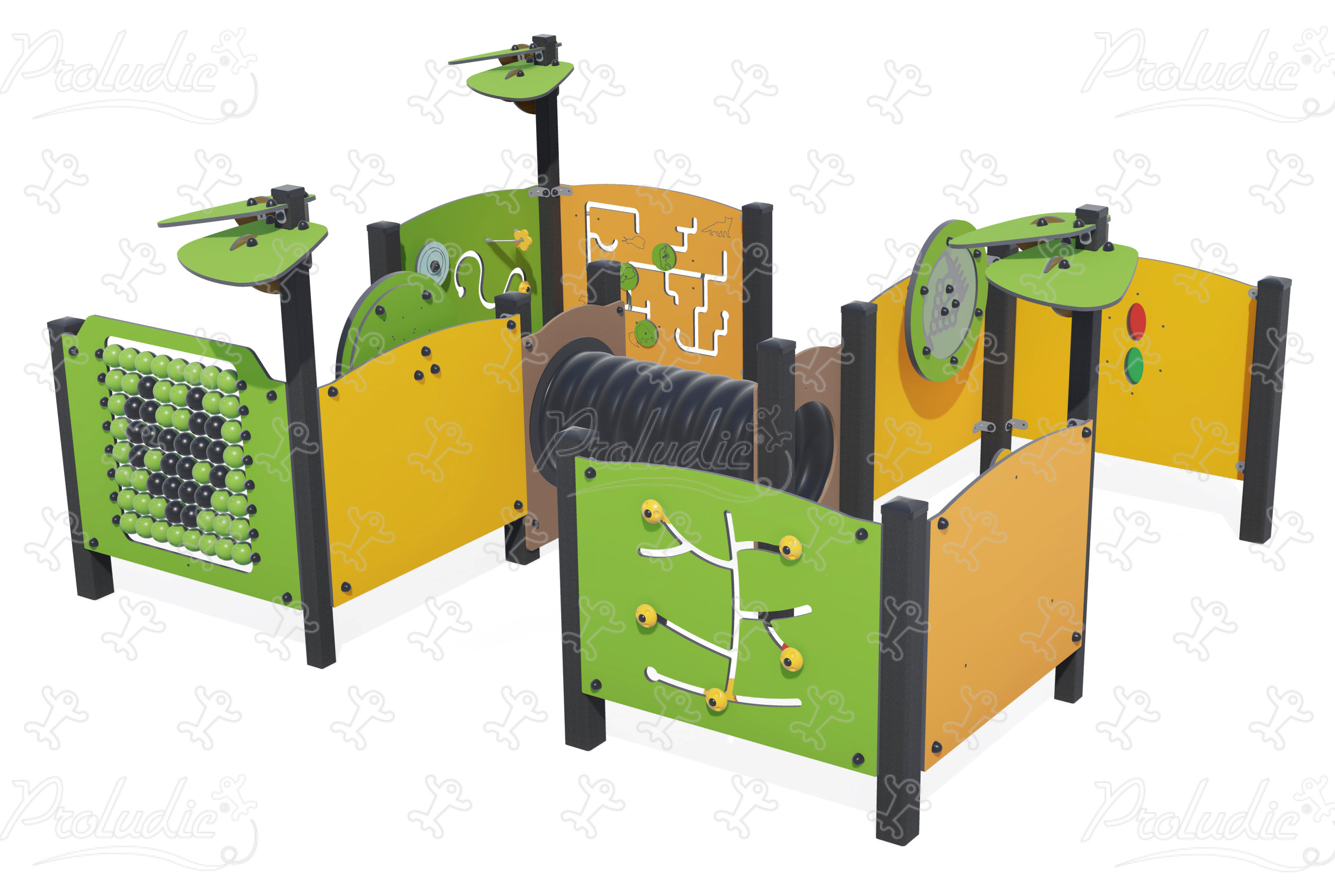

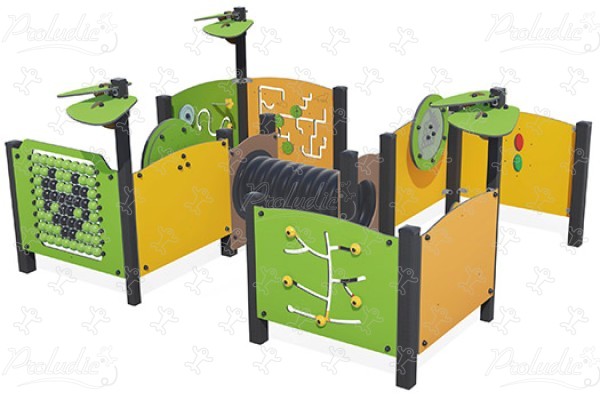

Diabolo - Sensory Labyrinth - J38712®

We have created the reference J38712® in our "Diabolo" range. This module is accessible from 2 years. It can accommodate up to 17 users.

The size of the module is: 3.94 m length, 3.34 m width, 1.60 m. high. The free fall height (FFH) is 0.60 m.

40 play functions

Role play x5

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x10

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Thinking x9

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x10

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x2

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	2+
Number of users:	17 users
FFH :	0.60 m

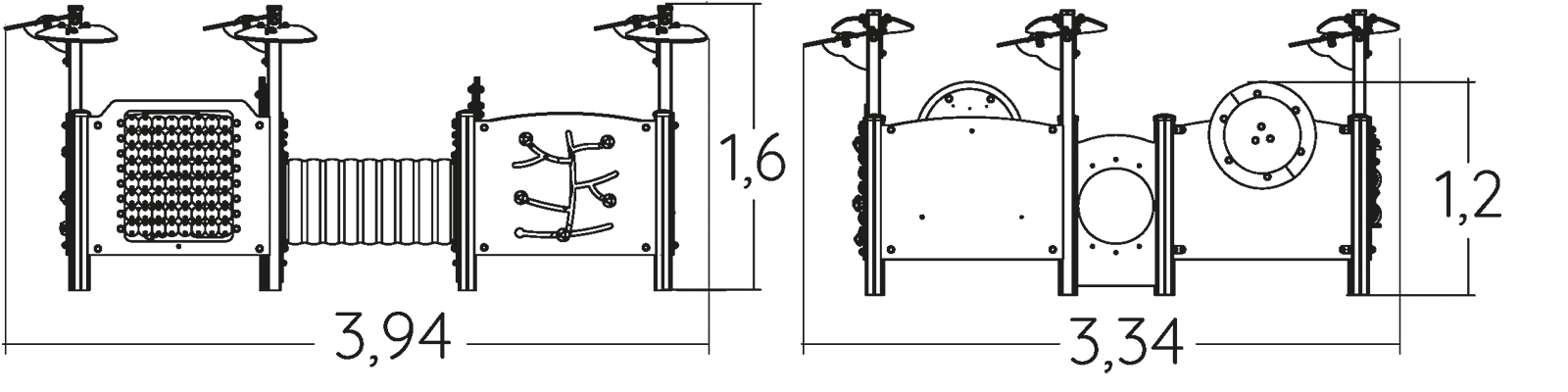

Size:	3.94 x 3.34 x 1.60 m

Equipment installation

Number of installers:	2
Installation time:	10:00:00
Concrete volume:	0.40 m3

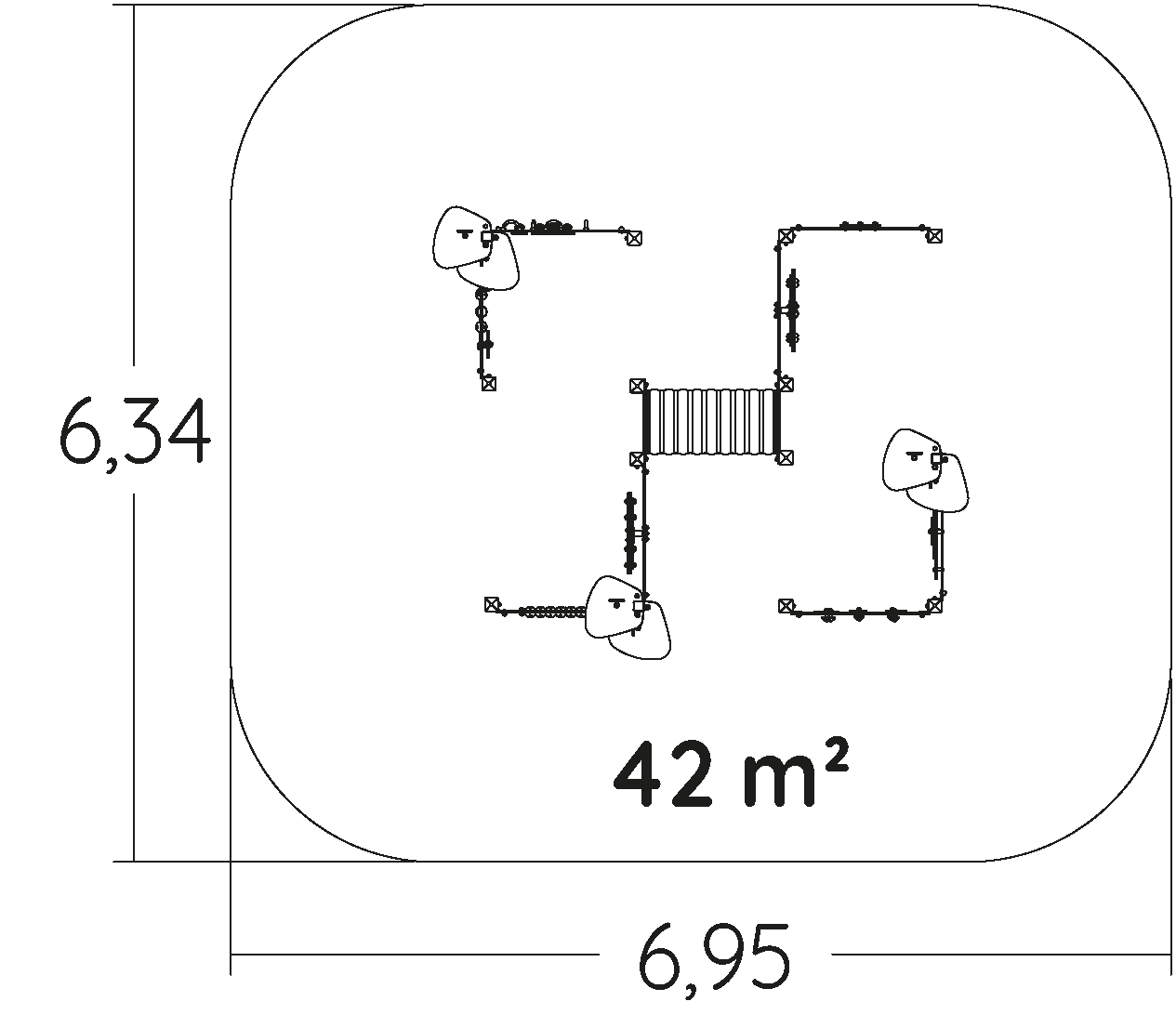

Surface:	42.00 m2
Total weight:	363.76 kg
Weight of the heaviest element:	20.82 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tunnel is made of 100% recycled rotomolded polyethylene, 45cm in diameter (RAL 9005).

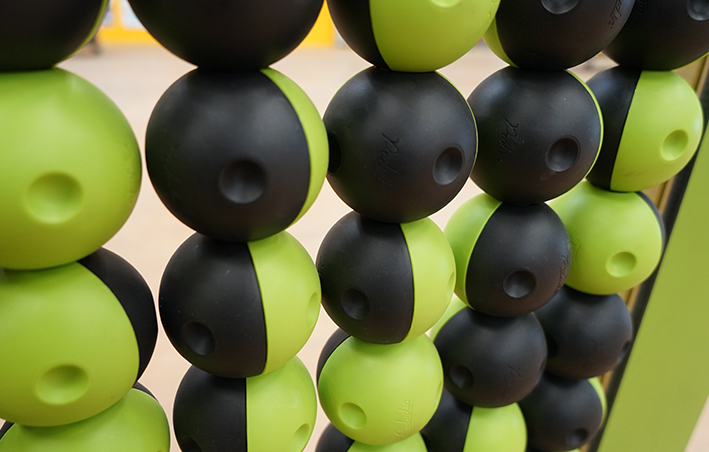

The abacus spheres are made of polycarbonate sheets.

Plastic parts are made of injected polyamide.

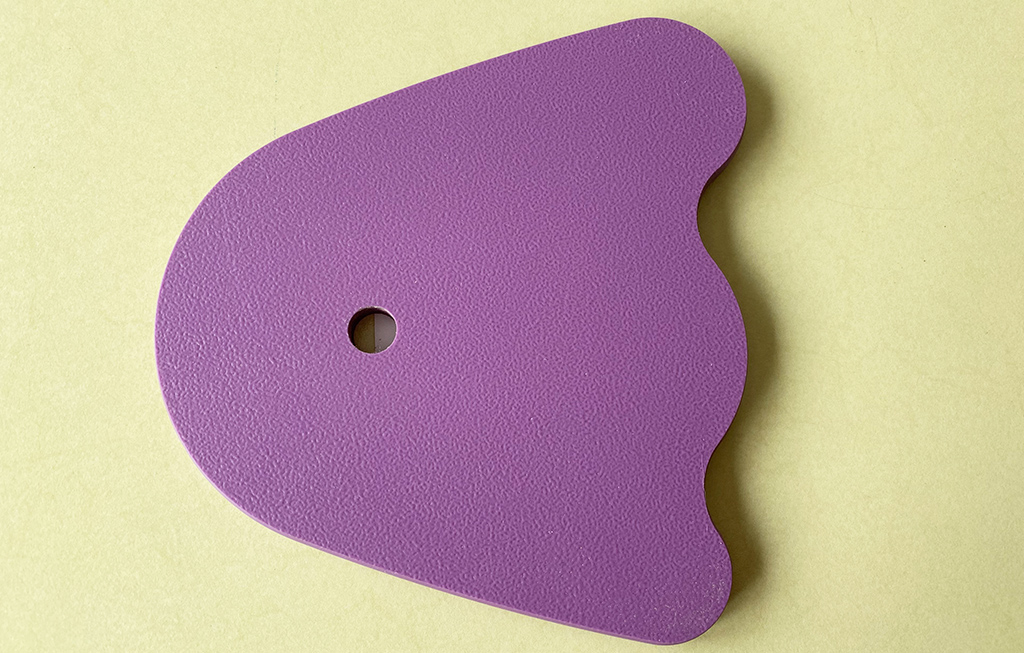

The flowers are made of 13 mm thick polyethylene.

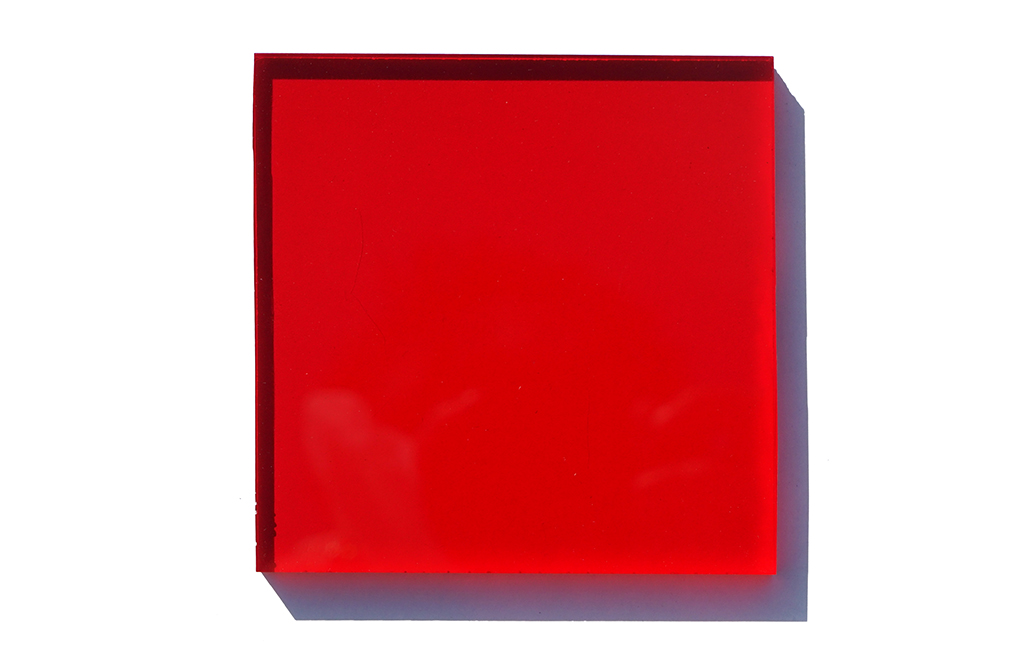

The portholes are made from 8mm thick methacrylate (PMMA).

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
