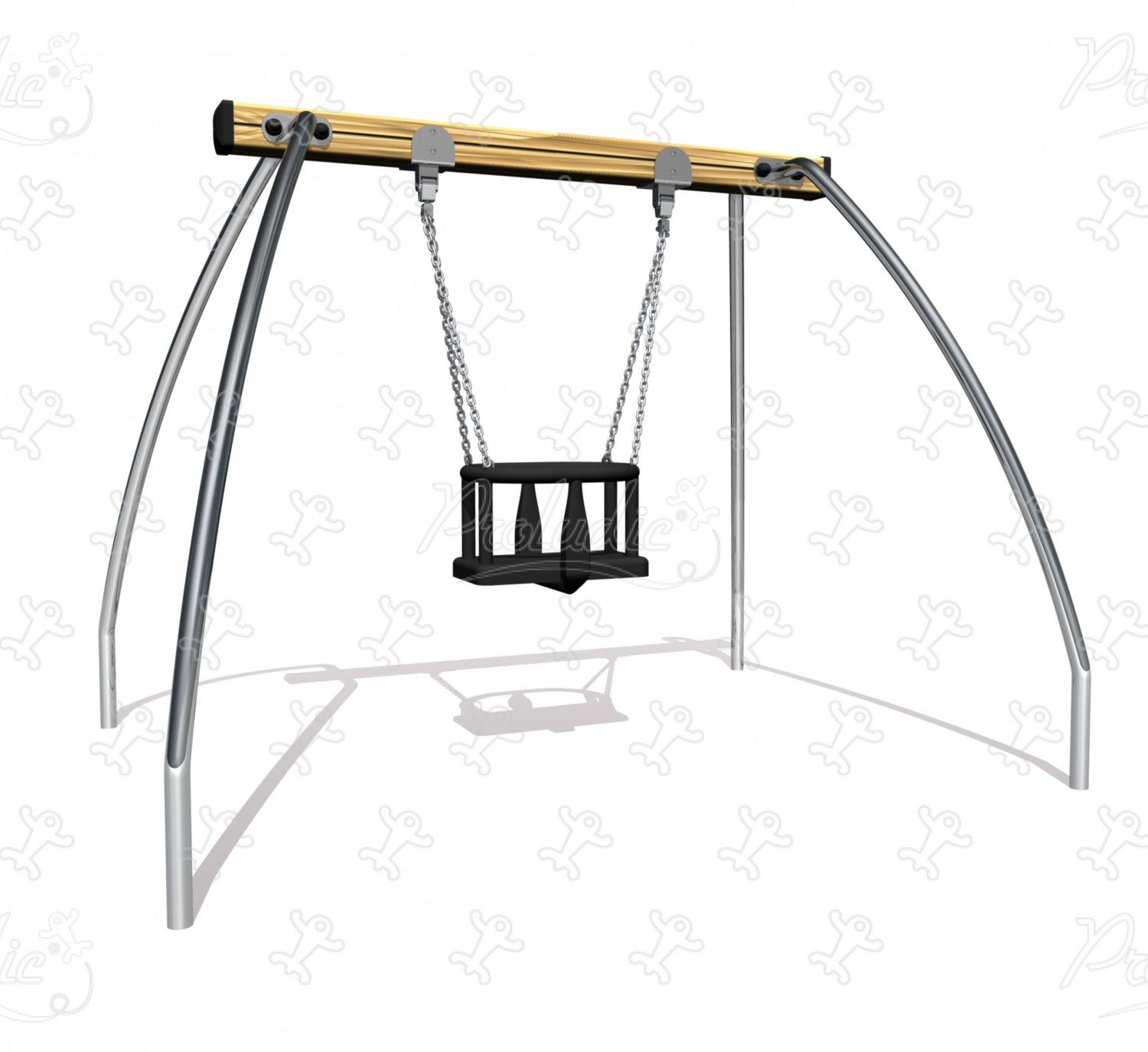

Swings - 1 cradle seat - J3960

We have created the reference J3960 in our "Swings" range. This module is accessible from 1 year. It can accommodate up to 1 user.

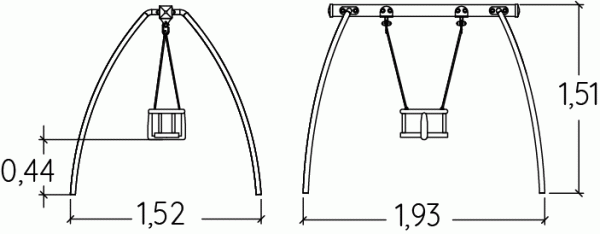

The size of the module is: 1.93 m length, 1.52 m width, 1.51 m. high. The free fall height (FFH) is 0.90 m.

2 play functions

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Specifications

Age range:	1 - 3
Number of users:	1 user
FFH :	0.90 m
Size:	1.93 x 1.52 x 1.51 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.20 m3

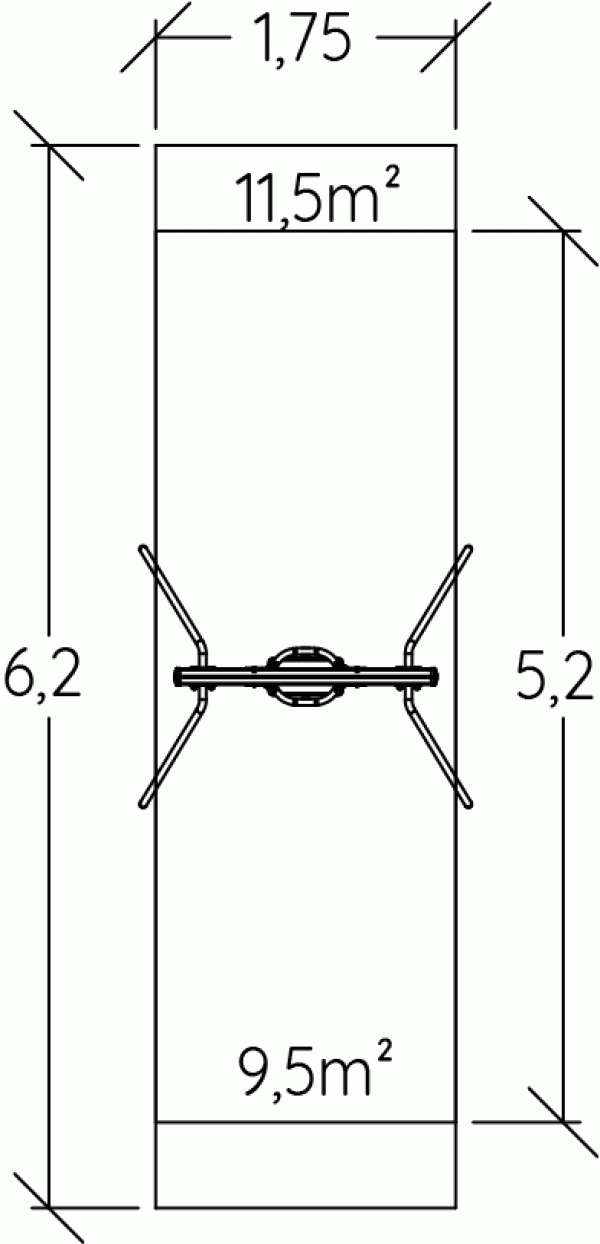

Surface:	9.50 m2
Total weight:	39.66 kg
Weight of the heaviest element:	10.07 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

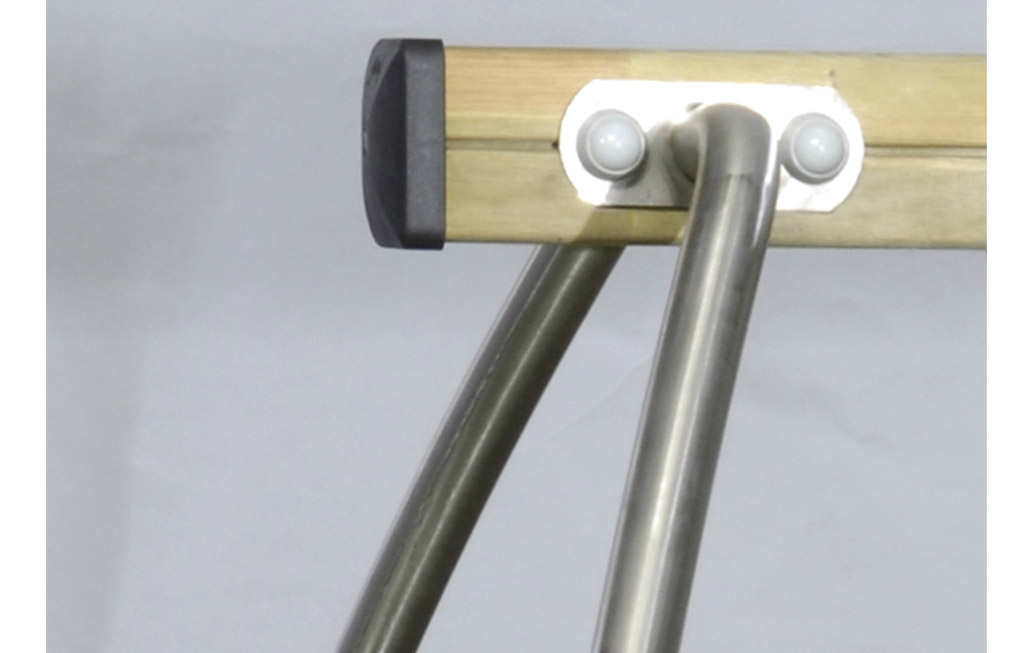

The horizontal beam of the swing is made of laminated timber, which has not been treated with chrome or arsenic. It is protected from wear and tear caused by fungi and insects.... Splinter-free, the laminate provides great strength and dimensional stability. Read more
