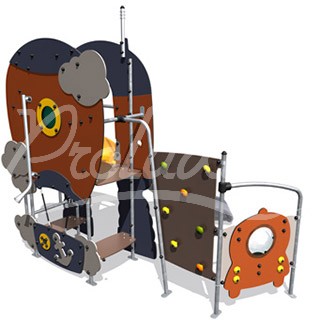

Metropolis - Rocketship - J4062

We have created the reference J4062 in our "Metropolis" range. This module is accessible from 2 years. It can accommodate up to 16 users.

The size of the module is: 4.02 m length, 2.86 m width, 3.07 m. high. The free fall height (FFH) is 1.80 m.

14 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x3

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x2

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	2+
Number of users:	16 users
FFH :	1.80 m

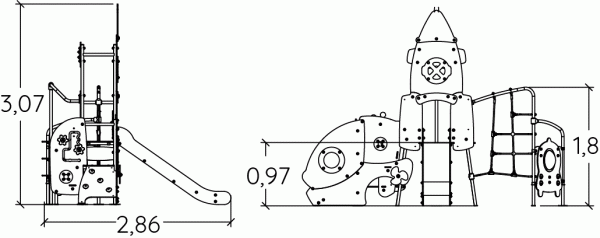

Size:	4.02 x 2.86 x 3.07 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.40 m3
Surface:	32.50 m2
Total weight:	254.99 kg
Weight of the heaviest element:	14.75 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The steps, the climbing wall and the inclined element are made from a 12.5mm thick, textured, non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
