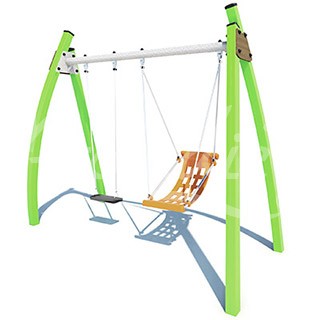

Swings - 1 flat seat, 1 boat seat - J436-C®

We have created the reference J436-C® in our "Swings" range. This module is accessible from 2 years. It can accommodate up to 2 users.

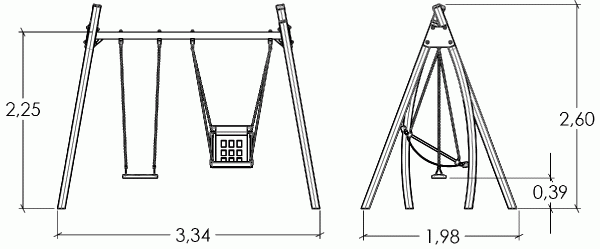

The size of the module is: 3.34 m length, 1.98 m width, 2.60 m. high. The free fall height (FFH) is 1.37 m.

Other finishes available

J436®

5 play functions

Swinging x2

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x2

Resting allows the child to recover from their exertions, and also improve their concentration.

Specifications

Age range:	2+
Number of users:	2 users
FFH :	1.37 m
Size:	3.34 x 1.98 x 2.60 m

Equipment installation

Number of installers:	2
Installation time:	01:30:00
Concrete volume:	0.11 m3

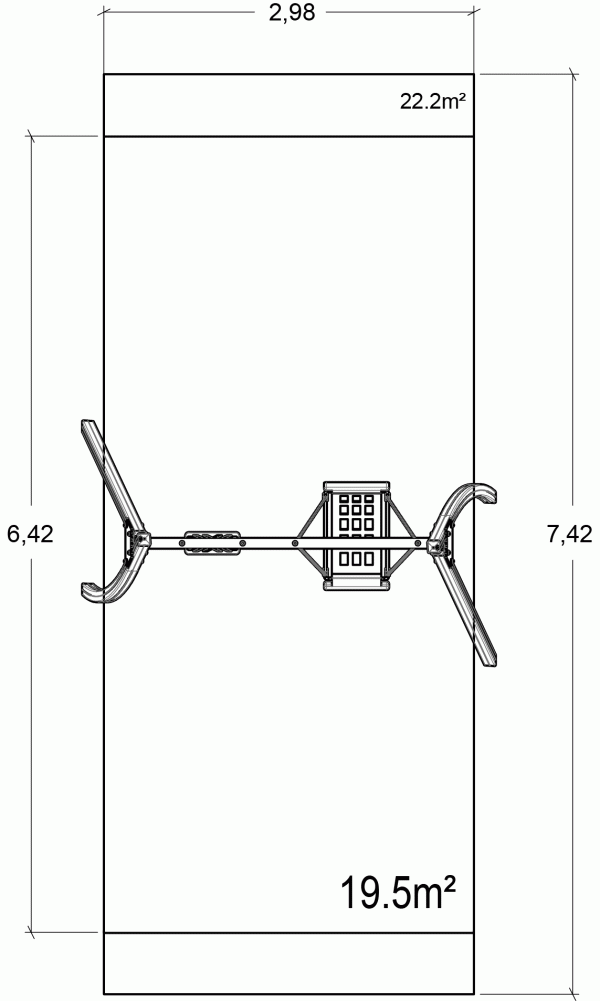

Surface:	19.50 m2
Total weight:	150.11 kg
Weight of the heaviest element:	28.50 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The horizontal beam is made of non-painted galvanised steel.

The swing bearings are made of stainless steel.

The swing seats are made of shock absorbing moulded honeycomb rubber. The swing chains are made of stainless steel. The seat fixing brackets are made of 10mm... stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. Read more

The swing seat is made of a stainless steel frame with a rubber seat pad incorporating a stainless steel cable. The swing chains are made of stainless steel.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
