Swings - Pod Swing - J441-G®

We have created the reference J441-G® in our "Swings" range. This module is accessible from 2 years. It can accommodate up to 5 users.

The size of the module is: 3.37 m length, 2.10 m width, 2.63 m. high. The free fall height (FFH) is 1.55 m.

Other finishes available

J441

3 play functions

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Specifications

Age range:	2+
Number of users:	5 users
FFH :	1.55 m
Size:	3.37 x 2.10 x 2.63 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.26 m3

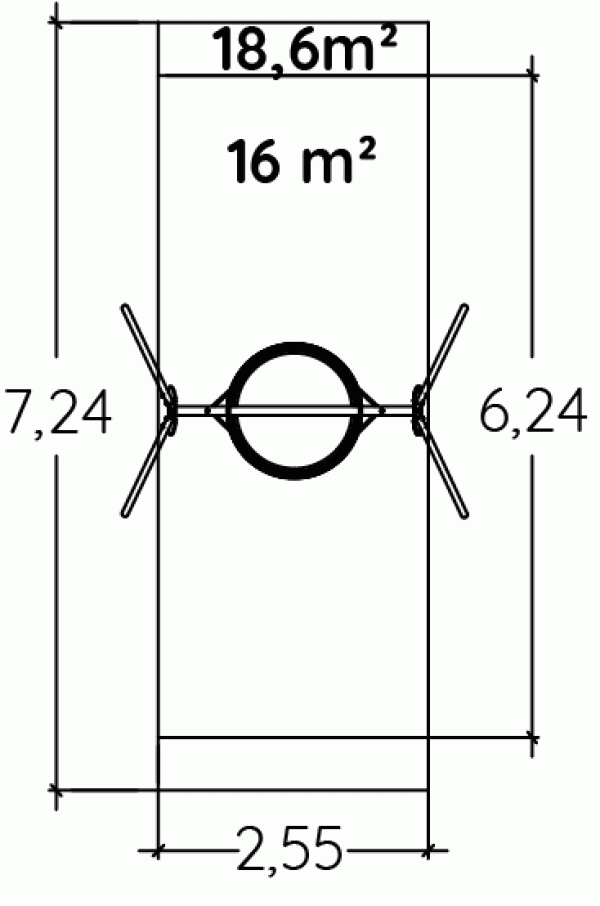

Surface:	16.00 m2
Total weight:	134.65 kg
Weight of the heaviest element:	43.18 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The horizontal beam is manufactured from 89mm diameter galvanised steel.

The support legs are made from 60mm galvanised steel.

The pod is made from a single piece of 30%-recycled rotomoulded polyethylene. It is fixed to a stainless steel frame that is fitted with buffers. The pod is... suspended from galvanised steel ropes covered by PVC. Read more

PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. The swing chains are... made of galvanised steel. Read more

The double joined swing mechanism is made of stainless steel. A safety chain provides additional support for the pod.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
