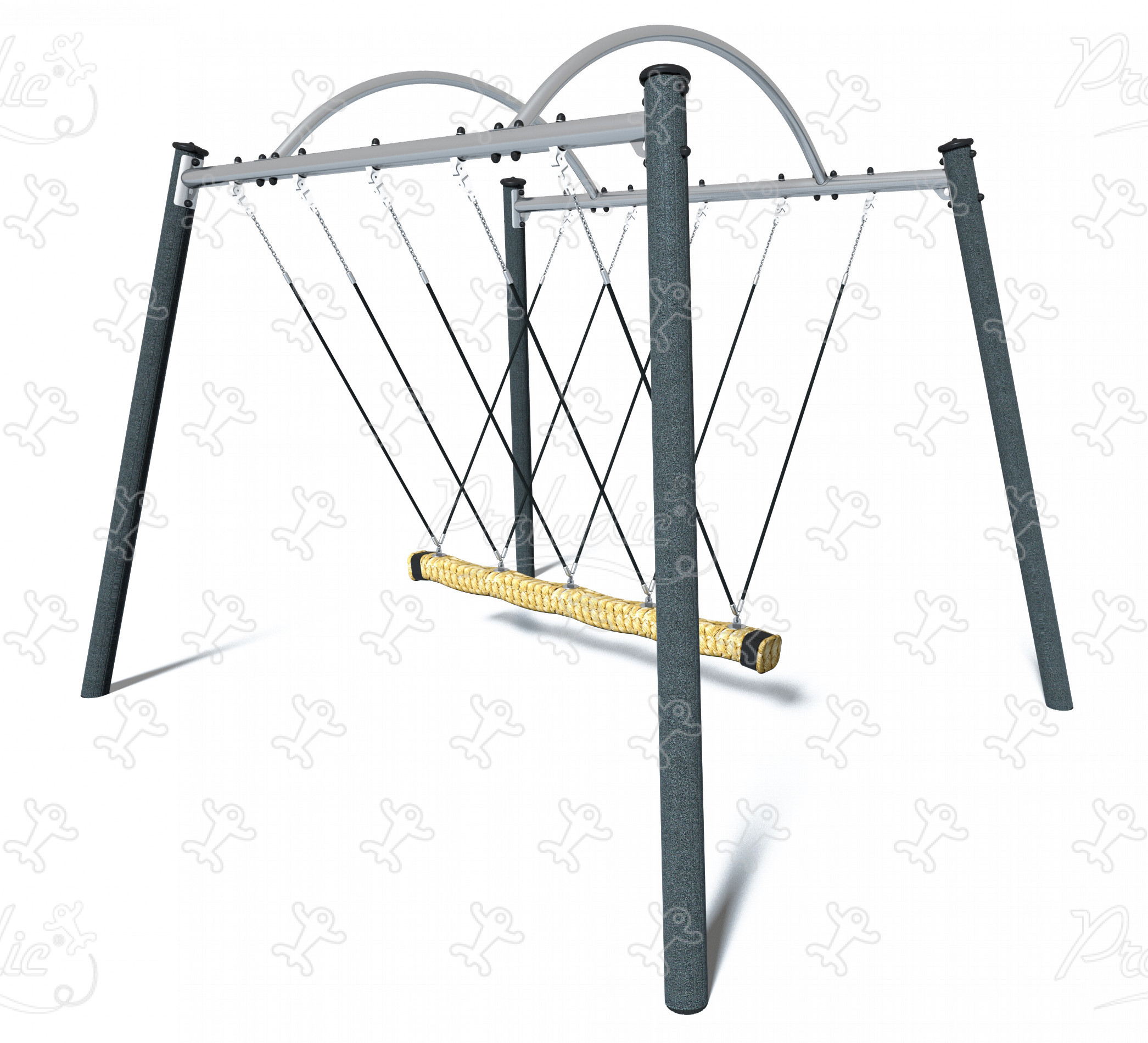

Swings - All For One - J442-M

We have created the reference J442-M in our "Swings" range. This module is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 3.06 m length, 3.93 m width, 3.01 m. high. The free fall height (FFH) is 1.50 m.

Other finishes available

J442

3 play functions

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range:	2+
Number of users:	4 users
FFH :	1.50 m
Size:	3.06 x 3.93 x 3.01 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.30 m3
Surface:	15.50 m2
Total weight:	115.90 kg
Weight of the heaviest element:	19.90 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The seat is made of polypropylene rope. It is fixed to a stainless-steel frame, suspended from galvanised steel ropes covered in polyester, and extended with a... galvanised steel chain. Read more

The horizontal beam is made of non-painted galvanised steel.

The tubes are made of 60mm diameter steel.

The swing bearings are made of stainless steel.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
