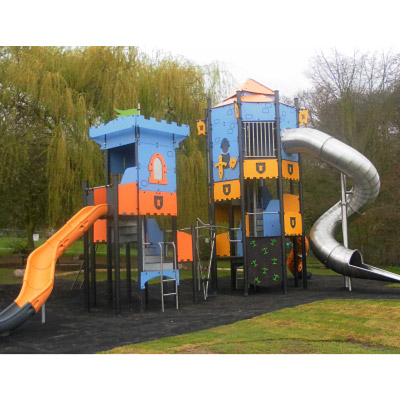

Medieval - Double Tower - J4702

We have created the reference J4702 in our "Medieval" range. This module is accessible from 3 years. It can accommodate up to 40 users.

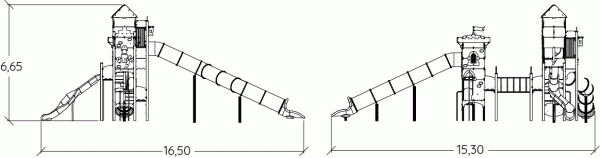

The size of the module is: 16.51 m length, 15.29 m width, 6.65 m. high. The free fall height (FFH) is 2.37 m.

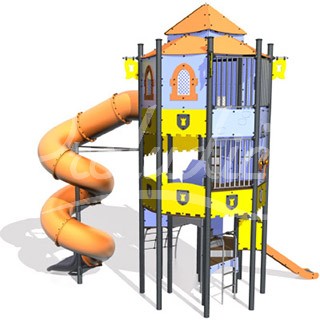

Other finishes available

J4702-P

27 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x4

Role play promotes the child's intellectual and social skills.

Sliding x4

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Hiding x2

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Taking shelter x3

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x5

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x3

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Specifications

Age range:	3+
Number of users:	40 users
FFH :	2.37 m
Size:	16.51 x 15.29 x 6.65 m

Equipment installation

Number of installers:	4
Concrete volume:	5.10 m3

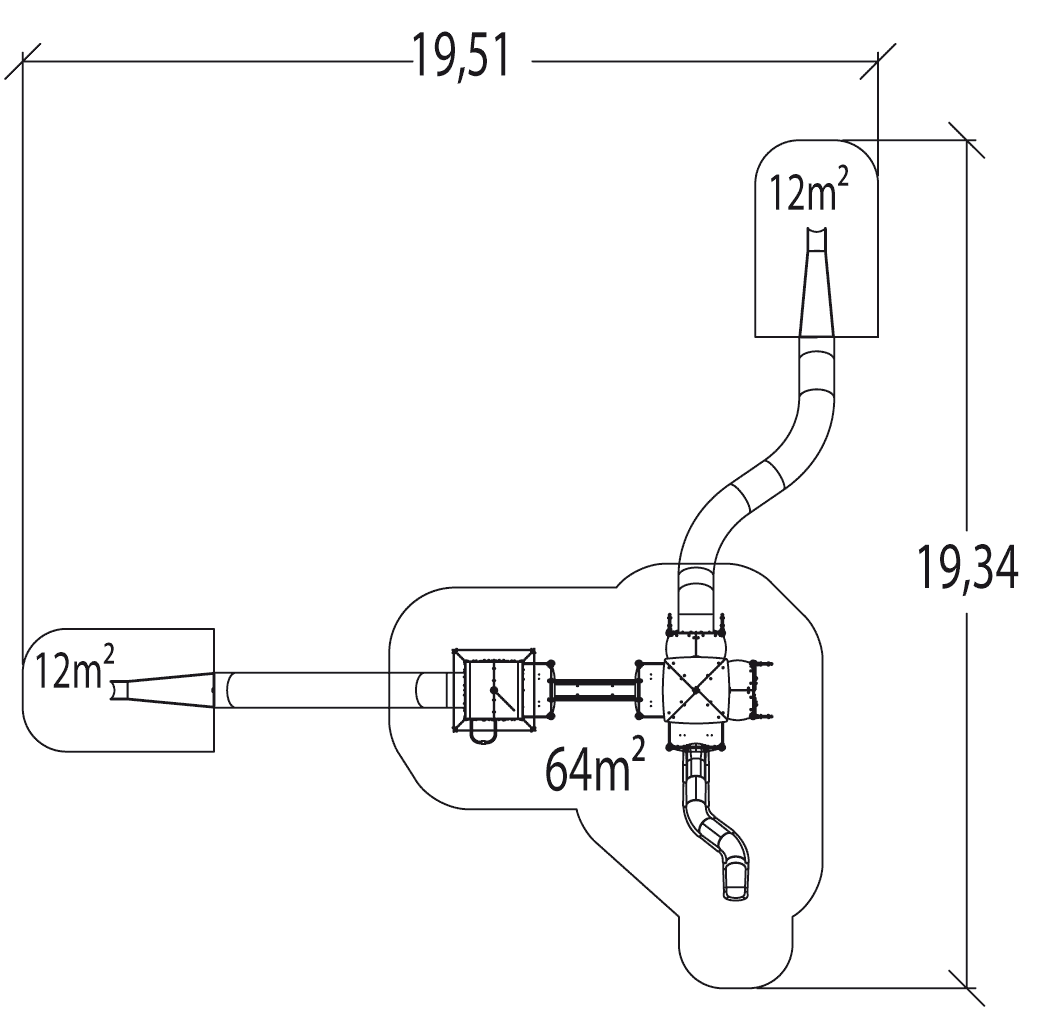

Surface:	96.00 m2
Total weight:	3826.82 kg
Weight of the heaviest element:	700.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95x95mm and 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
